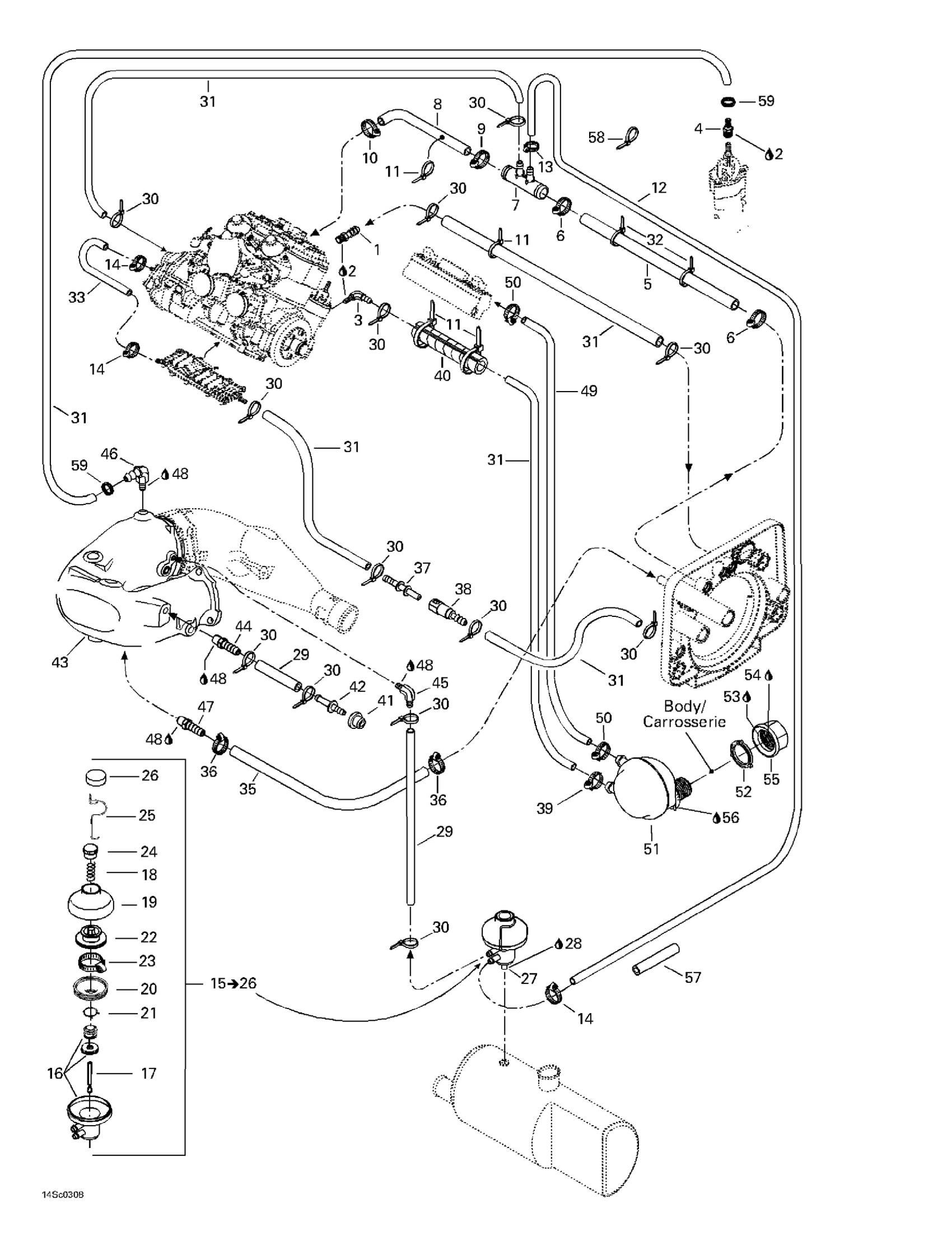

Sea-doo RX DI, 6122/6123, 2003 Cooling System Diagram

#

Description
Price

1

MALE CONNECTOR - Call your local BRP dealership

293710066

Unavailable

2

Was 293800013 Loctite 56765

219704454

$65.99

3

Elbow Fitting

293700016

Unavailable

4

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

5

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

6

Tridon Gear Clamp

293650051

$4.19

7

DOUBLE FITTING - Call your local BRP dealership

293710102

Unavailable

8

FORMED HOSE - Call your local BRP dealership

276000098

Unavailable

9

Tridon Gear Clamp

293650051

$4.19

10

Tridon Gear Clamp

293650019

$5.82

11

Tie Wrap 142 mm

293750002

$1.25

12

HOSE 5/16 - Call your local BRP dealership

275500548

Unavailable

13

Crimp Clamp

293650053

$3.09

14

Tridon Gear Clamp

293650171

$3.09

15

PRESSURE REGULATEUR - Call your local BRP dealership | Includes 23 to 34

274000898

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

FEEDING ROD - Call your local BRP dealership

274000423

Unavailable

18

SPRING 44 MM - Call your local BRP dealership

274000382

Unavailable

19

Valve Cover

420911552

$38.99

20

Bellow

420260721

$51.99

21

SPRING CLAMP - Call your local BRP dealership

420838190

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Rivalair Clamp

293650065

Unavailable

24

Adjuster Screw

420241221

$14.22

25

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

26

Cover Screw

274000903

Unavailable

27

MALE CONNECTOR - Call your local BRP dealership

293700033

Unavailable

28

Was 293800013 Loctite 56765

219704454

$65.99

29

Hose 6 Mm 15000Mm Long

219704360

$132.49

30

Tie Wrap 94 mm | 4X4

293750001

$1.03

31

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

32

Tie Wrap 368 mm

293750008

$1.04

33

Hose

275500567

Unavailable

34

Tridon Gear Clamp

293650171

$3.09

35

Was 276000001 Hose 12.5 mm

219704394

$51.99

36

Tridon Gear Clamp

293650172

$3.09

37

Quick Male Fitting

275500435

Unavailable

38

QUICK FEMALE FITTING - Call your local BRP dealership

275500436

Unavailable

39

Tridon Gear Clamp

293650170

$1.99

40

Tubing 10 MM 1000MM Long

219704407

$2.79

41

Grommet

293720029

$1.59

42

Straight Fitting

293710039

$7.59

43

Head Pipe | INCLUDES 1 TO 5

274000927

Unavailable

44

Male Connector

293710037

$10.49

45

Elbow Fitting 90°

293710048

Unavailable

46

Elbow Fitting

293700016

Unavailable

47

Male Connector | With Catalyst

293710021

$14.23

48

Was 293800013 Loctite 56765

219704454

$65.99

49

BOYAU 8MM. *HOSE-8MM. - Call your local BRP dealership

276000084

Unavailable

50

Tridon Gear Clamp

293650170

$1.99

51

Noise Reducer

270000569

Unavailable

52

SEAL WASHER - Call your local BRP dealership

293830027

Unavailable

53

Was 293800041 Loctite Primer 7649

219704458

$39.99

54

Loctite 243, 10 ml

293800060

$21.49

55

SPECIAL NUT M27 - Call your local BRP dealership

211100020

Unavailable

56

Silicone Sealant 51388, 300 ml

296000309

$36.99

57

Tubing 16 Mm 1000Mm Long

219704408

$7.49

58

Tie-Rap 180 mm

414115200

$0.11

59

Oetiker Clamp

293650042

$3.09
