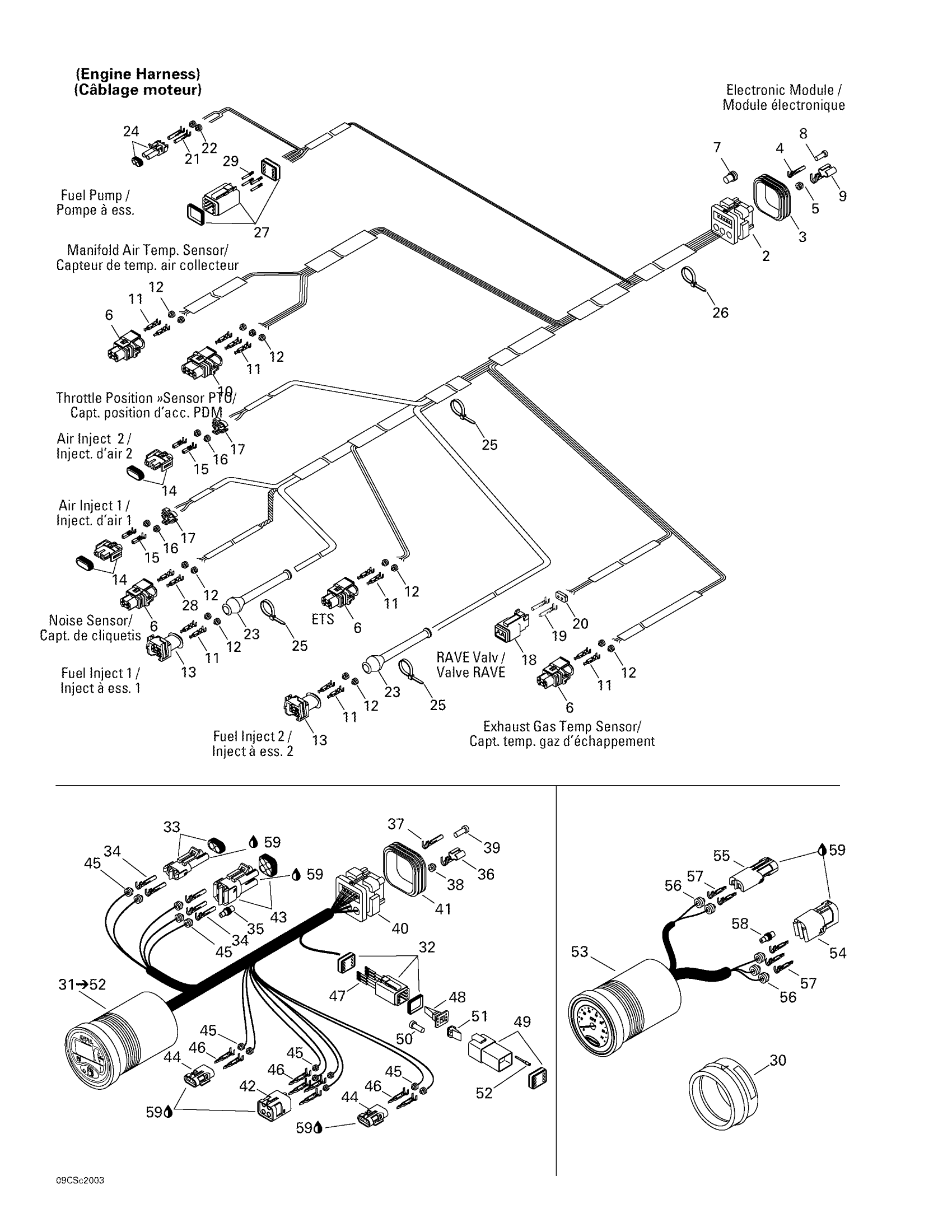

Sea-doo RX DI, 5646/5656, 2000 Electrical Harness And Accessories Diagram

#

Description
Price

1

Engine Harness | Includes 1 - 29.

278001511

Unavailable

2

MALE CONNECTOR, 26 CIRCUITS - Call your local BRP dealership

278001211

Unavailable

3

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

4

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

5

Seal

278001223

Unavailable

6

Male Housing, 2 Circuits

278001005

$19.49

7

SEAL - Call your local BRP dealership

409013900

Unavailable

8

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

9

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

10

Male Housing, 3 Circuits

278000997

$19.49

11

Female Terminal

278000998

$4.39

12

Wire Seal

278000999

$3.19

13

Male Connector, 2 Circuits

278001003

$46.49

14

MALE CONNECTOR, 2 CIRCUITS - Call your local BRP dealership

278001480

Unavailable

15

Female Terminal

278001481

$3.49

16

Seal

278001482

$3.19

17

LOCK, 2 CIRCUITS - Call your local BRP dealership

278001483

Unavailable

18

Female Connector, 2 Circuits

409207300

$9.85

19

Female Terminal

278000632

$2.09

20

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

21

Female Terminal

278000223

$3.19

22

Wire Seal

278000218

$4.39

23

RUBBER CAP - Call your local BRP dealership

278001484

Unavailable

24

Male Connector, 2 Circuits

278000220

$15.49

25

Tie Wrap 94 mm | 4X4

293750001

$1.03

26

Tie Wrap 142 mm

293750002

$1.25

27

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

28

FEMALE TERMINAL - Call your local BRP dealership

278001210

Unavailable

29

Female Terminal

278001114

$3.19

30

Gauge Support

293720047

Unavailable

31

LCD Info Gauge | Includes 1 - 19.

278001561

Unavailable

32

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

33

Male Connector, 2 Circuits

278000220

$15.49

34

Female Terminal

278000223

$3.19

35

Wire Seal

278000216

$3.19

36

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

37

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

38

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

39

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

40

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

41

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

42

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

43

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

44

Female Housing, 2 Circuits

278000217

$9.59

45

Wire Seal

278001065

$7.69

46

Male Terminal | XT Models

278000222

$3.19

47

Female Terminal

278000632

$2.09

48

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

49

Fuse Holder 8 Amp

278000137

Unavailable

50

Sealing Cap

293000052

$3.19

51

Female Lock, 6 Circuits

278000735

$3.19

52

Male Terminal

278000631

$4.39

53

Speedometer | Includes 22 - 27.

278001359

Unavailable

54

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

55

Female Housing, 2 Circuits

278000217

$9.59

56

Wire Seal

278001065

$7.69

57

Male Terminal | XT Models

278000222

$3.19

58

Wire Seal

278000216

$3.19

59

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
