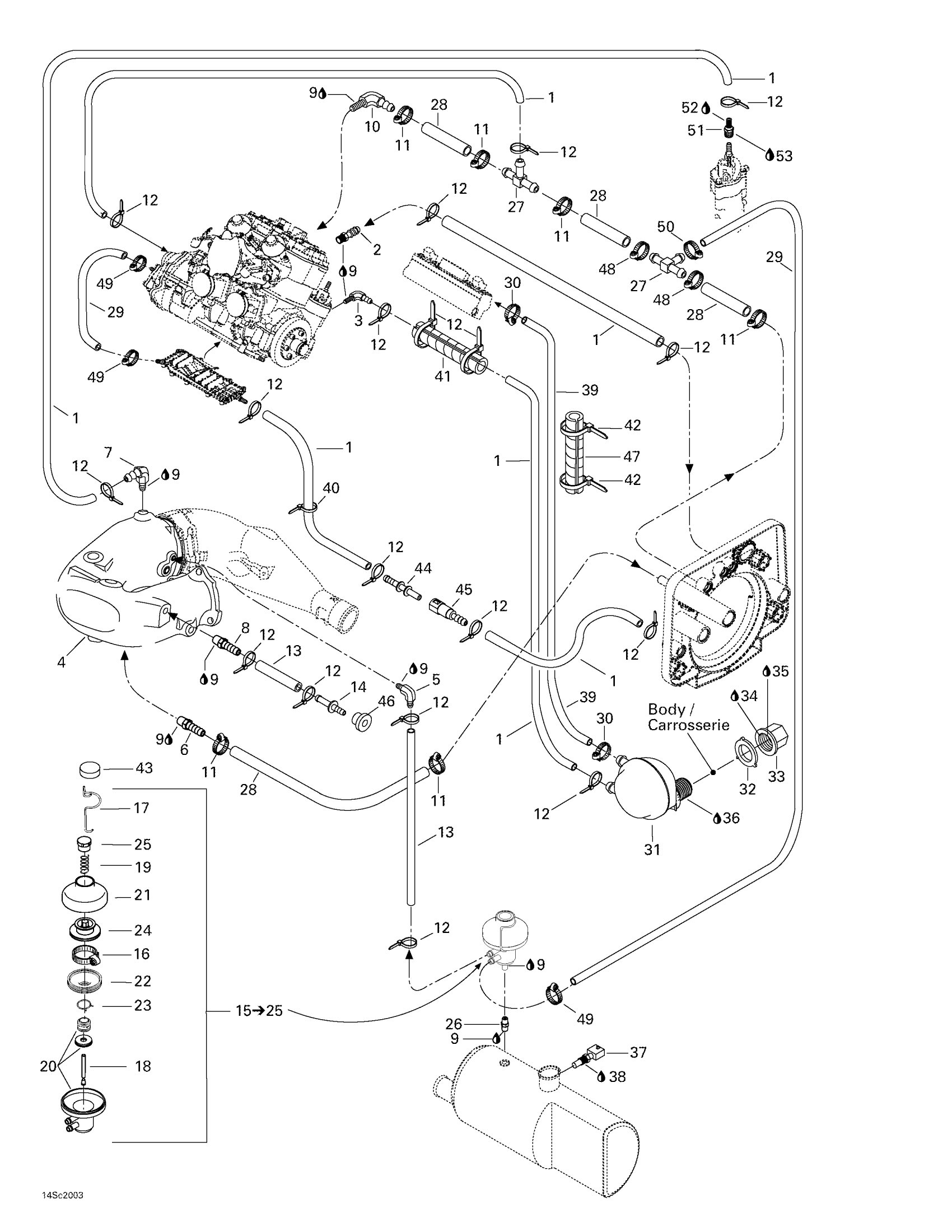

Sea-doo RX DI, 5646/5656, 2000 Cooling System Diagram

#

Description
Price

1

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

2

MALE CONNECTOR - Call your local BRP dealership

293710066

Unavailable

3

Elbow Fitting 90°

293700022

Unavailable

4

Head Pipe Ass'y | Includes 4 - 8.

274000767

Unavailable

5

Elbow Fitting 90°

293710048

Unavailable

6

Male Connector | With Catalyst

293710021

$14.23

7

Elbow Fitting

293700016

Unavailable

8

Male Connector

293710037

$10.49

9

Was 293800013 Loctite 56765

219704454

$65.99

10

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

11

Tridon Gear Clamp

293650172

$3.09

12

Tie Wrap 94 mm | 4X4

293750001

$1.03

13

Hose 6 Mm 15000Mm Long

219704360

$132.49

14

Straight Fitting

293710039

$7.59

15

Pressure Regulator Ass'y | Includes 11 - 21.

274000865

Unavailable

16

Rivalair Clamp

293650065

Unavailable

17

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

18

FEEDING ROD - Call your local BRP dealership

274000423

Unavailable

19

SPRING 44 MM - Call your local BRP dealership

274000382

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Valve Cover

420911552

$38.99

22

Bellow

420260721

$51.99

23

SPRING CLAMP - Call your local BRP dealership

420838190

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Adjuster Screw

420241221

$14.22

26

Male Fitting

293700040

Unavailable

27

T-Fitting

293710116

$17.62

28

Was 276000001 Hose 12.5 mm

219704394

$51.99

29

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

30

Tridon Gear Clamp

293650170

$1.99

31

Noise Reducer

270000482

Unavailable

32

SEAL WASHER - Call your local BRP dealership

293830027

Unavailable

33

SPECIAL NUT M27 - Call your local BRP dealership

211100020

Unavailable

34

Was 293800041 Loctite Primer 7649

219704458

$39.99

35

Loctite 243, 10 ml

293800060

$21.49

36

Silicone Sealant 51388, 300 ml

296000309

$36.99

37

Temperature Sensor

278002895

$39.99

38

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

39

BOYAU 8MM. *HOSE-8MM. - Call your local BRP dealership

276000084

Unavailable

40

Tie-Rap 180 mm

414115200

$0.11

41

Tubing 10 MM 1000MM Long

219704407

$2.79

42

Tie Wrap 142 mm

293750002

$1.25

43

Screw Cover

274000760

Unavailable

44

Quick Male Fitting

275500435

Unavailable

45

QUICK FEMALE FITTING - Call your local BRP dealership

275500436

Unavailable

46

Grommet

293720029

$1.59

47

Tubing 16 Mm 1000Mm Long

219704408

$7.49

48

Oetiker Clamp

293650012

$7.49

49

Tridon Gear Clamp

293650171

$3.09

50

Crimp Clamp

293650053

$3.09

51

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

52

Was 293800013 Loctite 56765

219704454

$65.99

53

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
