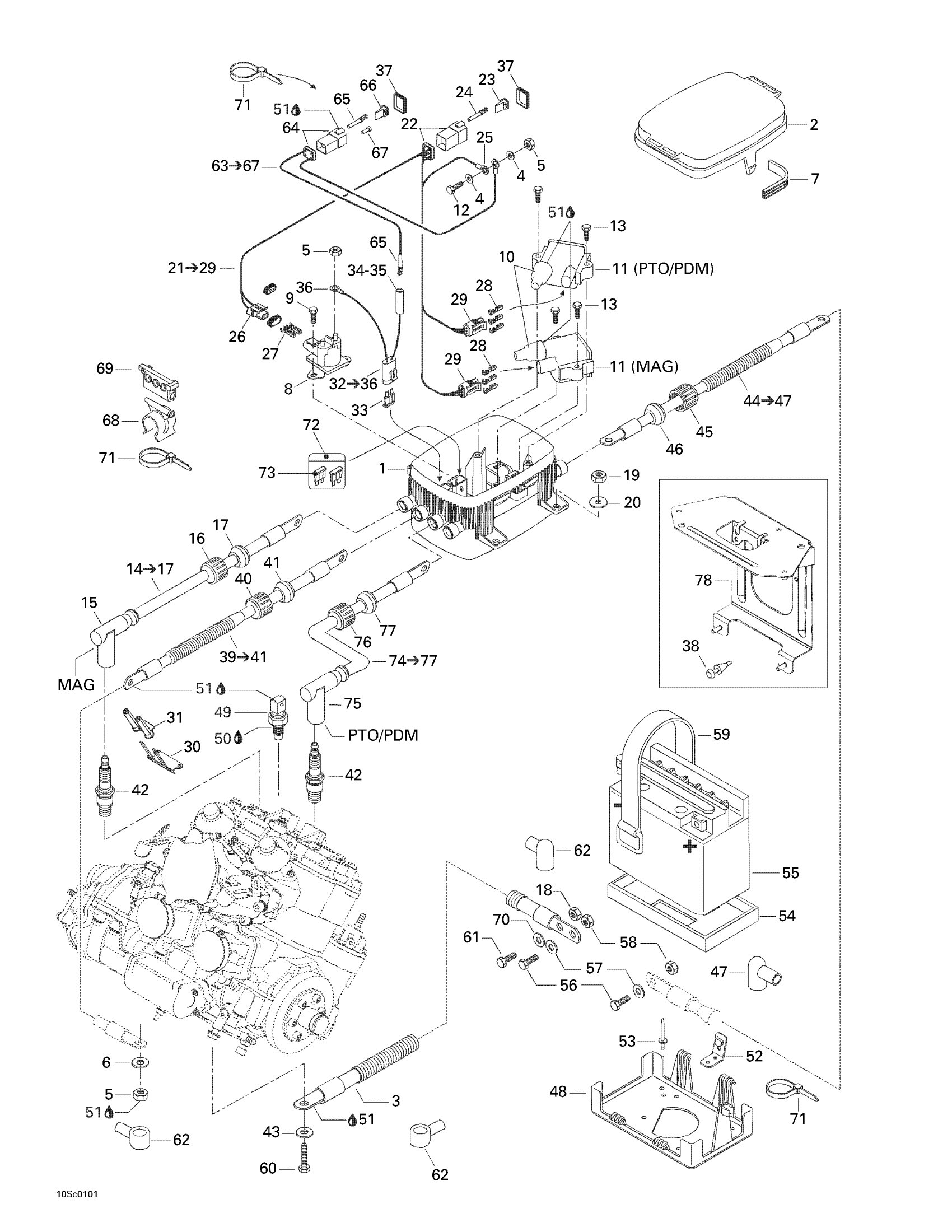

Sea-doo RX DI, 5534/5535/5536/5537, 2001 Rear Electrical Box Diagram

#

Description
Price

1

Electric box base (5591/5592)

278001504

Unavailable

2

ELECTRIC BOX COVER - Call your local BRP dealership

278001433

Unavailable

3

Ground Cable, Black

278001462

Unavailable

4

Flat Washer 6 mm

234062410

$0.73

5

Hex. Elastic Stop Nut M6

232561600

$1.06

6

Stainless Flat Washer M6

234061600

$0.28

7

GASKET - Call your local BRP dealership

278001173

Unavailable

8

Starter Relay

278003012

$40.27

9

Hex. Flange Screw M6 X 10

210261040

$1.43

10

PROTECTOR CAP - Call your local BRP dealership

278001470

Unavailable

11

IGNITION COIL - Call your local BRP dealership

278001451

Unavailable

12

Hex. Screw M6 X 16

207161660

$1.40

13

SCREW-TAPP.HEX.ISO.1479F - Call your local BRP dealership

209463840

Unavailable

14

COIL CABLE, 735 MM - Call your local BRP dealership | Includes 31 to 33

278001454

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Electric Wire Cap

278000100

Unavailable

17

Grommet

278000682

Unavailable

18

Hex. Elastic Stop Nut M6

232561600

$1.06

19

Hex. Elastic Stop Nut M6

232561600

$1.06

20

Flat Washer M6, Stainless

234062600

$0.73

21

Box Harness | Includes 17 to 25

278001458

Unavailable

22

Male Terminal Housing, 6 Circuits

710001539

$17.88

23

Female Lock, 6 Circuits

278000735

$2.93

24

Male Terminal

278000631

$4.00

25

Open Barrel Terminal

278001392

$4.00

26

Male Connector, 2 Circuits

278001113

$14.52

27

Female Terminal

278001114

$2.93

28

FEMALE TERMINAL - Call your local BRP dealership

278001468

Unavailable

29

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278001467

Unavailable

30

GROUND PLATE - Call your local BRP dealership

278001662

Unavailable

31

INSULATOR - Call your local BRP dealership

278001512

Unavailable

32

Fuse Harness, 30 Amperes | Includes 37 to 41

278001453

Unavailable

33

Fuse, 30 Amperes

410917200

$3.12

34

Deutsch Joint Housing

515175259

Unavailable

35

FEMALE TERMINAL - Call your local BRP dealership

515175260

Unavailable

36

Open Barrel Terminal

278001392

$4.00

37

Gasket

293200030

Unavailable

38

Rubber Bumper

293830005

$6.12

39

Starter Positive Cable, Red | Includes 34,35,75,89,90

278001091

Unavailable

40

Electric Wire Cap

278000100

Unavailable

41

GROMMET - Call your local BRP dealership

278000098

Unavailable

42

Spark Plug NGK Zfr4f-11

278001650

$4.63

43

Flat Washer 10 mm, Stainless

234001600

$1.04

44

Battery Cable (Red) | Includes 62 - 65.

278001522

Unavailable

45

Electric Wire Cap

278000100

Unavailable

46

GROMMET - Call your local BRP dealership

278000098

Unavailable

47

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

48

Battery Support

278001430

Unavailable

49

Temperature Sensor

278002895

$36.54

50

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

51

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

52

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

53

Avdel Rivet 3/16"

293150037

$0.54

54

Battery Lower Pad

278001234

Unavailable

55

Battery 19A | Includes 5 to 8

278001756

$144.75

56

Hex. Screw M6 X 16

207161644

$0.70

57

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

58

Hex. Nut M6

232061414

$0.51

59

Retainer Strap

293850097

$10.63

60

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.78

61

Hex. Cap Screw M6 X 12

207161260

$1.21

62

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

63

ELECTRIC BOX HARNESS ASS'Y - Call your local BRP dealership | Includes 26 to 30

278001494

Unavailable

64

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

65

MALE TERMINAL - Call your local BRP dealership

515175261

Unavailable

66

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

67

Sealing Cap

293000052

$2.93

68

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

69

Wire Support

278001597

Unavailable

70

Stainless Flat Washer M6

234061600

$0.28

71

Tie Wrap 142 mm

293750002

$1.01

72

Not Available As Spare Part - Friction Washer

Unavailable

73

Fuse, 25 Amperes

278001443

$3.16

Fuse, 15 Amperes

278000343

$3.12

74

Coil Cable, 560 mm | Includes 49 to 51

278001521

Unavailable

75

Not Available As Spare Part - Friction Washer

Unavailable

76

Electric Wire Cap

278000100

Unavailable

77

Grommet

278000682

Unavailable

78

BOX SUPPORT - Call your local BRP dealership

278001615

Unavailable
