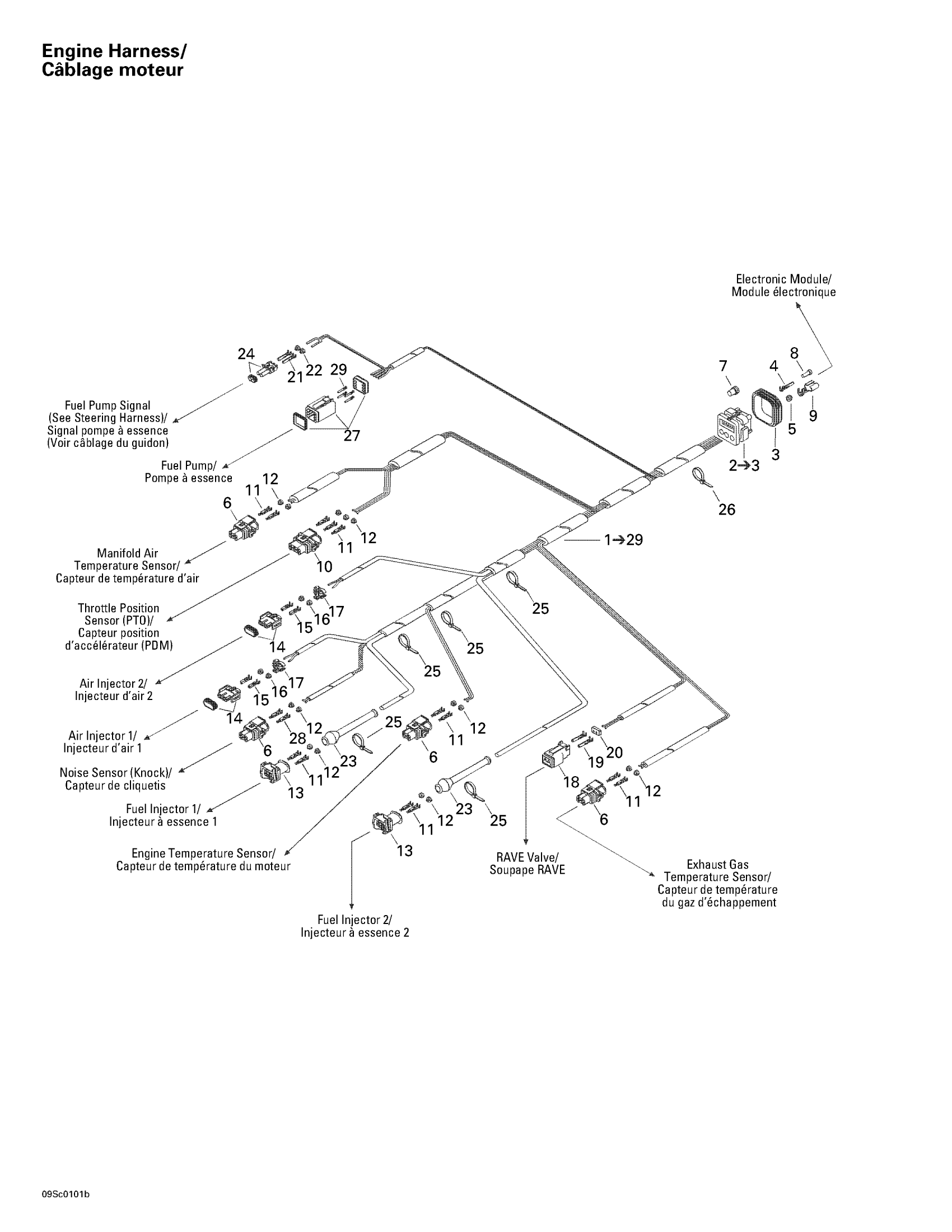

Sea-doo RX DI, 5534/5535/5536/5537, 2001 Engine Harness Diagram

#

Description
Price

1

Engine Harness | Includes 1 - 29.

278001511

Unavailable

2

MALE CONNECTOR, 26 CIRCUITS - Call your local BRP dealership

278001211

Unavailable

3

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

4

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

5

Seal

278001223

Unavailable

6

Male Housing, 2 Circuits

278001005

$19.49

7

SEAL - Call your local BRP dealership

409013900

Unavailable

8

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

9

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

10

Male Housing, 3 Circuits

278000997

$19.49

11

Female Terminal

278000998

$4.39

12

Wire Seal

278000999

$3.19

13

Male Connector, 2 Circuits

278001003

$46.49

14

MALE CONNECTOR, 2 CIRCUITS - Call your local BRP dealership

278001480

Unavailable

15

Female Terminal

278001481

$3.49

16

Seal

278001482

$3.19

17

LOCK, 2 CIRCUITS - Call your local BRP dealership

278001483

Unavailable

18

Female Connector, 2 Circuits

409207300

$9.85

19

Female Terminal

278000632

$2.09

20

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

21

Female Terminal

278000223

$3.19

22

Wire Seal

278000218

$4.39

23

RUBBER CAP - Call your local BRP dealership

278001484

Unavailable

24

Male Connector, 2 Circuits

278000220

$15.49

25

Tie Wrap 94 mm | 4X4

293750001

$1.03

26

Tie Wrap 142 mm

293750002

$1.25

27

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

28

FEMALE TERMINAL - Call your local BRP dealership

278001210

Unavailable

29

Female Terminal

278001114

$3.19
