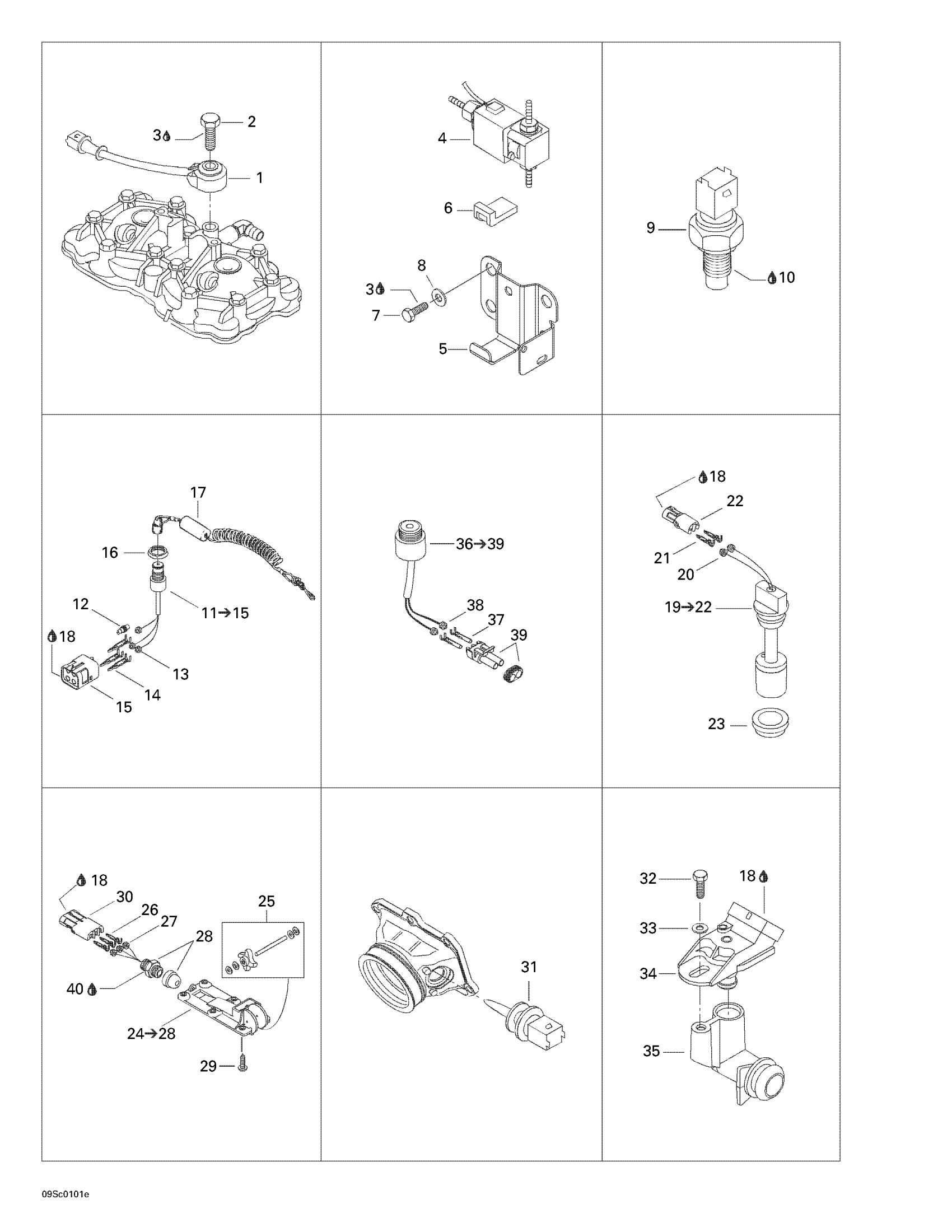

Sea-doo RX DI, 5534/5535/5536/5537, 2001 10- Electrical Accessories 2 Diagram

#

Description
Price

1

Noise Sensor

270000484

$82.99

2

Hex. Screw M8 X 30

207183060

$1.58

3

Loctite 243, 10 ml

293800060

$21.49

4

SOLENOIDE VALVE - Call your local BRP dealership

270600028

Unavailable

5

Relay Support

291001438

Unavailable

6

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

7

HEX. SCREW M3 X 08 - Call your local BRP dealership

207130860

Unavailable

8

Flat Washer M3, Stainless

234032600

$0.55

9

Temperature Sensor

278002895

$39.99

10

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

11

Safety Switch | Includes 15 - 19.

278000977

Unavailable

12

Wire Seal

278000216

$3.19

13

Wire Seal

278000218

$4.39

14

Male Terminal | XT Models

278000222

$3.19

15

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

16

Safety Nut (DESS Switch)

278002963

$3.28

17

Safety Lanyard, Learning Key

278002203

$56.99

18

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

19

OIL SENSOR - Call your local BRP dealership | Includes 18 to 22

278001515

Unavailable

20

Wire Seal

278000218

$4.39

21

Male Terminal | XT Models

278000222

$3.19

22

Female Housing, 2 Circuits

278000217

$9.59

23

Grommet

293720008

$14.75

24

Speed Sensor | Includes 26 to 30 / LE

278001595

Unavailable

25

Paddle Wheel Kit

295500108

Unavailable

26

Male Terminal | XT Models

278000222

$3.19

27

Wire Seal

278000218

$4.39

28

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

29

Phillips Screw M5 x 12

250000319

$1.39

30

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

31

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

32

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

33

Flat Washer | XT

211200035

$0.55

34

Pressure Sensor (5591/5592)

270600001

Unavailable

35

VALVE ADAPTOR - Call your local BRP dealership

270600019

Unavailable

36

Buzzer Ass'y | Includes 11 - 14.

278000978

Unavailable

37

Female Terminal

278000223

$3.19

38

Wire Seal

278000218

$4.39

39

Male Connector, 2 Circuits

278000220

$15.49

40

Was 293800013 Loctite 56765

219704454

$65.99
