Partiron

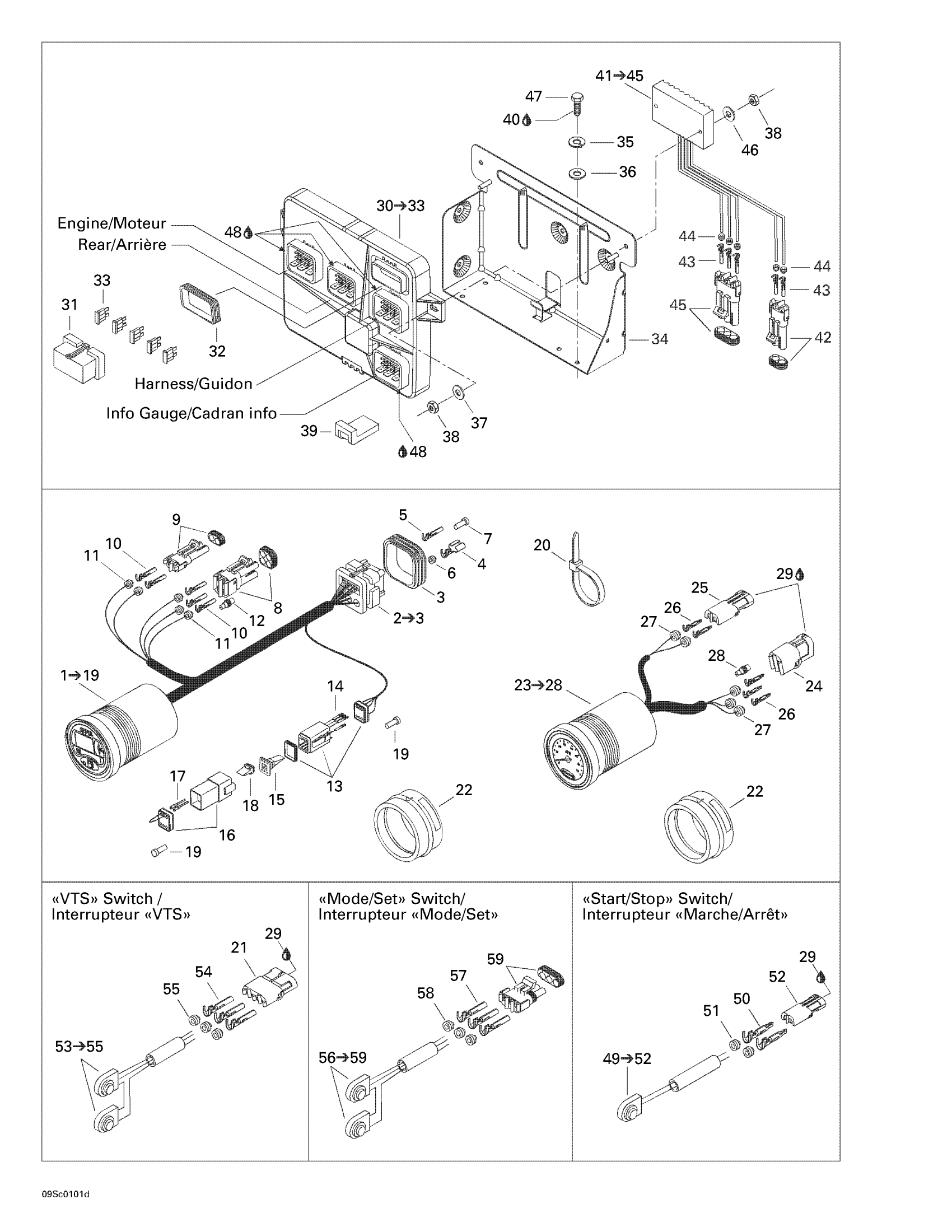

Sea-doo RX DI, 5534/5535/5536/5537, 2001 Electrical Accessories 1 Diagram

#

Description
Price

1

LCD Info Gauge | Includes 1 - 19.

278001561

Unavailable

2

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

3

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

4

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

5

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

6

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

7

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

8

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

9

Male Connector, 2 Circuits

278000220

$11.02

10

Female Terminal

278000223

$2.55

11

Wire Seal

278001065

$6.03

12

Wire Seal

278000216

$2.55

13

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

14

Female Terminal

278000632

$1.69

15

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

16

Male Terminal Housing, 6 Circuits

710001539

$15.57

17

Male Terminal

278000631

$4.12

18

Female Lock, 6 Circuits

278000735

$3.02

19

Sealing Cap

293000052

$2.55

20

Tie-Rap 180 mm

414115200

$0.09

21

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

22

Gauge Support

293720047

Unavailable

23

Speedometer | Includes 22 - 27.

278001359

Unavailable

24

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

25

Female Housing, 2 Circuits

278000217

$7.59

26

Male Terminal | XT Models

278000222

$2.55

27

Wire Seal

278001065

$6.03

28

Wire Seal

278000216

$2.55

29

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

30

ELECTRONIC MODULE ASS'Y (5591/5592) - Call your local BRP dealership

278001695

Unavailable

31

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

32

Cover Seal

278001070

Unavailable

33

Fuse, 15 Amperes

278000343

$2.72

Fuse, 25 Amperes

278001443

$3.26

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

34

Module Support

278001516

Unavailable

35

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

36

Flat Washer 5 mm, Stainless

234052600

$0.64

37

Flat Washer M6, Stainless

234062600

$0.64

38

Hex. Elastic Stop Nut M6

232561600

$0.92

39

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

40

Loctite 271, 10 ml

293800005

$20.77

41

Rectifier Ass’Y | Includes 30 - 34.

278001554

Unavailable

42

Male Connector, 2 Circuits

278000220

$11.02

43

Female Terminal

409007300

$0.36

44

Wire Seal

278000218

$3.48

45

Male Housing, 3 Circuits

278000273

$7.59

46

Stainless Flat Washer M6

234061600

$0.25

47

Hex. Plastite Screw M4, 8 X 20

243042060

Unavailable

48

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

49

Ignition Switch Ass'y (Stop / Start) | Includes 27 - 30.

278001358

Unavailable

50

Male Terminal | XT Models

278000222

$2.55

51

Wire Seal

278000218

$3.48

52

Female Housing, 2 Circuits

278000217

$7.59

53

VTS Switch | Includes 53 - 55.

278001533

Unavailable

54

Male Terminal | XT Models

278000222

$2.55

55

Wire Seal

278000218

$3.48

56

Mode/Set Switch | Includes 1 - 3.

278001534

Unavailable

57

Female Terminal

278000223

$2.55

58

Wire Seal

278000218

$3.48

59

Male Housing, 3 Circuits

278000273

$7.59
