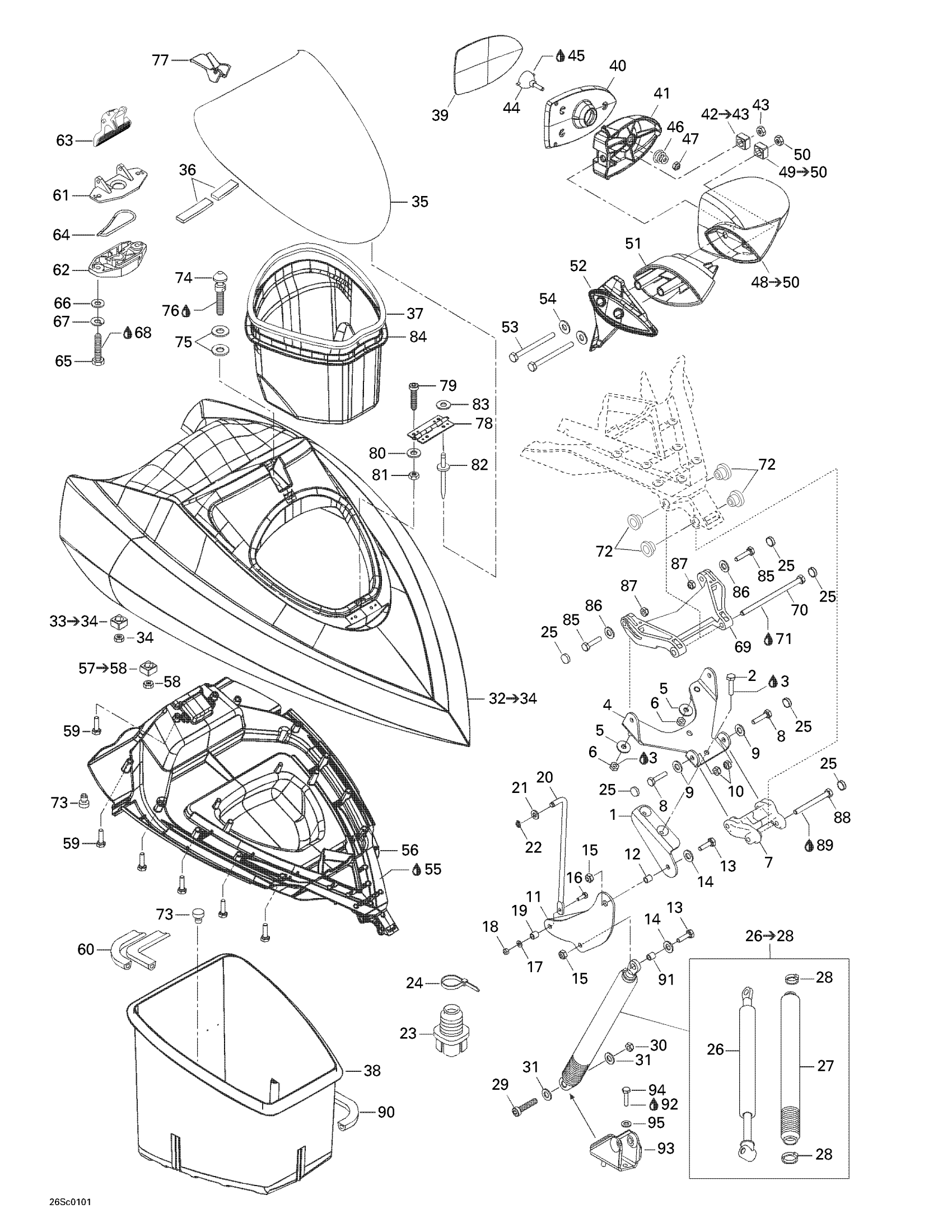

Sea-doo RX DI, 5534/5535/5536/5537, 2001 Front Storage Compartment Diagram

#

Description
Price

1

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

2

Hex. Forming Screw M6 X 20

207162060

$1.18

3

Loctite 243, 10 ml

293800060

$21.49

4

Pivot Support

269500708

Unavailable

5

Flat Washer M6, Stainless

234062600

$0.73

6

Hex. Elastic Stop Nut M6

232561600

$1.06

7

FRONT ARM - Call your local BRP dealership

269500704

Unavailable

8

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

9

Stainless Flat Washer M6

234061600

$0.28

10

Hex. Elastic Stop Nut M6

232561600

$1.06

11

Lever

269500840

Unavailable

12

Spacer

291000536

Unavailable

13

Hex. Forming Screw M6 X 20

207162060

$1.18

14

Flat Washer M6, Stainless

234062600

$0.73

15

Hex. Elastic Stop Nut M6

232561600

$1.06

16

Hex. Screw M4 X 16 | Europe

207141660

$1.40

17

Flat Washer 4 mm, Stainless

234041600

$1.04

18

Elastic Stop Nut M4

232541600

$1.06

19

Spacer

269500841

Unavailable

20

ROD - Call your local BRP dealership

269500842

Unavailable

21

Stainless Flat Washer M6

234061600

$0.28

22

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

23

Cable Grommet

293720063

Unavailable

24

Tie-Rap 180 mm

414115200

$0.10

25

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

26

GAZ SHOCK ASS'Y - Call your local BRP dealership | Includes 26 - 28.

269500843

Unavailable

27

Bellow

269500845

Unavailable

28

Tie Wrap 94 mm | 4X4

293750001

$0.96

29

Socket Head Screw M6 x 45 (Scotch Grip)

205564560

Unavailable

30

Nut M6 | Model-Australie, Brezil, Europe

232361600

$4.13

31

Flat Washer M6, Stainless

234062600

$0.73

32

Cover (Mazatlan Blue) | Includes 32 - 34. RX DI BLUE/BLEU.

269500891

Unavailable

Cover (Metallic Pewter) | RX DI 5536/5537.

269500903

Unavailable

33

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

34

Hex. Nut M6

232061600

$1.04

35

Access Cover (Mazatlan Blue) | RX DI 5534/5535.

269500902

Unavailable

Access Cover (Metallic Pewter) | RX DI 5536/5537.

269500700

Unavailable

36

Neoprene Seal (1PAC=3M)

219704364

$26.09

37

Was 293200017 Neoprene Seal

219704365

$135.79

38

STORAGE TRAY - Call your local BRP dealership

269500691

Unavailable

39

RH Mirror

269500687

Unavailable

LH MIRROR - Call your local BRP dealership

269500788

Unavailable

40

Frame Mirror

269500697

Unavailable

41

Housing Support | WAKE

269500807

Unavailable

42

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

43

Hex. Elastic Nut M8

232581600

$1.43

44

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

45

Synthetic Grease, 400 G

293550010

Unavailable

46

Mirror Spring

269500453

$9.15

47

Hex. Elastic Stop Nut M6

232561600

$1.06

48

RH Mirror Shell | BLUE (B-544) GTX 4-TEC 6125/6126.

269500893

Unavailable

RH Mirror Shell (Metallic Pewter) | RX DI 5536/5537.

269501023

Unavailable

LH mirror shell | BLUE (B-544)

269500895

Unavailable

LH Mirror Shell (Metallic Pewter) | RX DI 5536/5537.

269501026

Unavailable

49

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

50

Hex. Elastic Nut M8

232581600

$1.43

51

RH Mirror Support | BLUE (B-544) GTX 4-TEC 6125/6126.

269500897

Unavailable

RH Mirror Support (Metallic Pewter) | RX DI 5536/5537.

269500818

Unavailable

LH Mirror Support | BLUE (B-544)

269500899

Unavailable

LH Mirror Support (Metallic Pewter) | RX DI 5536/5537.

269500819

Unavailable

52

RH Spacer | LE

269500792

Unavailable

LH Spacer | LE

269500793

Unavailable

53

HEX. SCREW M8 X 120 - Call your local BRP dealership

230082060

Unavailable

54

Flat Washer 8 mm, Stainless

234082600

$2.27

55

Glue Tube, Loctite 454, 20 G

413708300

$58.18

56

Lower Strorage Cover

269500702

Unavailable

57

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

58

Hex. Nut M6

232061600

$1.04

59

Hex. Flange Screw K40 X 13

241141360

$0.64

60

Was 293200017 Neoprene Seal

219704365

$135.79

61

Latch Ass'y

269700109

$23.10

62

Latch Ass'y

269700109

$23.10

63

Latch Ass'y

269700109

$23.10

64

Latch Spring

269700017

$8.34

65

Hex. Screw M6 X 30

207063060

$1.73

66

Stainless Flat Washer M6

234061600

$0.28

67

Lock Washer Helical M6

234161601

$1.06

68

Loctite 243, 10 ml

293800060

$21.49

69

REAR ARM - Call your local BRP dealership

269500705

Unavailable

70

Hex. Screw M6 X 100

230060060

$6.99

71

Loctite 243, 10 ml

293800060

$21.49

72

Sleeve

269500706

$4.30

73

Rubber Bumper

293830005

$6.12

74

ANCHORING STUD - Call your local BRP dealership

291001242

Unavailable

75

Flat Washer M6, Stainless

234062600

$0.73

76

Loctite 243, 10 ml

293800060

$21.49

77

Latch

269501487

$14.90

78

HINGE - Call your local BRP dealership

269500338

Unavailable

79

Socket Head Screw M5 X 16

205451660

$1.04

80

Flat Washer 5 mm, Stainless

234052600

$0.73

81

Hex. Elastic Nut M5 | X

232551600

$1.04

82

Pop Rivet 3/16"

204000081

$1.31

83

Flat Washer 5 mm, Stainless

234052600

$0.73

84

GLOVES BOX - Call your local BRP dealership

269500339

Unavailable

85

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

86

Stainless Flat Washer M6

234061600

$0.28

87

Hex. Elastic Stop Nut M6

232561600

$1.06

88

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

Unavailable

89

Loctite 243, 10 ml

293800060

$21.49

90

Seal Tray 1000Mm Long

219704368

$12.30

91

Not Available As Spare Part - Friction Washer

Unavailable

92

Loctite 243, 10 ml

293800060

$21.49

93

Shock Support

291001013

Unavailable

94

Hex. Screw M6 X 25

207162560

$1.40

95

Lock Washer Helical M6

234161601

$1.06
