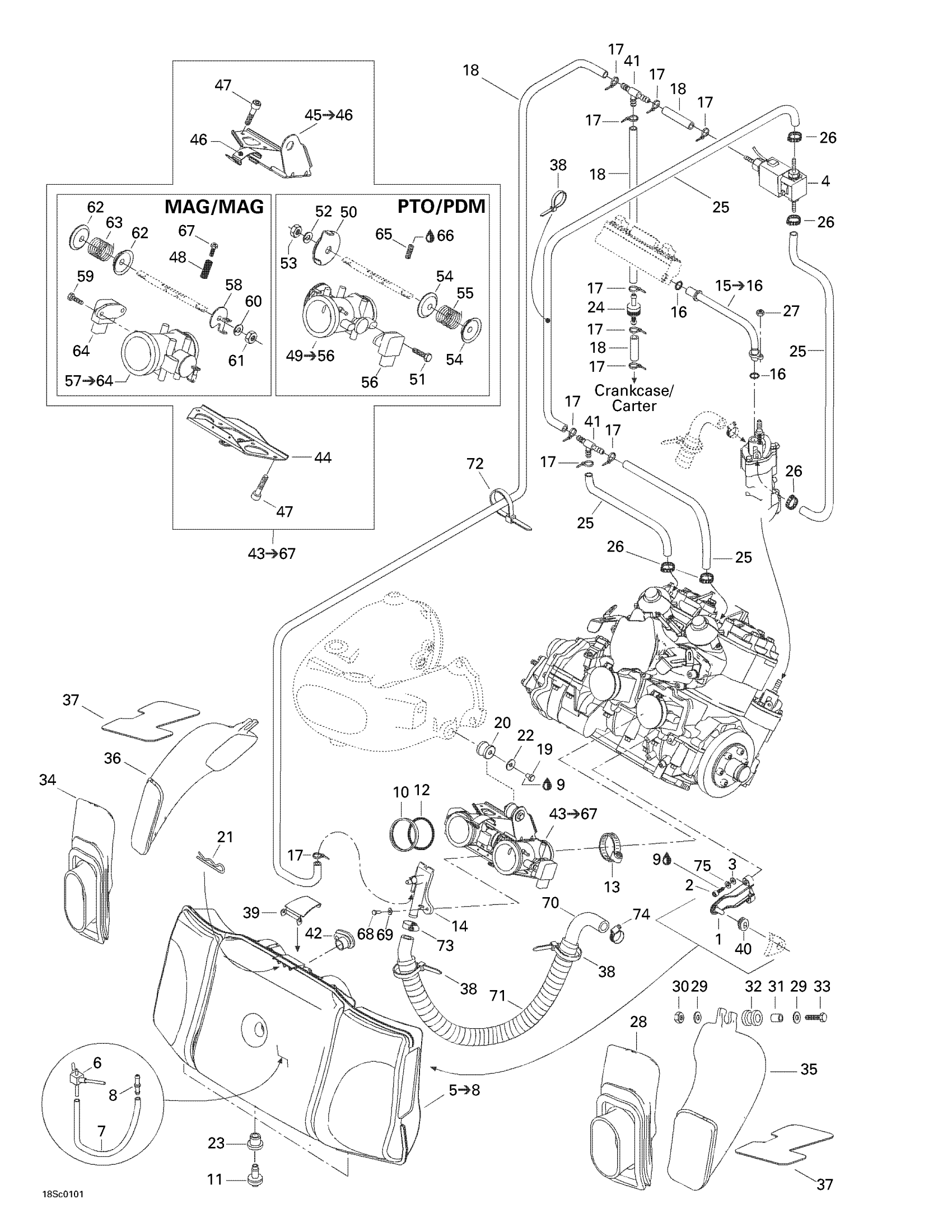

Sea-doo RX DI, 5534/5535/5536/5537, 2001 Air Intake System Diagram

#

Description
Price

1

Silencer Support

273000123

Unavailable

2

Socket Head Screw M6 X 35

205063560

$2.22

3

Stainless Flat Washer M6

234061600

$0.33

4

SOLENOIDE VALVE - Call your local BRP dealership

270600028

Unavailable

5

Air Silencer | Includes 5 - 8.

273000203

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

8

CONNECTOR - Call your local BRP dealership

293710107

$1.09

9

Loctite 243, 10 ml

293800060

$21.49

10

Gasket

293250122

$67.99

11

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

12

O-Ring

293250065

Unavailable

13

Norma Clamp

293650079

$11.60

14

AIR SILENCER ADAPTOR - Call your local BRP dealership

270600023

Unavailable

15

Pressure Hose | INCLUDES 72 TO 73

270600022

Unavailable

16

O-Ring

293300070

Unavailable

17

Tie Wrap 94 mm | 4X4

293750001

$1.03

18

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

19

HEX. SCREW M8 X 12 - Call your local BRP dealership

207181260

Unavailable

20

Rubber Isolator

707000949

$11.49

21

HAIR PIN - Call your local BRP dealership

250400015

Unavailable

22

Flat Washer 8 mm, Stainless

234082600

$2.43

23

GROMMET - Call your local BRP dealership

293720064

Unavailable

24

Check Valve

275500398

$10.99

25

HOSE 4.3 MM - Call your local BRP dealership

270000471

Unavailable

26

Oetiker Clamp

293650100

$3.38

27

Hex. Elastic Stop Nut M6

232561600

$1.15

28

INTAKE ADAPTOR, PTO - Call your local BRP dealership

273000163

Unavailable

29

Flat Washer M6, Stainless

234062600

$0.77

30

Hex. Elastic Stop Nut M6

232561600

$1.15

31

SPACER - Call your local BRP dealership

272000074

Unavailable

32

UPPER INSULATOR - Call your local BRP dealership

278001260

Unavailable

33

Hex. Screw M6 X 35

207063560

$2.22

34

INTAKE ADAPTOR, MAG - Call your local BRP dealership

273000164

Unavailable

35

HIGH AIR DUCT, PTO - Call your local BRP dealership

273000151

Unavailable

36

High Air Duct, Mag

273000150

Unavailable

37

PROTECTOR PAD - Call your local BRP dealership

273000165

Unavailable

38

Tie Wrap 142 mm

293750002

$1.25

39

SUPPORT PLATE - Call your local BRP dealership

273000204

Unavailable

40

Cable Grommet

293720052

Unavailable

41

T-Fitting

293710068

$8.29

42

FEMALE ADAPTOR - Call your local BRP dealership

270600024

Unavailable

43

Throttle Body Ass'y | Includes 43 - 67.

270600043

Unavailable

44

Lower Support (Throttle Body)

270600026

Unavailable

45

Upper Support Ass'y (Throttle Body) | INCLUDES 53 TO 54

270600045

Unavailable

46

Latch Bracket

270600046

Unavailable

47

Socket Head Screw M5 X 10

205051060

$1.58

48

Spring

270600048

Unavailable

49

Throttle Body (PTO) | Includes 49 - 56.

270600032

Unavailable

50

Throttle Lever Ass'y

270600034

Unavailable

51

Potentiometer Screw

270600039

Unavailable

52

Lock Washer Helical M6

234161601

$1.15

53

Hex. Nut M6

232061600

$1.15

54

Spring Guide

270600036

Unavailable

55

Spring

270600037

Unavailable

56

Position Sensor

420866120

$98.99

57

Throttle Body (MAG) | Includes 57 - 64.

270600033

Unavailable

58

Pick-Up Lever

270600035

Unavailable

59

Potentiometer Screw

270600039

Unavailable

60

Lock Washer Helical M6

234161601

$1.15

61

Hex. Nut M6

232061600

$1.15

62

Spring Guide

270600036

Unavailable

63

Spring

270600038

Unavailable

64

Position Sensor

420866120

$98.99

65

Idle Screw

270600049

Unavailable

66

Cover (Loctite Ultra Grey)

270600050

Unavailable

67

Adjuster Screw

270600047

Unavailable

68

Hex. Screw M4 X 12, Scotch Grip

207341260

Unavailable

69

Flat Washer 4 mm, Stainless

234042600

$1.15

70

INTAKE HOSE - Call your local BRP dealership

270600021

Unavailable

71

Tubing 25 MM 1000MM Long

219704402

$15.99

72

Tie-Rap 180 mm

414115200

$0.11

73

Tridon Gear Clamp

293650172

$3.09

74

Tridon Gear Clamp

293650173

$3.09

75

Lock Washer Helical M6

234161601

$1.15
