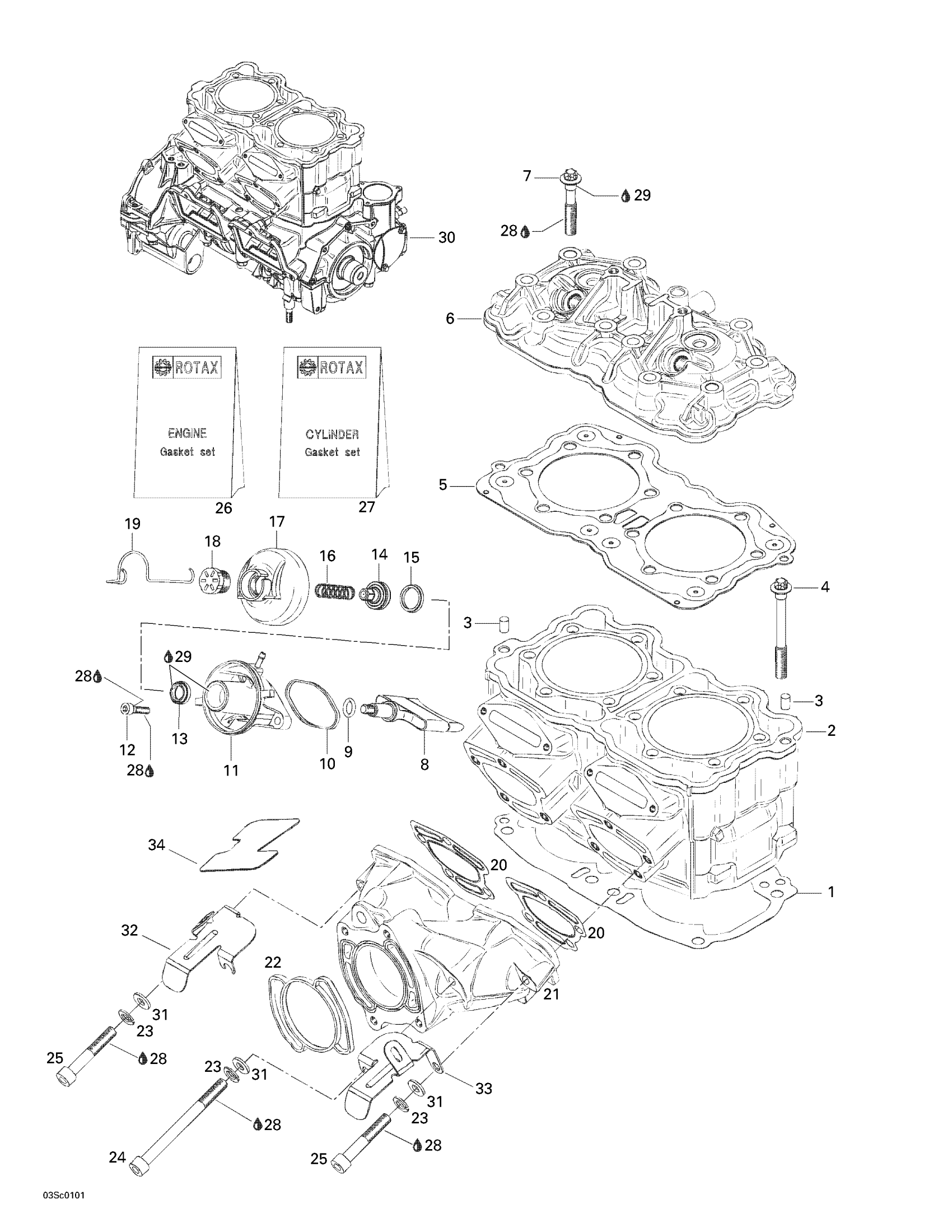

Sea-doo RX DI, 5534/5535/5536/5537, 2001 Cylinder, Exhaust Manifold Diagram

#

Description
Price

1

Gasket Cylinder 0.8 mm

290931907

Unavailable

Gasket Cylinder 0.6 mm

290931906

Unavailable

Gasket Cylinder 0.5 mm

290931905

Unavailable

2

Cylinder with Sleeve (Silver) (5591/5592

290923718

Unavailable

2

REBUILD-CYLINDER 947-DI - Call your local BRP dealership

421000570

Unavailable

3

Center Pin 8 X 12

420632010

$4.01

4

Torx Screw M10 x 94

290640293

Unavailable

5

Cylinder Head Gasket (5591/5592)

290931705

Unavailable

6

Head Cylinder (Silver) (5591/5592)

290923586

Unavailable

7

Screw Hex. Flange M10 x 60

290640308

Unavailable

8

Exhaust Valve

290854540

Unavailable

9

O-Ring

420250460

$2.32

10

Rubber Gasket

290931670

Unavailable

11

Valve Housing

290854555

Unavailable

12

Socket Head Screw M6 X 25

205062560

$1.69

13

Sealing Ring

290931970

Unavailable

14

Exhaust Valve Piston

290854560

Unavailable

15

Grooved Ring

290931950

Unavailable

16

Compression Spring

290939130

Unavailable

17

Valve Cover This part replaces 420911558.

420911559

$29.49

18

SCREW ADJUSTMENT - Call your local BRP dealership

420241222

Unavailable

19

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

20

Gasket

290931653

Unavailable

21

Exhaust Manifold

420979607

$399.99

22

Exhaust Gasket

290931990

Unavailable

23

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

24

Socket Head Screw M10 x 110

290941483

Unavailable

25

SOCKET HEAD SCREW M10 X 60 - Call your local BRP dealership

205006060

Unavailable

26

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290888134

Unavailable

27

Cylinder Gasket Set (Not Shown)

290888139

Unavailable

28

Loctite 243, 10 ml

293800060

$21.49

29

Grease, Super Lube

293550030

$28.99

30

Short Block Ass'y (5591/5592)

290094705

Unavailable

31

Flat Washer 10 mm, Stainless

234000600

$1.46

32

DUCT SUPPORT, MAG - Call your local BRP dealership

273000170

Unavailable

33

Duct Support, PTO

273000169

Unavailable

34

PROTECTOR PAD - Call your local BRP dealership

273000165

Unavailable
