- RX DI, 5534/5535/5536/5537, 2001
01- Crankshaft And Pistons

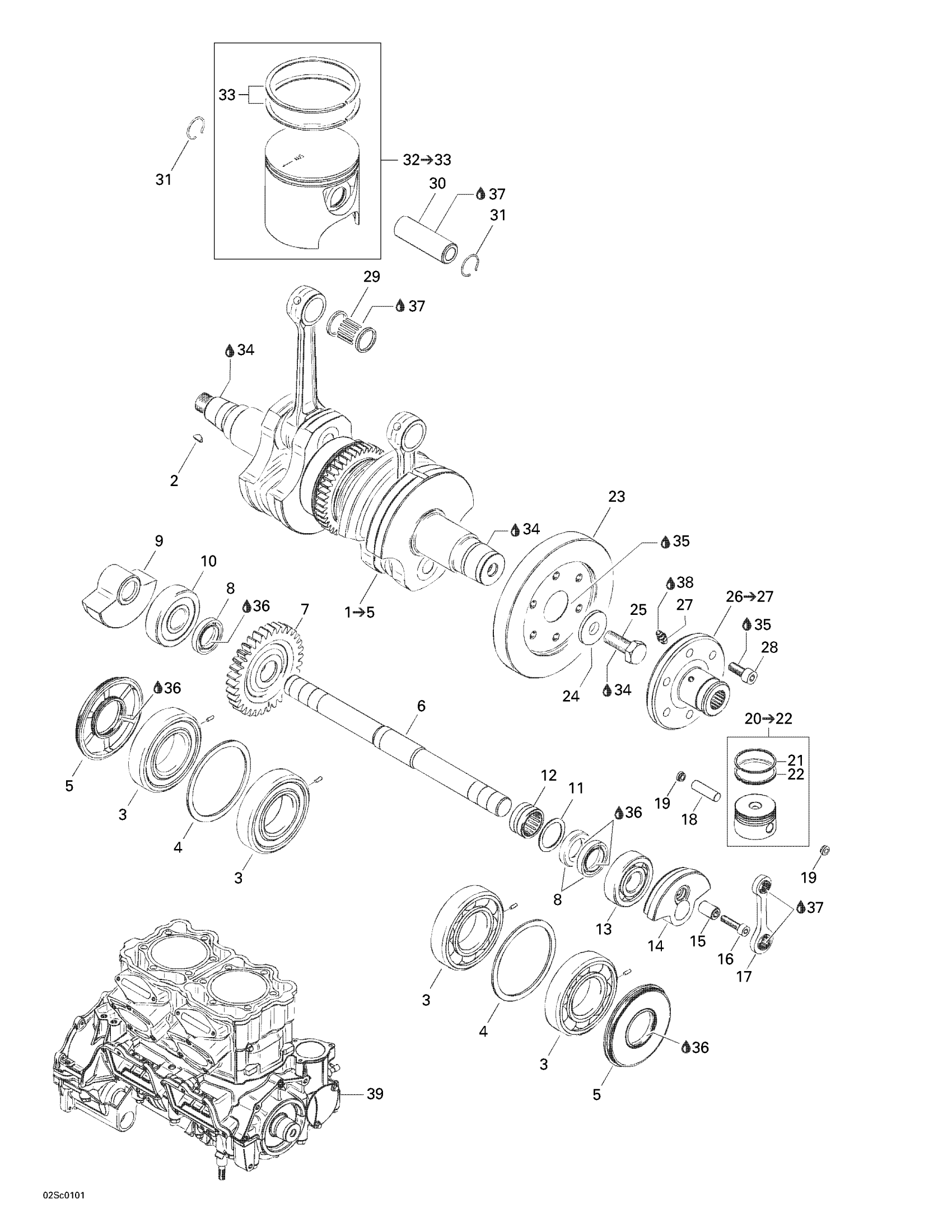

Sea-doo RX DI, 5534/5535/5536/5537, 2001 01- Crankshaft And Pistons Diagram
#
1
Crankshaft Ass'y | Includes 1 - 5.
290887767
Unavailable
2
Woodruff Key
420246055
$2.43
3
Bearing_Ball - Call your local BRP dealership
420432271
Unavailable
4
Washer
420926190
$11.63
5
OIL SEAL - Call your local BRP dealership
290931731
Unavailable
6
Shaft Balance Ass'y | Includes 6 - 14.
290837445
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Ball Bearing 6304
290932097
Unavailable
11
Washer
420927192
Unavailable
12
Needle Bearing
290232555
Unavailable
13
Ball Bearing 6304
290932096
Unavailable
14
Mass Balance
290818955
Unavailable
15
Compressor Pin
290921460
Unavailable
16
SCREW M6 X 45 - Call your local BRP dealership
290640690
Unavailable
17
Conrod Ass'y
290917505
Unavailable
18
Piston Pin M9 x 30
290916430
Unavailable
19
Distance Bushing
290847940
Unavailable
20
Piston Ass'y 38.95 mm | Includes 36 - 38.
290888550
Unavailable
21
Rectangular Ring
290215970
Unavailable
22
Oil Scraper Ring
290215960
Unavailable
23
Coupling (Silver)
290958082
Unavailable
24
Washer
290827782
Unavailable
25
Hex. Screw M12 x 30
290640120
Unavailable
26
COUPLING FLANGE ASS'Y (SILVER) - Call your local BRP dealership | Includes 22 - 23.
290958122
Unavailable
27
GREASE FITTING - Call your local BRP dealership
290499113
Unavailable
28
SOCKET SCREW M8 X 20 - Call your local BRP dealership
205082060
Unavailable
29
Bearing_Needle This part replaces 420832552.
420832553
$30.49
30
Piston Pin
290916396
Unavailable
31
Circlip
290845465
Unavailable
32
Piston, 2 Rings, 87.88 mm (5591/5592)
290889040
Unavailable
Piston Oversize, 88.16 mm
290889041
Unavailable
33
Rectangular Ring (5591/5592)
290815265
Unavailable
Rectangular Ring (Oversize) (5591/5592)
290815266
Unavailable
34
Loctite 243, 10 ml
293800060
$21.49
35
Sealant Loctite 648
219703000
$45.99
36
Grease, Super Lube
293550030
$28.99
37
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
$12.99
38
Synthetic Grease, 400 G
293550010
Unavailable
39
Short Block Ass'y (5591/5592)
290094705
Unavailable
40
ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership
290888134
Unavailable
41
Cylinder Gasket Set (Not Shown)
290888139
Unavailable
