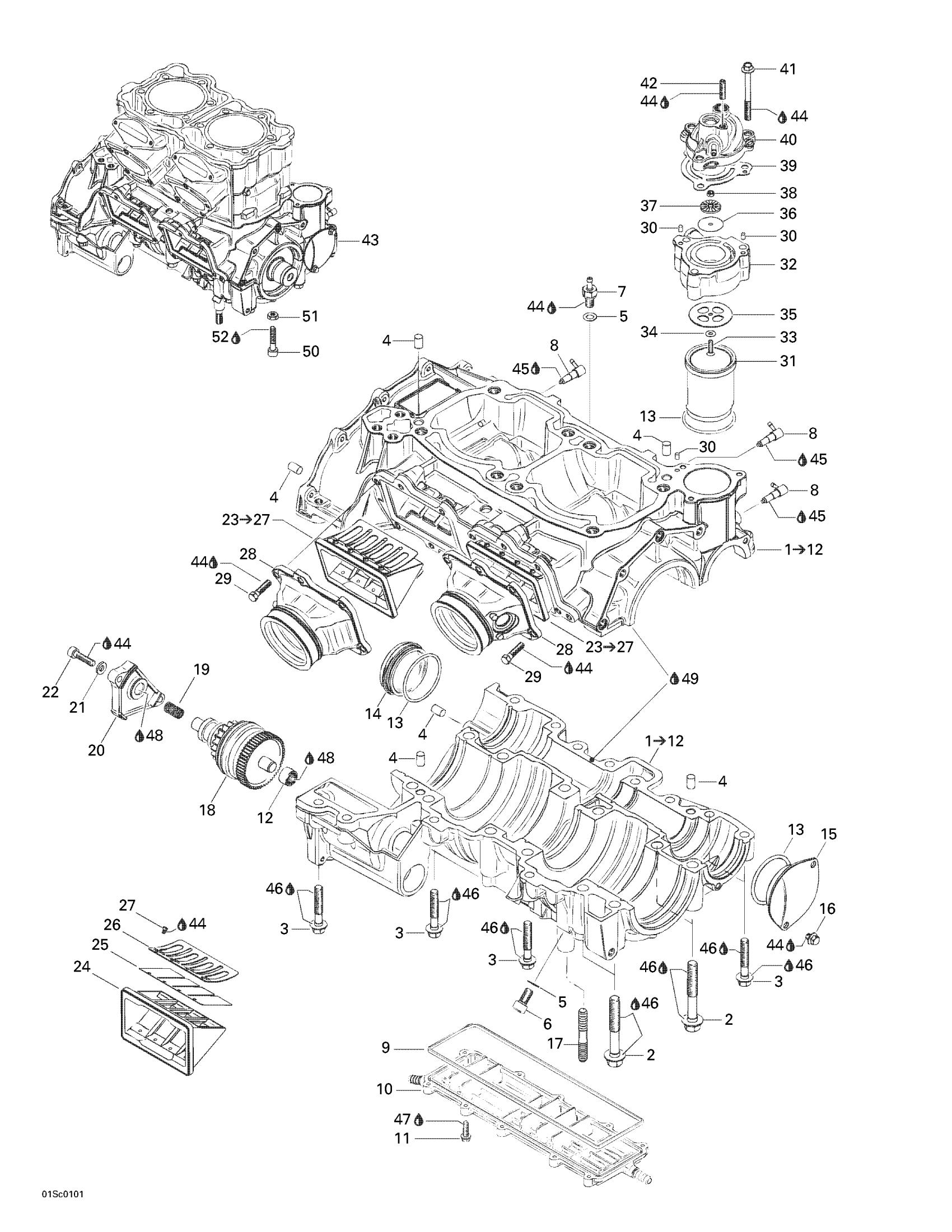

Sea-doo RX DI, 5534/5535/5536/5537, 2001 Crankcase Diagram

#

Description
Price

1

CRANKCASE ASSY 947-DI - Call your local BRP dealership | Includes 1 to 12

420888534

Unavailable

2

Flange Screw M10 x 73,5

290941333

Unavailable

3

FLANGE SCREW M8 X 45 - Call your local BRP dealership

290940638

Unavailable

4

Center Pin 8 X 12

420632010

$4.01

5

Sealing Ring

420950141

$2.00

6

Socket Head Screw M8 X 16

205081660

Unavailable

7

Vent Nipple M8

290640970

Unavailable

8

Check Valve

420956511

$35.99

9

Rubber Ring

290931880

Unavailable

10

Waterchannel Cover

290811430

Unavailable

11

Taptite Screw

290841558

Unavailable

12

Needle Bushing

420232482

$20.99

13

O-Ring

290230300

Unavailable

14

Bearing Cover

290811200

Unavailable

15

BEARING COVER - Call your local BRP dealership

420811205

Unavailable

16

Hex. Flange Screw M6 X 12

207661244

$2.11

17

STUD M10 X 18 - Call your local BRP dealership

420840290

Unavailable

18

Starter Drive Ass'y

420888042

$369.99

19

Spring

420938204

$7.65

20

Cover

290811210

Unavailable

21

SPRING WASHER - Call your local BRP dealership

420845020

Unavailable

22

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.48

23

REED VALVE ASS'Y - Call your local BRP dealership | Includes 23 to 27

420924602

$189.99

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Reed Pedal

290924612

Unavailable

26

Reed Pedal Stop

290924617

Unavailable

27

Phillips Screw M3 X 5

420941215

$1.69

28

Carburator Adapter Ass'y

290867890

Unavailable

29

Hex. Flange Screw M6 X 25

207662544

$0.64

30

Pin

290232020

Unavailable

31

Compressor Sleeve

290923910

Unavailable

32

Compressor Head

290923891

Unavailable

33

Oval Head Screw

290841368

Unavailable

34

Washer

290944590

Unavailable

35

Inlet Reed Disk

290854500

Unavailable

36

Outlet Reed Disk

290854510

Unavailable

37

Diaphragm Guide

290944600

Unavailable

38

Lock Nut M4

290242533

Unavailable

39

Gasket

290931870

Unavailable

40

Compressor Cover

290923901

Unavailable

41

Hex. Flange Screw

290640563

Unavailable

42

Adjuster Screw M6 x 25

290640873

Unavailable

43

Short Block Ass'y (5591/5592)

290094705

Unavailable

44

Loctite 243, 10 ml

293800060

$21.49

45

Sealant Loctite 648

219703000

$45.99

46

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

47

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

48

Grease, Super Lube

293550030

$28.99

49

Loctite 5910, 300 ml

293800081

$57.99

50

Socket Screw M10 X 30

205003060

Unavailable

51

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

52

Loctite 271, 10 ml

293800005

$26.99

53

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290888134

Unavailable

54

Cylinder Gasket Set (Not Shown)

290888139

Unavailable
