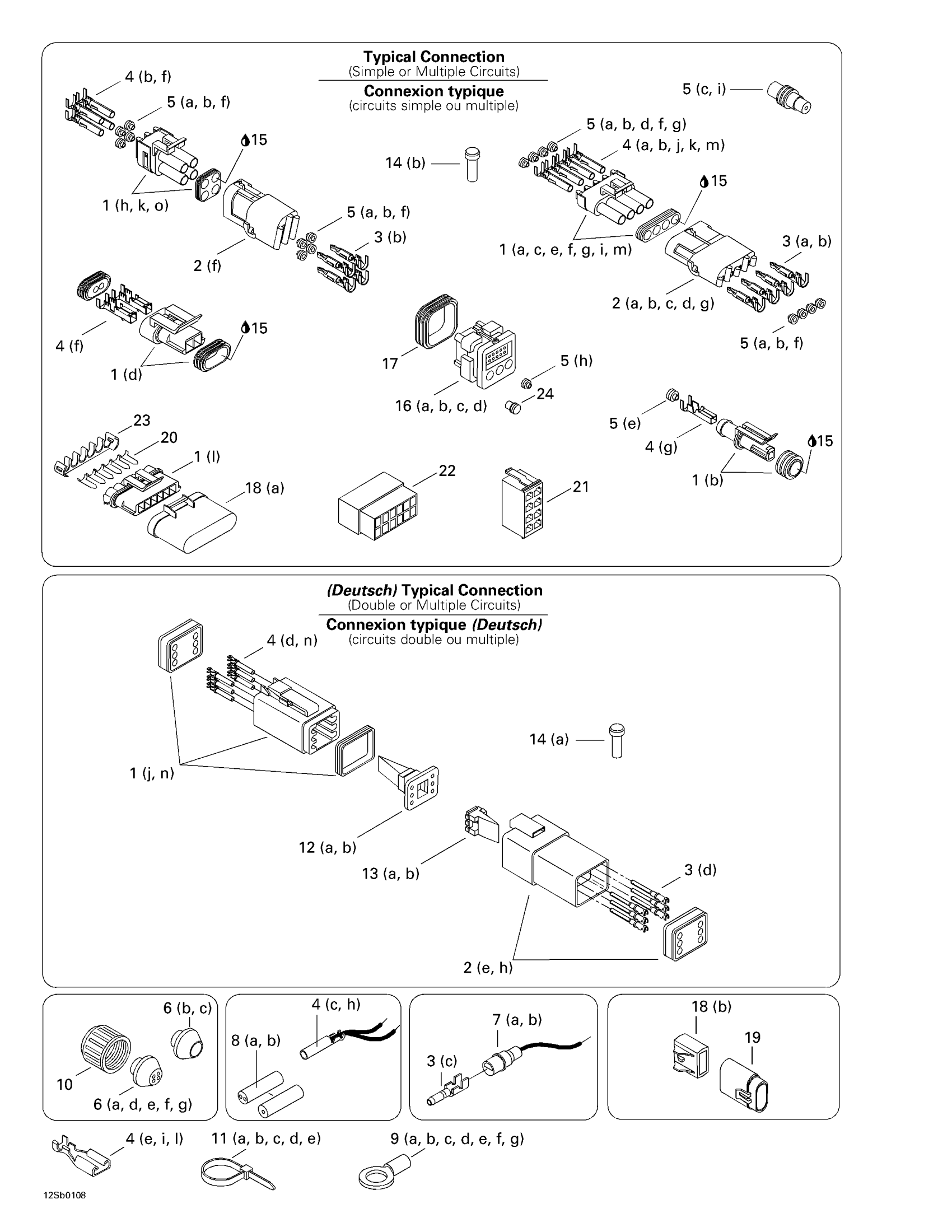

Sea-doo RX, 5579/5580/5581/5582, 2002 Typical Electrical Connections Diagram

#

Description
Price

1a

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

1b

Male Housing, 1 Circuit

278001012

$16.86

1c

Male Connector, 2 Circuits

278000220

$15.49

1d

Male Connector, 2 Circuits

278001113

$16.86

1e

Male Housing, 2 Circuits

278001005

$19.49

1f

Male Housing, 3 Circuits

278000997

$19.49

1g

Male Housing, 3 Circuits

278000273

$9.59

1h

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

1i

Male Housing, 4 Circuits

278000395

$15.99

1j

Male Connector, 4 Circuits | CE

278000739

$19.49

1k

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

1l

Male Housing, 6 Circuits, Packard

278001327

Unavailable

1m

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

1n

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

1o

Male Housing, 6 Circuits, Amp

278001318

Unavailable

2a

Female Housing, 1 Circuit

278000161

$9.59

2b

Female Housing, 2 Circuits

278000217

$9.59

2c

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

2d

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

2e

Female Housing, 4 Circuits

278000635

$16.49

2f

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

2g

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

2h

Male Terminal Housing, 6 Circuits

710001539

$19.99

3a

Male Terminal

409004300

$5.61

3b

Male Terminal | XT Models

278000222

$3.19

3c

Male Terminal

278000230

$4.39

3d

Male Terminal

278000631

$4.39

4a

Female Terminal

409007300

$0.45

4b

Female Terminal

278000223

$3.19

4c

Female Terminal | DS 650 X

278001009

$3.19

4d

Female Terminal

278000632

$2.09

4e

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

4f

Female Terminal

278001114

$3.19

4g

Female Terminal

278001014

$3.28

4h

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

4i

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

4j

Female Terminal

278001310

Unavailable

4k

Female Terminal

278000998

$4.39

4l

FEMALE TERMINAL - Call your local BRP dealership

409011700

Unavailable

4m

FEMALE TERMINAL - Call your local BRP dealership

278001210

Unavailable

4n

FEMALE TERMINAL - Call your local BRP dealership

278001276

Unavailable

5a

Wire Seal

278000218

$4.39

5b

Wire Seal

278001065

$7.69

5c

Wire Seal

278000216

$3.19

5d

Wire Seal

710000048

$7.69

5e

Wire Seal

278001013

$3.28

5f

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

5g

Wire Seal

278000999

$3.19

5h

Seal

278001223

Unavailable

5i

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

6a

Grommet, 1 Circuit, Blue

293720030

Unavailable

6b

GROMMET - Call your local BRP dealership

278000098

Unavailable

6c

Grommet

278000682

Unavailable

6d

GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership

293720025

Unavailable

6e

GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership

278000193

Unavailable

6f

Grommet, 4 Circuit, Red

570026800

Unavailable

6g

Grommet

293720034

Unavailable

7a

Insulation Sheath

278000231

$5.08

7b

Insulated Sheath

278001008

$3.28

8a

Insulated Sheath

278001007

$3.58

8b

Insulated Sheath

278000770

$7.90

9a

Open Barrel

278000992

$2.21

9b

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

9c

Ring Terminal

278000300

Unavailable

9d

Open Barrel, 8 mm

278001138

Unavailable

9e

Open Barrel

278001165

Unavailable

9f

Open Barrel, Amp

278001323

Unavailable

9g

Open Barrel, Amp

278001324

Unavailable

10

Electric Wire Cap

278000100

Unavailable

11a

Tie Wrap 94 mm | 4X4

293750001

$1.03

11b

Tie Wrap 142 mm

293750002

$1.25

11c

Tie-Rap 173 mm

293750009

$1.04

11d

Tie-Rap 180 mm

414115200

$0.11

11e

Tie Wrap 368 mm

293750008

$1.04

12a

Male Lock, 4 Circuits | CE

278000738

$3.09

12b

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

13a

Female Wedge, 4 Circuits

278000636

$4.39

13b

Female Lock, 6 Circuits

278000735

$3.19

14a

Sealing Cap

293000052

$3.19

14b

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

15

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

16a

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

16b

Male Terminal Housing, 26 Circuits

278001062

Unavailable

16c

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

16d

MALE CONNECTOR, 26 CIRCUITS - Call your local BRP dealership

278001211

Unavailable

17

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

18a

Cap, 6 Circuits, Packard

278001330

Unavailable

18b

Fuse Holder Cap

278001326

$7.69

19

Fuse Holder

278001325

$8.79

20

Buss Bar, Packard

278001329

Unavailable

21

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001321

Unavailable

22

Male Housing, 2 Circuits, Molex

278001322

Unavailable

23

Secondary Lock, Packard

278001328

Unavailable

24

SEAL - Call your local BRP dealership

409013900

Unavailable
