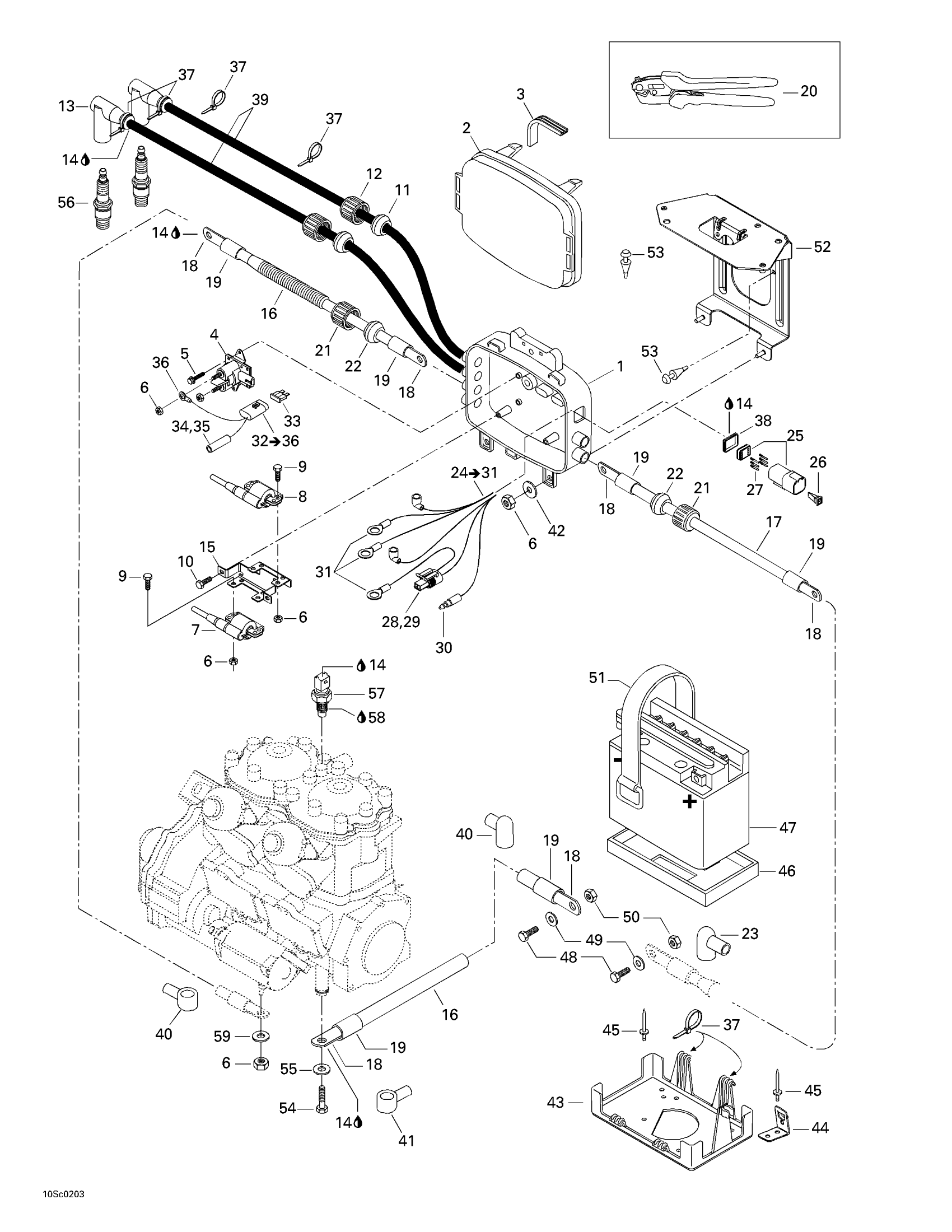

Sea-doo RX, 5579/5580/5581/5582, 2002 Rear Electrical Box Diagram

#

Description
Price

1

Electrical Box Base

278001712

Unavailable

2

ELECTRIC BOX COVER - Call your local BRP dealership

278001433

Unavailable

3

GASKET - Call your local BRP dealership

278001173

Unavailable

4

Starter Relay

278003012

$42.49

5

Hex. Flange Screw M6 X 10

210261040

$1.48

6

Hex. Elastic Stop Nut M6

232561600

$1.15

7

Ignition Coil (MAG)

278001415

Unavailable

8

IGNITION COIL (PTO) - Call your local BRP dealership

278001573

Unavailable

9

Hex. Forming Screw M6 X 20

207162060

$1.29

10

Hex. Screw M6 X 16

209561640

Unavailable

11

Grommet

278000682

Unavailable

12

Electric Wire Cap

278000100

Unavailable

13

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

14

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

15

Ignition Coil Support

278001421

Unavailable

16

Ground Cable, Black | Includes 18,19,41

278001489

Unavailable

16

Starter Positive Cable, Red | Includes 18,19,21,22,40

278001438

Unavailable

17

Starter Positive Cable, Red | Includes 34,35,75,89,90

278001091

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Electric Wire Cap

278000100

Unavailable

22

GROMMET - Call your local BRP dealership

278000098

Unavailable

23

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

24

Electric Box Harness | Includes 24 - 31.

278001422

Unavailable

25

Male Terminal Housing, 6 Circuits

710001539

$19.99

26

Female Lock, 6 Circuits

278000735

$3.19

27

Male Terminal

278000631

$4.39

28

Male Connector, 2 Circuits

278001113

$16.86

29

Female Terminal

278001114

$3.19

30

Male Terminal

278000230

$4.39

31

Ring Terminal

278000300

Unavailable

32

Fuse Harness (15 Amperes) | Includes 59 - 63.

278001212

Unavailable

33

Fuse, 15 Amperes

278000343

$3.28

34

Female Terminal | DS 650 X

278001009

$3.19

35

Insulated Sheath

278001007

$3.58

36

Ring Terminal

278000300

Unavailable

37

Tie Wrap 142 mm

293750002

$1.25

38

Gasket

293200030

Unavailable

39

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

40

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Flat Washer M6, Stainless

234062600

$0.77

43

Battery Support

278001430

Unavailable

44

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

45

Avdel Rivet 3/16"

293150037

$0.56

46

Lower Battery Pad

278001746

Unavailable

47

Battery 19A | Includes 5 to 8

278001756

$153.36

48

Hex. Screw M6 X 16

207161644

$0.74

49

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

50

Hex. Nut M6

232061414

$0.53

51

Retainer Strap

293850097

$11.64

52

BOX SUPPORT - Call your local BRP dealership

278001615

Unavailable

53

Rubber Bumper

293830005

$8.09

54

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

55

Flat Washer 10 mm, Stainless

234001600

$1.15

56

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.23

57

Temperature Sensor

278002895

$39.99

58

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

59

Stainless Flat Washer M6

234061600

$0.33
