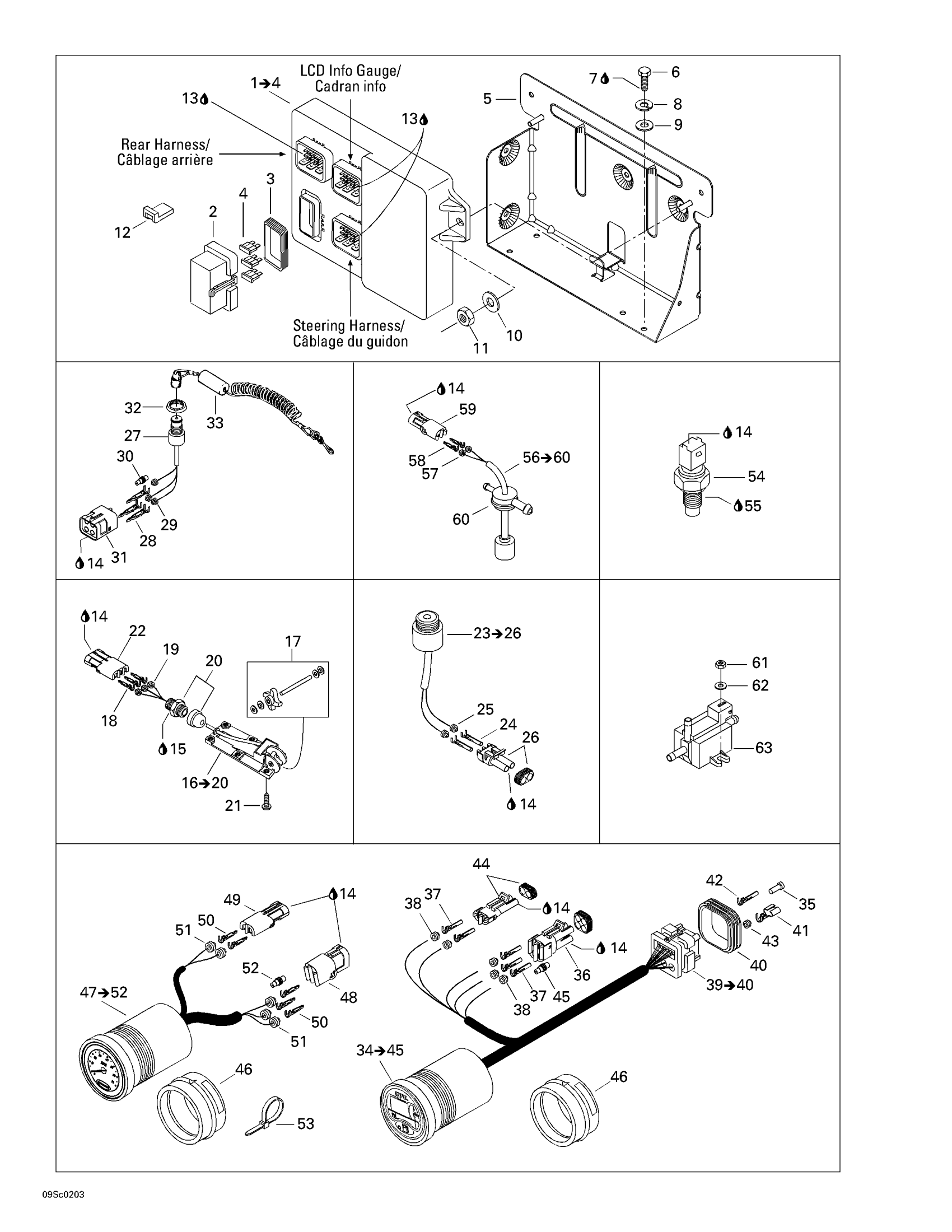

Sea-doo RX, 5579/5580/5581/5582, 2002 Electronic Module And Electrical Accessories Diagram

#

Description
Price

1

Electronic Module Ass'y | Includes 1 - 4.

278001718

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

3

Cover Seal

278001070

Unavailable

4

Fuse, 15 Amperes

278000343

$2.72

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

Fuse, 5 Amperes | CE

278000344

$3.12

5

Module Support

278001563

Unavailable

6

Hex. Plastite Screw M4, 8 X 20

243042060

Unavailable

7

Loctite 271, 10 ml

293800005

$20.77

8

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

9

Flat Washer 5 mm, Stainless

234052600

$0.64

10

Flat Washer M6, Stainless

234062600

$0.64

11

Hex. Elastic Stop Nut M6

232561600

$0.92

12

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

13

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

14

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

15

Was 293800013 Loctite 56765

219704454

$63.40

16

Speed Sensor | Includes 26 to 30 / LE

278001595

Unavailable

17

Paddle Wheel Kit

295500108

Unavailable

18

Male Terminal | XT Models

278000222

$2.55

19

Wire Seal

278000218

$3.48

20

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

21

Phillips Screw M5 x 12

250000319

$1.03

22

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

23

BUZZER ASS?Y - Call your local BRP dealership | INCLUDES 1 TO 3

278000881

Unavailable

24

Female Terminal

278000223

$2.55

25

Wire Seal

278000218

$3.48

26

Male Connector, 2 Circuits

278000220

$11.02

27

Safety Switch This part replaces 278002325.

278002773

$89.67

28

Male Terminal | XT Models

278000222

$2.55

29

Wire Seal

278000218

$3.48

30

Wire Seal

278000216

$2.55

31

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

32

Safety Nut (DESS Switch)

278002963

$2.72

33

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$68.87

34

LCD Info Gauge | Includes 34 - 45.

278001625

Unavailable

35

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

36

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

37

Female Terminal

278000223

$2.55

38

Wire Seal

278001065

$5.85

39

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

40

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

41

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

42

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

43

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

44

Male Connector, 2 Circuits

278000220

$11.02

45

Wire Seal

278000216

$2.55

46

Gauge Support

293720047

Unavailable

47

Speedometer | Includes 17 - 22.

278001619

Unavailable

48

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

49

Female Housing, 2 Circuits

278000217

$7.59

50

Male Terminal | XT Models

278000222

$2.55

51

Wire Seal

278001065

$5.85

52

Wire Seal

278000216

$2.55

53

Tie-Rap 180 mm

414115200

$0.09

54

Temperature Sensor

278002895

$31.82

55

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

56

Oil Sensor | Includes 44 to 48

278001402

Unavailable

57

Wire Seal

278000218

$3.48

58

Male Terminal | XT Models

278000222

$2.55

59

Female Housing, 2 Circuits

278000217

$7.59

60

Grommet

293720008

$10.91

61

Hex. Elastic Nut M5 | X

232551600

$0.91

62

Flat Washer M5, Stainless

234051600

$0.64

63

Solenoid Valve

270600005

$45.49
