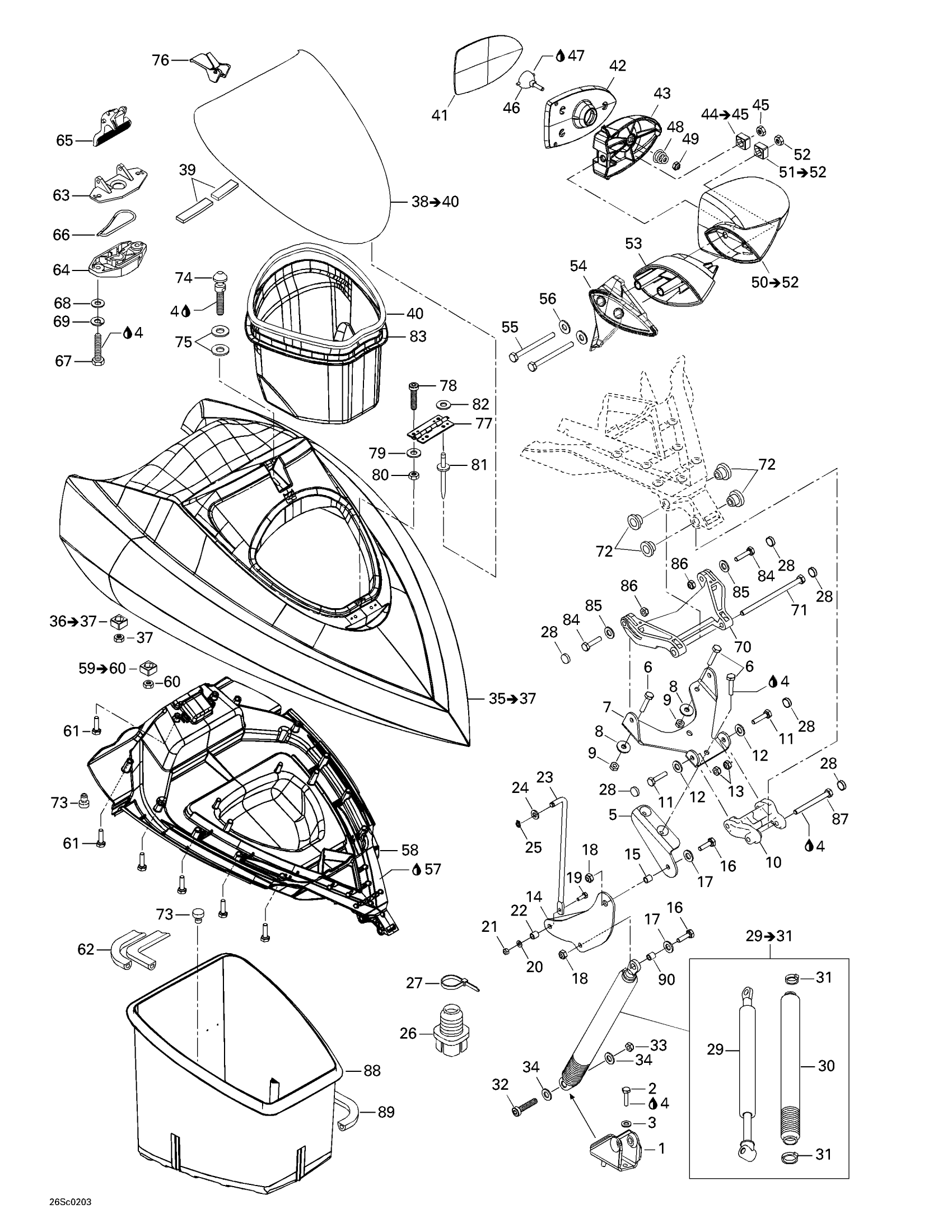

Sea-doo RX, 5579/5580/5581/5582, 2002 Front Storage Compartment Diagram

#

Description
Price

1

Shock Support

291001013

Unavailable

2

Hex. Screw M6 X 25

207162560

$1.47

3

Lock Washer Helical M6

234161601

$1.15

4

Loctite 243, 10 ml

293800060

$21.49

5

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

6

Hex. Forming Screw M6 X 20

207162060

$1.29

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Flat Washer M6, Stainless

234062600

$0.77

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

FRONT ARM - Call your local BRP dealership

269500704

Unavailable

11

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

12

Stainless Flat Washer M6

234061600

$0.33

13

Hex. Elastic Stop Nut M6

232561600

$1.15

14

Lever

269500840

Unavailable

15

Spacer

291000536

Unavailable

16

Hex. Forming Screw M6 X 20

207162060

$1.29

17

Flat Washer M6, Stainless

234062600

$0.77

18

Hex. Elastic Stop Nut M6

232561600

$1.15

19

Hex. Screw M4 X 16 | Europe

207141660

$1.47

20

Flat Washer 4 mm, Stainless

234041600

$1.15

21

Elastic Stop Nut M4

232541600

$1.15

22

Spacer

269500841

Unavailable

23

ROD - Call your local BRP dealership

269500842

Unavailable

24

Stainless Flat Washer M6

234061600

$0.33

25

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

26

Cable Grommet

293720063

Unavailable

27

Tie-Rap 180 mm

414115200

$0.11

28

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

29

GAZ SHOCK ASS'Y - Call your local BRP dealership | Includes 26 - 28.

269500843

Unavailable

30

Bellow

269500845

Unavailable

31

Tie Wrap 94 mm | 4X4

293750001

$1.03

32

Socket Head Screw M6 x 45 (Scotch Grip)

205564560

Unavailable

33

Nut M6 | Model-Australie, Brezil, Europe

232361600

$4.34

34

Flat Washer M6, Stainless

234062600

$0.77

35

Cover (Mazatlan Blue) | Includes 32 - 34. RX DI BLUE/BLEU.

269500891

Unavailable

COVER (BLACK) - Call your local BRP dealership | Includes 32 - 34.

269501057

Unavailable

36

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

37

Hex. Nut M6

232061600

$1.15

38

Access Cover Ass'y (Mazatlan Blue) | Includes 35 - 37. RX DI BLUE/BLEU.

269501146

Unavailable

Access Cover Ass'y (Black) | RX DI YELLOW/JAUNE.

269501064

Unavailable

39

Neoprene Seal (1PAC=3M)

219704364

$27.49

40

Was 293200017 Neoprene Seal

219704365

$149.99

41

RH Mirror

269500687

Unavailable

LH MIRROR - Call your local BRP dealership

269500788

Unavailable

42

Frame Mirror

269500697

Unavailable

43

Housing Support | WAKE

269500807

Unavailable

44

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

45

Hex. Elastic Nut M8

232581600

$1.48

46

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

47

Synthetic Grease, 400 G

293550010

Unavailable

48

Mirror Spring

269500453

$10.49

49

Hex. Elastic Stop Nut M6

232561600

$1.15

50

RH Mirror Shell (Mazatlan Blue) | Includes 50 - 52. RX (BLUE/BLEU).

269501893

Unavailable

Mirror Shell Ass'y, Black | Includes 18 to 20

269501072

Unavailable

LH mirror shell | BLUE (B-544)

269500895

Unavailable

LH Mirror Shell (Black) | RX DI YELLOW/JAUNE.

269501074

Unavailable

51

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

52

Hex. Elastic Nut M8

232581600

$1.48

53

RH Mirror Support | BLUE (B-544) GTX 4-TEC 6125/6126.

269500897

Unavailable

RH Mirror Support, Black

269501076

Unavailable

LH Mirror Support | BLUE (B-544)

269500899

Unavailable

LH Mirror Support, Black

269501078

Unavailable

54

RH Spacer | LE

269500792

Unavailable

LH Spacer | LE

269500793

Unavailable

55

HEX. SCREW M8 X 120 - Call your local BRP dealership

230082060

Unavailable

56

Flat Washer 8 mm, Stainless

234082600

$2.43

57

Glue Tube, Loctite 454, 20 G

413708300

$60.99

58

Lower Strorage Cover

269500702

Unavailable

59

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

60

Hex. Nut M6

232061600

$1.15

61

Hex. Flange Screw K40 X 13

241141360

$0.67

62

Was 293200017 Neoprene Seal

219704365

$149.99

63

Latch Ass'y

269700109

$24.99

64

Latch Ass'y

269700109

$24.99

65

Latch Ass'y

269700109

$24.99

66

Latch Spring

269700017

$9.19

67

Hex. Screw M6 X 30

207063060

$1.89

68

Stainless Flat Washer M6

234061600

$0.33

69

Lock Washer Helical M6

234161601

$1.15

70

REAR ARM - Call your local BRP dealership

269500705

Unavailable

71

Hex. Screw M6 X 100

230060060

$7.41

72

Sleeve

269500706

$4.65

73

Rubber Bumper

293830005

$8.09

74

ANCHORING STUD - Call your local BRP dealership

291001242

Unavailable

75

Flat Washer M6, Stainless

234062600

$0.77

76

Latch

269501487

$16.99

77

HINGE - Call your local BRP dealership

269500338

Unavailable

78

Socket Head Screw M5 X 16

205451660

$1.15

79

Flat Washer 5 mm, Stainless

234052600

$0.77

80

Hex. Elastic Nut M5 | X

232551600

$1.15

81

Pop Rivet 3/16"

204000081

$1.49

82

Flat Washer 5 mm, Stainless

234052600

$0.77

83

GLOVE BOX - Call your local BRP dealership

269501121

Unavailable

84

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

85

Stainless Flat Washer M6

234061600

$0.33

86

Hex. Elastic Stop Nut M6

232561600

$1.15

87

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

Unavailable

88

STORAGE TRAY - Call your local BRP dealership

269500691

Unavailable

89

Seal Tray 1000Mm Long

219704368

$13.99

90

Not Available As Spare Part - Friction Washer

Unavailable
