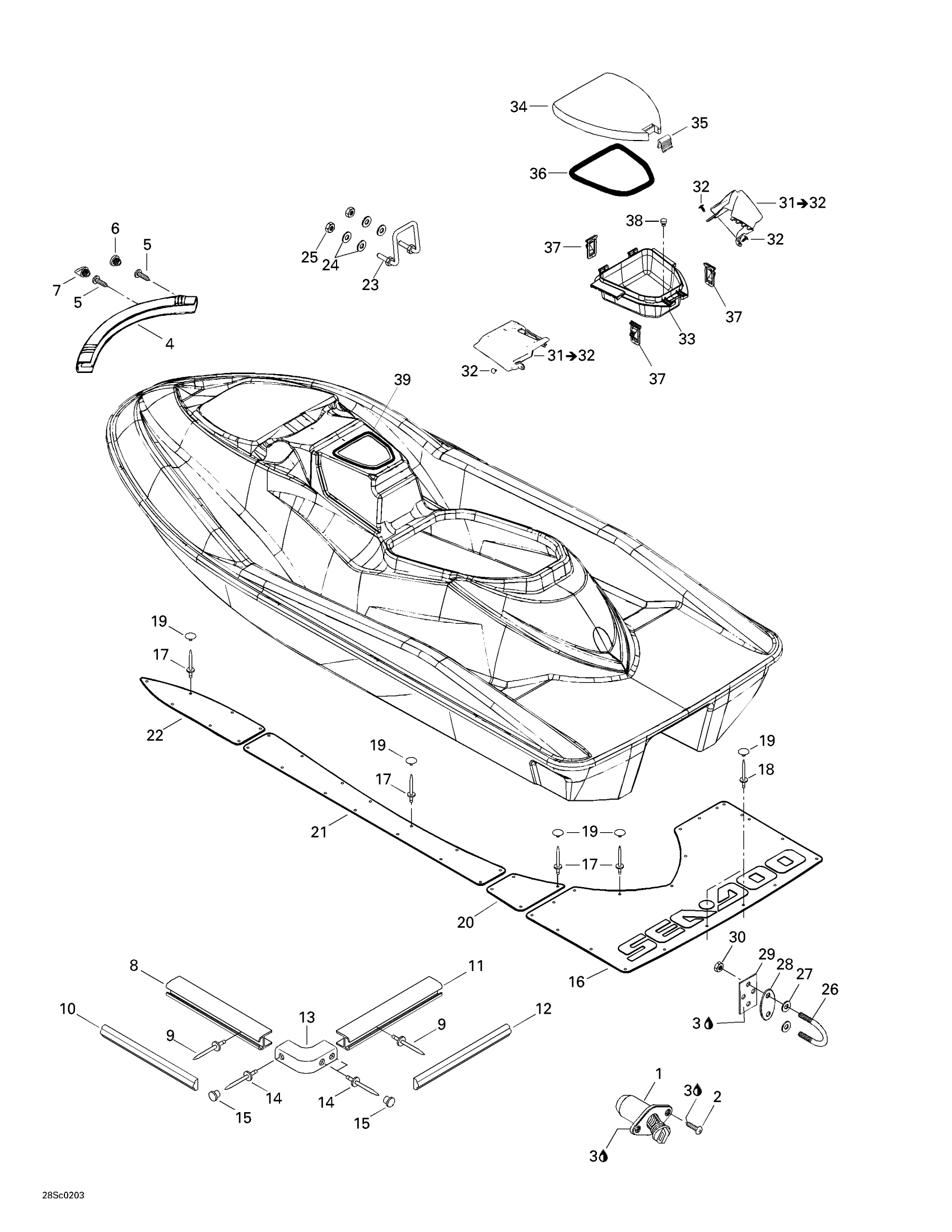

Sea-doo RX, 5579/5580/5581/5582, 2002 09- Body Diagram
#
1
Eye-Bow (Black) This part replaces 292000708.
292000452
$42.99
Eye-Bow (Black) This part replaces 292000708.
292000452
$42.99
2
Shell (Blue) | GTX 4-TEC 5593/5594.
292000638
Unavailable
Black Shell
292001837
$20.99
3
Stainless, Flat Washer 8 mm
234081600
$0.55
4
Flat Washer 8 mm, Stainless
250200175
$3.06
5
Rubber Washer
293830037
$2.68
6
Hex. Elastic Nut M8
232581600
$1.48
7
Silicone Sealant 51388, 300 ml
296000309
$36.99
8
RH Insert Sponson
293450210
Unavailable
LH Insert Sponson
293450211
Unavailable
9
RH Sponson | Includes 38 - 39.
292000616
Unavailable
LH SPONSON - Call your local BRP dealership
292000617
Unavailable
10
Square Nut M6
232862600
Unavailable
11
RH Base Sponson
292000627
Unavailable
LH Base Sponson
292000624
Unavailable
12
Stainless Flat Washer M6
234061600
$0.33
13
Hex. Screw M6 X 30, Scotch Grip
207363060
Unavailable
14
Stainless Flat Washer M6
234061600
$0.33
15
SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership
205065060
Unavailable
16
Loctite 271, 10 ml
293800005
$26.99
17
LH SPRING CLIP - Call your local BRP dealership
292000398
Unavailable
18
Avdel Rivet 3/16"
293150037
$0.56
19
EXTINGUISHER HOUSING - Call your local BRP dealership
269500606
Unavailable
20
Owners Tool Kit
295500783
Unavailable
21
EXTINGUISHER HOUSING CAP - Call your local BRP dealership
269501939
Unavailable
22
Mount Dart
293730040
$1.04
23
Tie Wrap 368 mm
293750008
$1.04
24
Tie-Rap 180 mm
414115200
$0.11
25
Bailer Screen
292000688
Unavailable
26
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
27
Tie Wrap 94 mm | 4X4
293750001
$1.03
28
ELBOW FITTING 90 - Call your local BRP dealership
293710057
Unavailable
29
Check Valve
276000093
Unavailable
30
HOSE 6 MM - Call your local BRP dealership
275500446
Unavailable
31
CHECK VALVE - Call your local BRP dealership This part replaces 275500167.
275500499
Unavailable
32
Grommet
293720029
$1.59
33
Collector Joint
291001424
Unavailable
34
Front Collector
291001629
Unavailable
35
Collector Support
291001614
Unavailable
36
Rubber Strap
293850065
Unavailable
37
Flat Washer 5 mm, Stainless
234052600
$0.77
38
Dart, Fastex
293730024
$1.39
39
Vent Hose
291001777
Unavailable
40
LATCH STUD - Call your local BRP dealership
291000691
Unavailable
41
Hex. Jam Nut M10
232100600
$2.22
42
Flat Washer 10 mm, Stainless
234002600
$2.22
43
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
44
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
45
Tie-Rap Mount
293750025
$1.25
Tie-Rap Mount
293750025
$1.25
46
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
47
TIE CLAMP - Call your local BRP dealership
293750005
Unavailable
48
Grab Handle
269000680
Unavailable
49
Baffle Seal
293200059
Unavailable
50
Hex. Screw M8 X 45
207084560
$3.38
51
Vent Tube Ass'y
291001417
Unavailable
52
Vent Hose
291001777
Unavailable
53
Dart, Fastex
293730024
$1.39
54
HEX. SCREW M6 X 120, SCOTCH GRIP - Call your local BRP dealership
230262060
Unavailable
55
Flat Washer M6, Stainless
234062600
$0.77
56
GROMMET - Call your local BRP dealership
293720042
Unavailable
57
Tie-Rap 180 mm
414115200
$0.11
58
Steering Support
277001000
Unavailable
59
Pop Rivet 3/16"
293150043
$2.09
