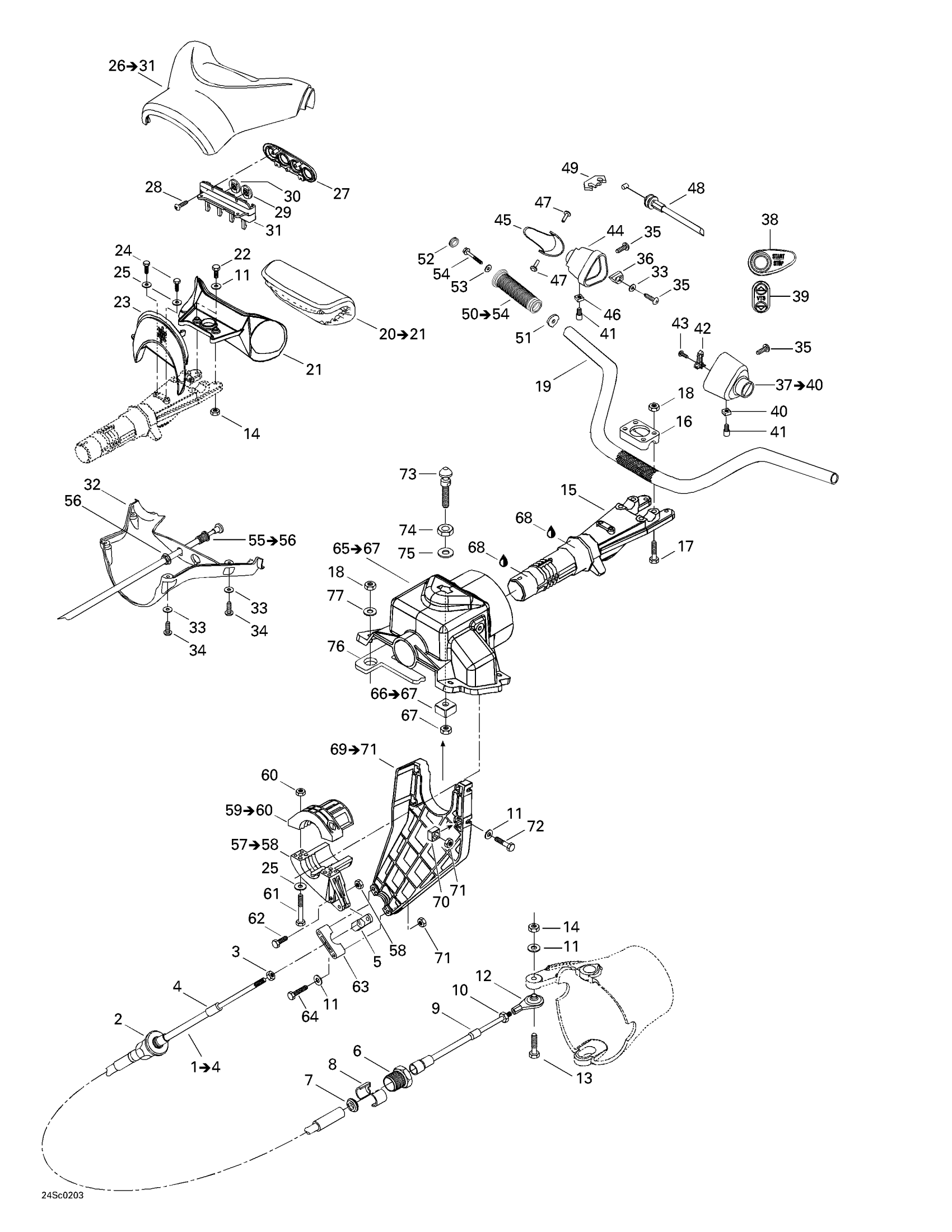

Sea-doo RX, 5579/5580/5581/5582, 2002 Steering System Diagram

#

Description
Price

1

Cable-Steering | Includes 61 - 64. This part replaces 277001011.

277001321

$219.99

2

Ajustment Knob

277000782

$22.99

3

Hex. Nut 1/4"-28

211100056

$0.69

4

Terminal Wiper

277000441

$11.99

5

Ball Joint

277001180

$35.99

6

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

7

Rubber Washer

293830063

$1.90

8

Half Ring

277001527

$10.37

9

Terminal Wiper

277000441

$11.99

10

Hex. Nut 1/4"-28

211100056

$0.69

11

Stainless Flat Washer M6

234061600

$0.33

12

Ball Joint

277000775

$51.99

13

Hex. Screw M6 X 35

207063560

$2.22

14

Hex. Elastic Stop Nut M6

232561600

$1.15

15

Steering Stem

277000562400

Unavailable

16

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

17

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

18

Hex. Elastic Nut M8

232581600

$1.48

19

Handlebar

277000824

Unavailable

20

Handle Pad | Includes 22 - 23.

277000931

Unavailable

Handle pad | Includes 22 - 23.

277000891

Unavailable

21

Handle Bar Pad Support

277000687

Unavailable

22

Hex. Screw M6 X 30

207063060

$1.89

23

PLATE - Call your local BRP dealership

277000549

Unavailable

24

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

25

Flat Washer M6, Stainless

234062600

$0.77

26

Upper Steering Cover Ass’Y | LE, Includes 32 to 37

277000753

Unavailable

27

RETAINER PLATE - Call your local BRP dealership | LE

277000688

Unavailable

28

Screw K40 X 10

241140060

$1.48

29

Mode Knob | LE

293000079

Unavailable

30

«Set» Knob | LE

293000080

Unavailable

31

Switch Support | LE

277000563

Unavailable

32

LOWER STEERING COVER - Call your local BRP dealership

277000625

Unavailable

33

Flat Washer M5, Stainless

234051600

$0.77

34

Hex. Flange Screw K40 X 16

241141660

$1.48

35

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

36

INSERT - Call your local BRP dealership

293450153

Unavailable

37

HOUSING ASSY - Call your local BRP dealership | Includes 14 to 17

277000877

Unavailable

38

Switch Knob

277000306

Unavailable

39

VTS KNOB - Call your local BRP dealership

277000497

Unavailable

40

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

41

Socket Head Screw M6 X 16

250000036

$9.00

42

Retainer Plate

277000845

Unavailable

43

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

44

THROTTLE HOUSING ASS'Y - Call your local BRP dealership

277000872

Unavailable

45

THROTTLE HANDLE - Call your local BRP dealership

277001485

Unavailable

46

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

47

PIN - Call your local BRP dealership

277000381

Unavailable

48

THROTTLE CABLE - Call your local BRP dealership

277000915

Unavailable

49

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

50

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

51

Not Available As Spare Part - Friction Washer

Unavailable

52

Black, Cap

277000203

$9.39

53

Flat Washer M6, Stainless

234062600

$0.77

54

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

55

CHOKE CABLE - Call your local BRP dealership | Includes 50 - 51.

270000383

Unavailable

56

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

57

Steering Stem Arm | Includes 41 to 42

277000518

Unavailable

58

Hex. Elastic Stop Nut M6

232561600

$1.15

59

Arm Thrust | Includes 43 to 44

277000519

Unavailable

60

Hex. Elastic Stop Nut M6

232561600

$1.15

61

Hex. Screw M6 X 25

207162560

$1.47

62

Hex. Screw M6 X 30

211000081

$3.59

63

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

64

Hex. Screw M6 X 50

207065060

$2.22

65

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

66

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

67

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

68

Synthetic Grease, 400 G

293550010

Unavailable

69

CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58

277001522

Unavailable

70

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

71

Hex. Elastic Stop Nut M6

232561600

$1.15

72

Hex. Forming Screw M6 X 20

207162060

$1.29

73

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

74

Hex. Jam Nut M10

232100600

$2.22

75

Flat Washer 10 mm, Stainless

234002600

$2.22

76

GASKET - Call your local BRP dealership

293250171

Unavailable

77

Stainless, Flat Washer 8 mm

234081600

$0.55
