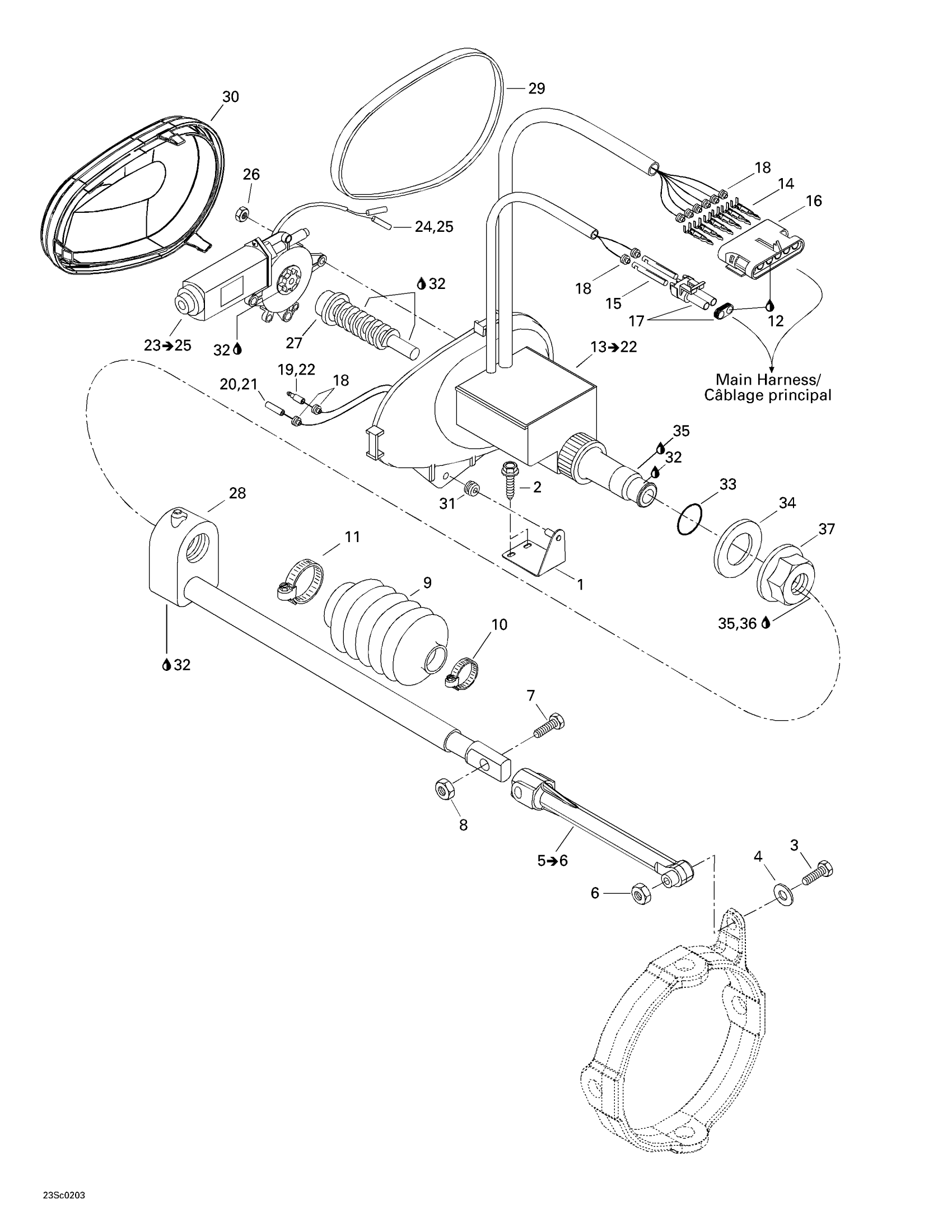

Sea-doo RX, 5579/5580/5581/5582, 2002 05- Trim Diagram
#
Description
Price
1
V.T.S. SUPPORT ASSY - Call your local BRP dealership
292000250
Unavailable
2
HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership
243041660
Unavailable
3
PIVOT SCREW - Call your local BRP dealership
250000018
Unavailable
4
Flat Washer 5 mm, Stainless
234052600
$0.77
5
V.T.S. ROD - Call your local BRP dealership
271001092
Unavailable
6
Hex. Elastic Nut M5 | X
232551600
$1.15
7
Hex. Screw M6 X 30
211000081
$3.59
8
Hex. Elastic Stop Nut M6
232561600
$1.15
9
Protector Hose
271000459
$17.49
10
Clamp
293650082
$3.99
11
CLAMP - Call your local BRP dealership
293650083
Unavailable
12
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
13
V.T.S Housing
278001605
$419.99
14
Male Terminal | XT Models
278000222
$3.19
15
Female Terminal
278000223
$3.19
16
FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership
278000156
Unavailable
17
Male Connector, 2 Circuits
278000220
$15.49
18
Wire Seal
278000218
$4.39
19
Insulated Sheath
278001008
$3.28
20
Insulated Sheath
278001007
$3.58
21
Female Terminal | DS 650 X
278001009
$3.19
22
Male Terminal
278000230
$4.39
23
Windshield Motor
278002579
$234.99
24
Insulation Sheath
278000231
$5.08
25
Male Terminal
278000230
$4.39
26
Hex. Elastic Stop Nut M6
232561600
$1.15
27
Worm Screw
278000428
$14.30
28
Sliding Block Ass’y
278001698
$43.99
29
GASKET - Call your local BRP dealership
293200027
Unavailable
30
V.T.S. COVER - Call your local BRP dealership
278000595
Unavailable
31
GROMMET - Call your local BRP dealership
293720015
Unavailable
32
Synthetic Grease, 400 G
293550010
Unavailable
33
O-Ring
293300044
$1.05
34
SEAL WASHER - Call your local BRP dealership
293830027
Unavailable
35
Was 293800041 Loctite Primer 7649
219704458
$39.99
36
Loctite 243, 10 ml
293800060
$21.49
37
SPECIAL NUT M27 - Call your local BRP dealership
211100020
Unavailable
