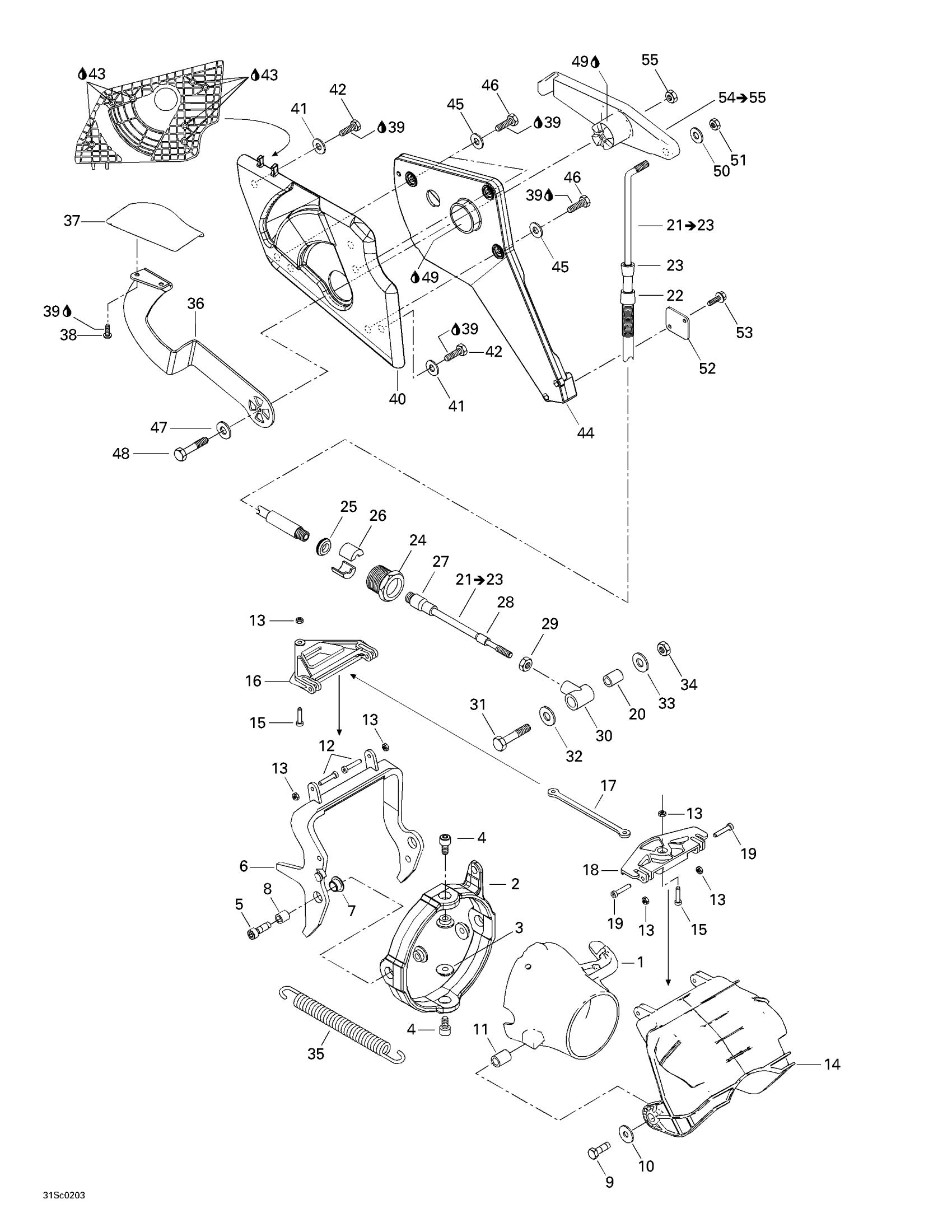

Sea-doo RX, 5579/5580/5581/5582, 2002 Reverse Diagram

#

Description
Price

1

Steering Nozzle (Black)

271001007

Unavailable

2

Trim Ring, Black

266000013

$119.99

3

Venturi Bushing

293900007

$5.45

4

Socket Head Screw M8 X 10, Scotch Grip

211000127

$3.99

5

PIVOT SCREW M8 X 25 - Call your local BRP dealership

250000026

Unavailable

6

ARM BLACK - Call your local BRP dealership

271001012

Unavailable

7

Venturi Bushing

271000321

$8.69

8

Spacer

271001039

$16.49

9

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

10

Flat Washer 8 mm, Stainless

234082600

$2.43

11

Spacer

277001066

Unavailable

12

PIVOT SCREW - Call your local BRP dealership

250000018

Unavailable

13

Hex. Elastic Nut M5 | X

232551600

$1.15

14

Gate Reverse

271001317

Unavailable

15

PIVOT SCREW - Call your local BRP dealership

250000018

Unavailable

16

TRIANGLE - Call your local BRP dealership

268000013

Unavailable

17

CONNECTOR ROD - Call your local BRP dealership

271001018

Unavailable

18

ROD PIVOT - Call your local BRP dealership

268000014

Unavailable

19

SCREW PIVOT - Call your local BRP dealership

250000023

Unavailable

20

Spacer

271001020

$12.99

21

Reverse Cable | Includes 36 - 38.

277000848

Unavailable

22

Boot, Large

277000473

Unavailable

23

Boot, Small

277000466

Unavailable

24

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

25

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

26

Half Ring

277000055

$9.49

27

Boot, Large

277000473

Unavailable

28

Boot, Small

277000466

Unavailable

29

Hex. Nut

212100005

$1.35

30

Joint

277001204

$18.49

31

Hex. Screw M6 X 35

207063560

$2.22

32

Flat Washer M6, Stainless

234062600

$0.77

33

Stainless Flat Washer M6

234061600

$0.33

34

Hex. Elastic Stop Nut M6

232561600

$1.15

35

Spring

271001328

$17.49

36

HANDLE LEVER - Call your local BRP dealership | RXP

271000982

Unavailable

37

REVERSE HANDLE - Call your local BRP dealership

271000983

Unavailable

38

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208451260

Unavailable

39

Loctite 243, 10 ml

293800060

$21.49

40

Handle Housing

271000984

Unavailable

41

Flat Washer M6, Stainless

234062600

$0.77

42

Hex. Cap Screw M6 X 12

207161260

$1.26

43

Silicone Sealant 51388, 300 ml

296000309

$36.99

44

REVERSE CABLE SUPPORT - Call your local BRP dealership

268000010

Unavailable

45

Flat Washer M6, Stainless

234062600

$0.77

46

Hex. Screw M6 X 16

207161660

$1.59

47

Stainless Flat Washer M6

234061600

$0.33

48

Hex. Screw M6 X 16

207161660

$1.59

49

Synthetic Grease, 400 G

293550010

Unavailable

50

Flat Washer M5, Stainless

234051600

$0.77

51

HEX. ELASTIC STOP NUT - Call your local BRP dealership

212000006

Unavailable

52

BRACKET - Call your local BRP dealership

277001058

Unavailable

53

Hex. Flange Screw M5 X 30

207153060

$1.99

54

Lever Ass.

271000986

$42.99

55

Hex. Elastic Stop Nut M6

232561600

$1.15
