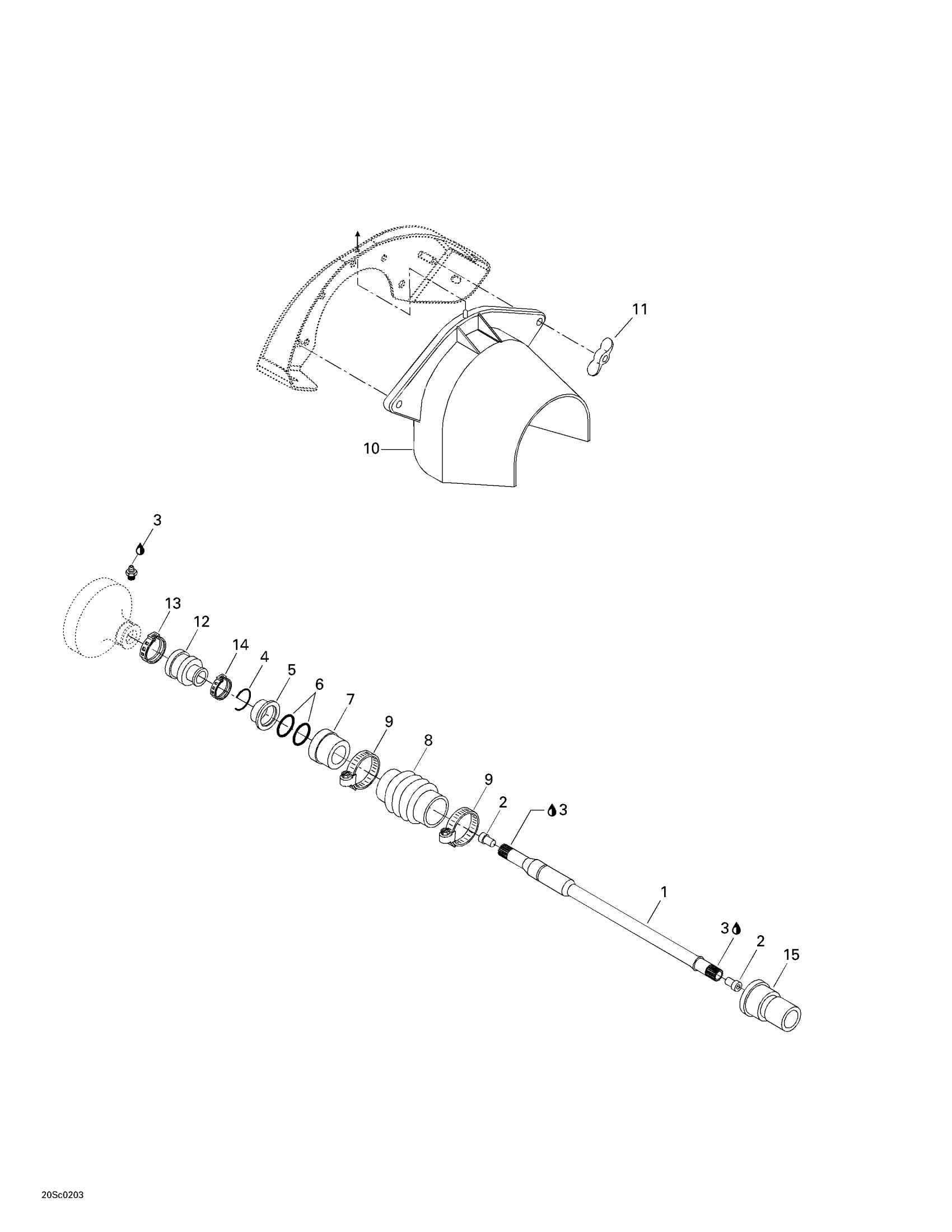

Sea-doo RX, 5579/5580/5581/5582, 2002 Drive System Diagram

#

Description
Price

1

DRIVE SHAFT - Call your local BRP dealership

272000151

Unavailable

2

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

3

Synthetic Grease, 400 G

293550010

Unavailable

4

C-CLIP - Call your local BRP dealership

272000135

Unavailable

5

Support Ring

272000064

$53.27

6

O-Ring

293300032

$4.89

7

Carbon Ring

272000770

Unavailable

8

BELLOWS - Call your local BRP dealership

272000184

Unavailable

9

Norma Clamp

293650075

$9.28

10

FLYWHEEL GUARD - Call your local BRP dealership

272000094

Unavailable

11

Wing Nut M8

232681100

$1.73

12

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

13

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

14

OETIKER CLAMP - Call your local BRP dealership

293650067

Unavailable

15

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable
