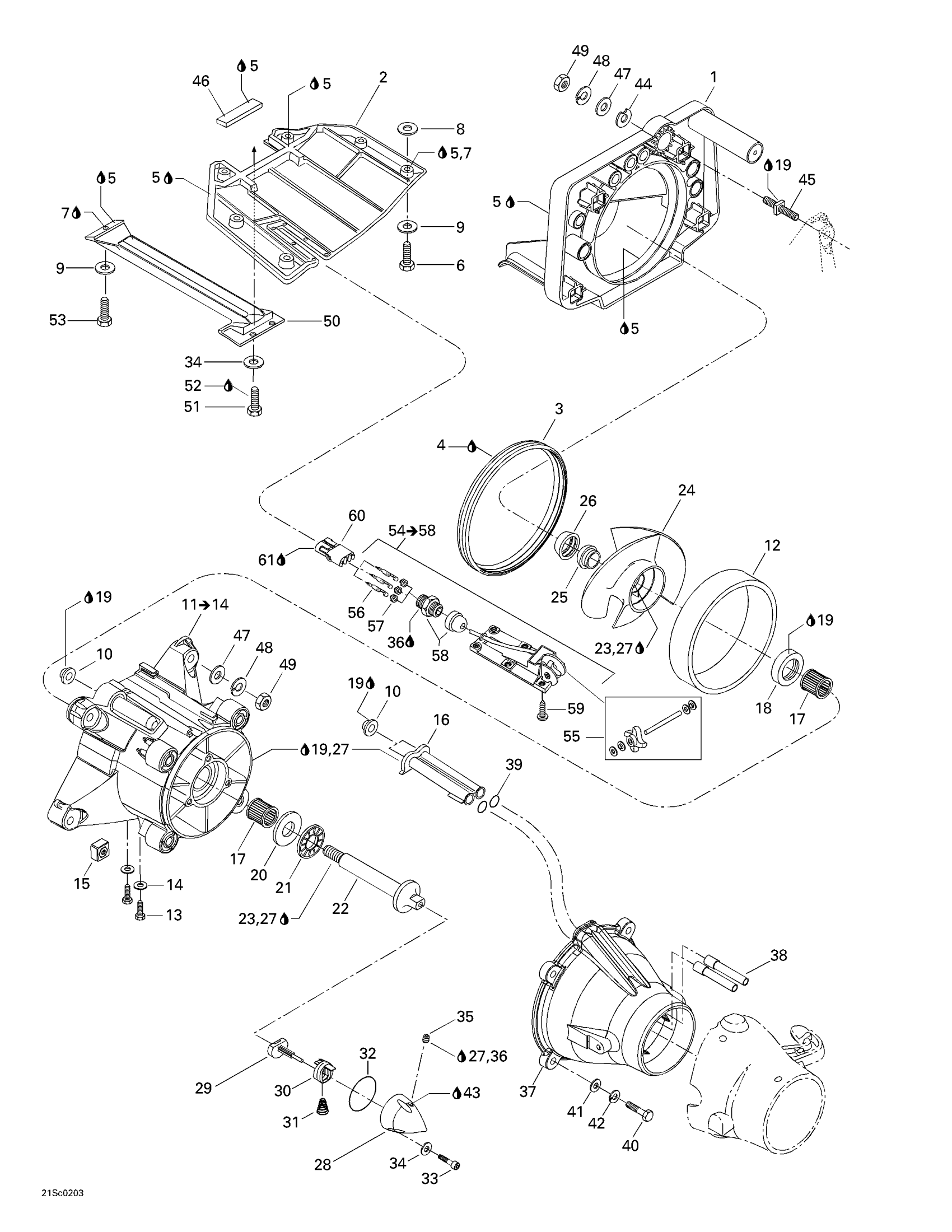

Sea-doo RX, 5579/5580/5581/5582, 2002 Drive And Propulsion System Diagram

#

Description
Price

1

Pump Support

271001132

Unavailable

2

Riding Plate

271001229

Unavailable

3

Neoprene Seal

293200051

$12.97

4

Glue Tube, Loctite 454, 20 G

413708300

$58.18

5

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$59.12

6

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.55

7

Silicone Sealant 51388, 300 ml

296000309

$35.72

8

Flat Washer 10 mm, Stainless

234002600

$1.85

9

Stainless, Flat Washer 8 mm

234081600

$0.46

10

Watertight Seal

293250084

$5.81

11

Impeller Housing Ass'y | Includes 11 - 14.

271001346

Unavailable

12

Wear Ring

271000653

$47.42

13

Hex. Plastite Screw #10 X 3/8"

250000040

$0.81

14

Flat Washer M5, Stainless

234051600

$0.64

15

Square Nut M8

211100033

$14.27

16

Water Outlet

271000785

$3.04

17

Needle Bearing

293350017

$21.42

18

Oil Seal

267000094

$17.52

19

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

20

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

21

Thrust-Bearing

293350022

$35.72

22

Impeller Shaft

271000965

$94.22

23

Loctite 243, 10 ml

293800060

$20.77

24

Impeller Ass’Y

271000920

$317.17

25

Impeller Boot

271000516

$6.86

26

Impeller Ring

271000517

$6.86

27

Was 293800041 Loctite Primer 7649

219704458

$41.99

28

IMPELLER COVER - Call your local BRP dealership

271001250

Unavailable

29

PUSHER ASS?Y - Call your local BRP dealership

271001124

Unavailable

30

SLIDER - Call your local BRP dealership

271001107

Unavailable

31

SPRING - Call your local BRP dealership

271001108

Unavailable

32

O-Ring

293300011

$6.46

33

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.70

34

Stainless Flat Washer M6

234061600

$0.25

35

Pipe Plug Socket Head 1/8-27 Npt

211500001

$7.02

36

Was 293800013 Loctite 56765

219704454

$63.40

37

Venturi (Black)

271001079

Unavailable

38

Siphon Tube

271001133

$7.05

39

O-Ring

293300013

$5.69

40

Hex. Screw M8 X 50, Scotch Grip

207285060

$1.70

41

Stainless, Flat Washer 8 mm

234081600

$0.46

42

Lock Washer 8 mm, Stainless

234181601

$0.46

43

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

44

Shim 0.3 mm

272000053

$8.02

45

Square Stud

250300022

$15.57

46

Neoprene Seal (1PAC=3M)

219704364

$22.72

47

Flat Washer 10 mm, Stainless

234002600

$1.85

48

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

49

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

50

Pump Grate

271000763

Unavailable

51

Hex. Screw M6 X 16

207161660

$1.22

52

Loctite 271, 10 ml

293800005

$20.77

53

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

54

Speed Sensor | Includes 26 to 30 / LE

278001595

Unavailable

55

Paddle Wheel Kit

295500108

Unavailable

56

Male Terminal | XT Models

278000222

$2.55

57

Wire Seal

278000218

$3.48

58

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

59

Phillips Screw M5 x 12

250000319

$1.03

60

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

61

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54
