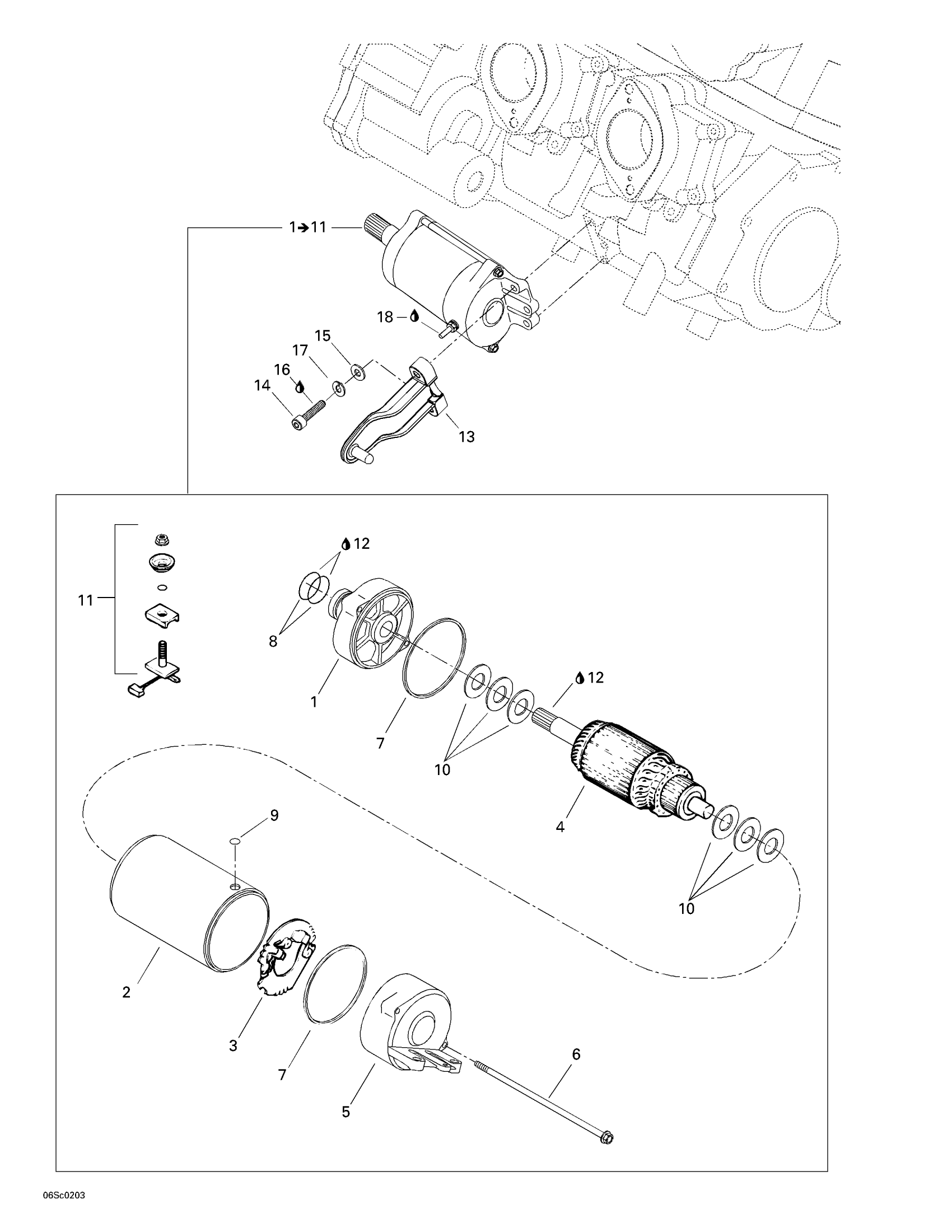

Sea-doo RX, 5579/5580/5581/5582, 2002 04- Starter Diagram

#

Description
Price

1

Starter Ass'y, Black

278001937

$265.99

1

Front Housing

278001152

Unavailable

2

Starter Housing

278001153

Unavailable

3

BRUSH HOLDER - Call your local BRP dealership

278001154

Unavailable

4

Armature

278001155

Unavailable

5

REAR HOUSING - Call your local BRP dealership

278001156

Unavailable

6

SCREW - Call your local BRP dealership

278001157

Unavailable

7

SQUARE RING - Call your local BRP dealership

278001158

Unavailable

8

O-RING - Call your local BRP dealership

278001159

Unavailable

9

O-RING - Call your local BRP dealership

278001160

Unavailable

10

Set Washer

278001161

Unavailable

11

SET BRUSH - Call your local BRP dealership

278001385

Unavailable

12

Synthetic Grease, 400 G

293550010

Unavailable

13

Silencer Support

273000123

Unavailable

14

Socket Head Screw M6 X 35

205063560

$2.22

15

Stainless Flat Washer M6

234061600

$0.33

16

Loctite 243, 10 ml

293800060

$21.49

17

Lock Washer Helical M6

234161601

$1.15

18

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
