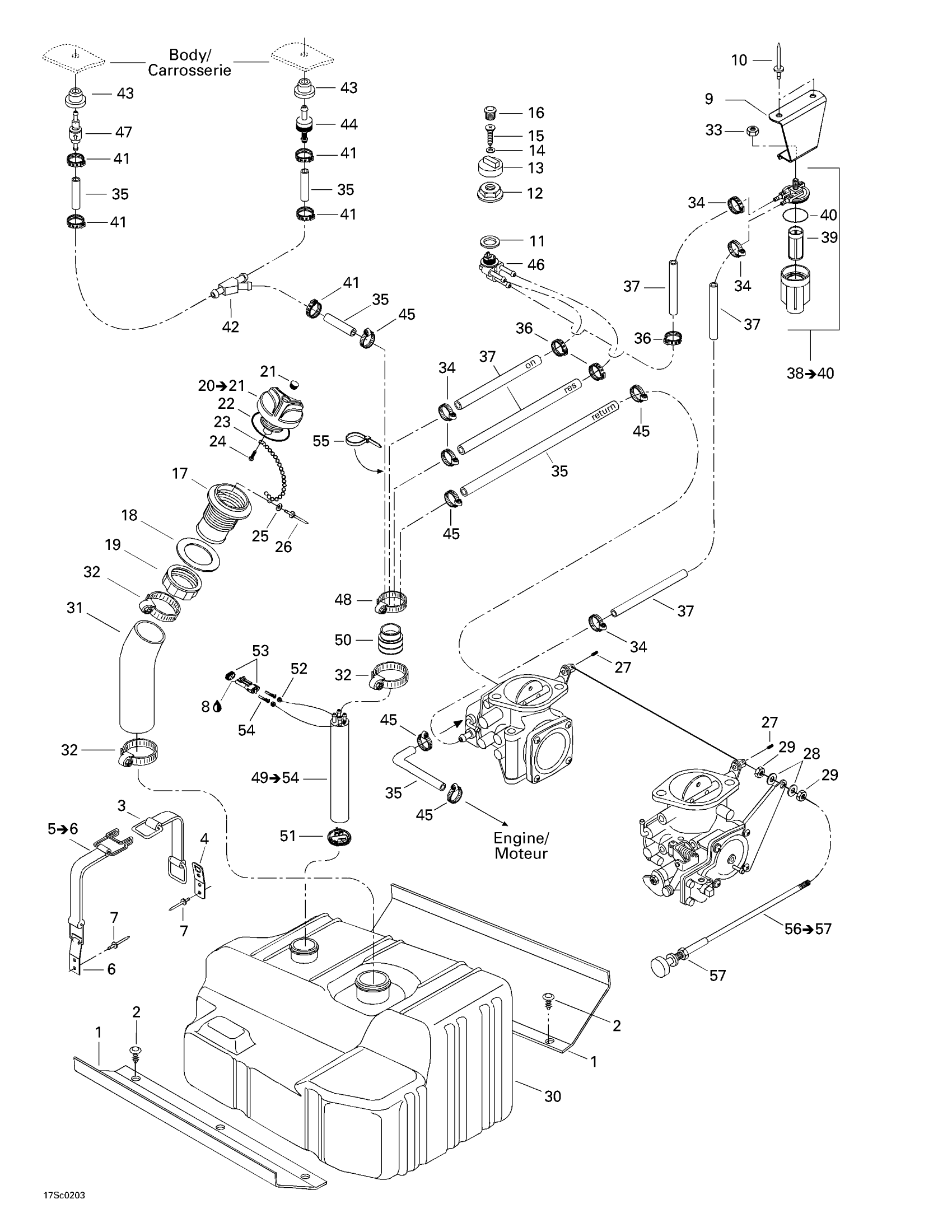

Sea-doo RX, 5579/5580/5581/5582, 2002 02- Fuel System Diagram

#

Description
Price

1

Rubber Pad

293830077

Unavailable

2

Black, Dart

293730006

$0.99

3

Fuel Tank Strap

293850036

$18.99

4

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

5

FUEL TANK STRAP - Call your local BRP dealership | Includes 10 to 12

293850037

Unavailable

6

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

7

Avdel Rivet 3/16"

293150037

$0.56

8

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

9

Fuel Filter Support

275500467

Unavailable

10

Pop Rivet 3/16"

293150043

$2.09

11

GASKET - Call your local BRP dealership

293250004

Unavailable

12

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

13

FUEL VALVE KNOB - Call your local BRP dealership

275500299

Unavailable

14

Flat Washer 4 mm

234040600

$0.55

15

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

16

Black, Cap

275500241

$3.49

17

Filler Neck, Fuel

275500231

$14.75

18

Gasket

293250029

$14.82

19

Filler Neck Nut, Fuel

211100012

$14.22

20

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

21

Black, Snap Cap

293000034

$9.39

22

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

23

Fuel Cap Chain

275500974

$19.99

24

Screw K40 X 10

241140060

$1.48

25

Flat Washer M3, Stainless

234032600

$0.55

26

Pop Rivet 1/8"

390407900

$1.49

27

Socket Set Screw M4 x 6

206540660

Unavailable

28

Stainless Flat Washer M6

234061600

$0.33

29

Hex. Nut M6

232160600

$1.15

30

Fuel Tank

275500291

Unavailable

31

Filler Hose Neck

275500485

Unavailable

32

Tridon Clamp

293650023

$13.49

33

Hex. Elastic Stop Nut M6

232561600

$1.15

34

Tridon Gear Clamp

293650171

$3.09

35

Was 275500549 Hose 1/4"

219704357

$194.99

36

Crimp Clamp

293650053

$3.09

37

HOSE 5/16 - Call your local BRP dealership

275500548

Unavailable

38

FUEL FILTER ASS'Y - Call your local BRP dealership | Includes 30 - 32.

275500358

Unavailable

39

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

40

O-Ring

275500090

$8.79

41

Oetiker Gear Clamp

293650025

$3.09

42

Y-Fitting

293710059

$9.69

43

Grommet

293720029

$1.59

44

Check Valve

275500398

$10.99

45

Tridon Gear Clamp

293650170

$1.99

46

FUEL VALVE - Call your local BRP dealership

275500554

Unavailable

47

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

48

Tridon Clamp

293650035

$7.29

49

BAFFLE - Call your local BRP dealership | Includes 6 - 11.

275500469

Unavailable

50

Tube Adapter

275500111

Unavailable

51

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

52

Wire Seal

278000218

$4.39

53

Male Connector, 2 Circuits

278000220

$15.49

54

Female Terminal

278000223

$3.19

55

Tie-Rap 180 mm

414115200

$0.11

56

CHOKE CABLE - Call your local BRP dealership | Includes 50 - 51.

270000383

Unavailable

57

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable
