- RX, 5579/5580/5581/5582, 2002
02- Carburetors

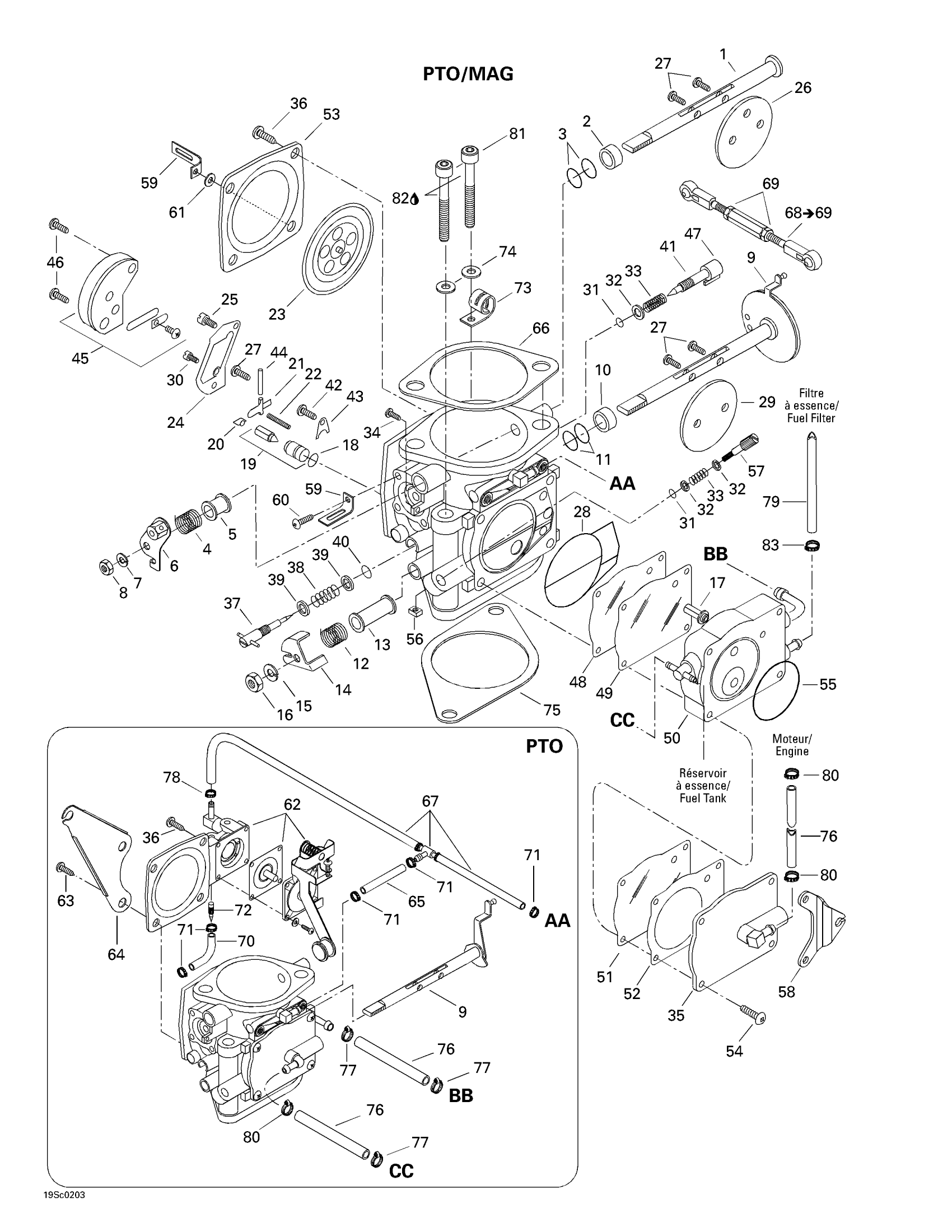

Sea-doo RX, 5579/5580/5581/5582, 2002 02- Carburetors Diagram
#
1
Carburetor BN46i-42-14 (MAG Side)
270500790
Unavailable
Carburetor BN46i-42-12 (P.T.O Side) | Includes 1 - 66.
270500417
Unavailable
1
Not Available As Spare Part - Friction Washer
Unavailable
2
RING - Call your local BRP dealership
270500239
Unavailable
3
SEALING RING - Call your local BRP dealership
270500234
Unavailable
4
Spring
270500382
Unavailable
5
Ring
270500381
Unavailable
6
Choke lever
270500431
Unavailable
7
Spring Washer
270500230
Unavailable
8
NUT - Call your local BRP dealership
270500229
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
10
Ring
270500353
Unavailable
Ring
270500435
Unavailable
11
Sealing Ring
270500222
Unavailable
12
Spring
270500379
Unavailable
Spring
270500413
Unavailable
13
Ring
270500378
Unavailable
14
Throttle Lever
270500436
Unavailable
Throttle Lever
270500412
Unavailable
15
SPRING WASHER - Call your local BRP dealership
270500011
Unavailable
16
Nut
270500376
Unavailable
17
FUEL FILTER - Call your local BRP dealership
270500115
Unavailable
18
O-RING - Call your local BRP dealership
270500127
Unavailable
19
Needle Valve 2.0
270500208
$31.99
20
CLIP - Call your local BRP dealership
270500129
Unavailable
21
NEEDLE VALVE LEVER - Call your local BRP dealership
270500128
Unavailable
22
Spring
270500313
Unavailable
23
DIAPHRAGM ASS'Y - Call your local BRP dealership
270500132
Unavailable
24
GASKET - Call your local BRP dealership
270500131
Unavailable
25
Main Jet 162.5
270500371
Unavailable
26
Not Available As Spare Part - Friction Washer
Unavailable
27
SCREW - Call your local BRP dealership
270500156
Unavailable
28
O-RING - Call your local BRP dealership
270500370
Unavailable
29
Not Available As Spare Part - Friction Washer
Unavailable
30
PILOT JET 75 - Call your local BRP dealership
270500427
Unavailable
31
O-RING - Call your local BRP dealership
270500144
Unavailable
O-RING - Call your local BRP dealership
270500144
Unavailable
32
Washer
270500136
Unavailable
Washer
270500136
Unavailable
33
SPRING - Call your local BRP dealership
270500091
Unavailable
SPRING - Call your local BRP dealership
270500091
Unavailable
34
Screw
270500228
Unavailable
35
Pump Cover
270500409
Unavailable
Pump Cover
270500405
Unavailable
36
Screw
270500243
Unavailable
Screw
270500322
Unavailable
37
IDLE ADJUSTING SCREW - Call your local BRP dealership
270500020
Unavailable
38
SPRING - Call your local BRP dealership
270500019
Unavailable
39
Washer
270500018
Unavailable
40
O-RING - Call your local BRP dealership
270500119
Unavailable
41
Adjuster Screw
270500113
Unavailable
42
Screw And Spring Washer
270500155
Unavailable
43
PLATE - Call your local BRP dealership
270500125
Unavailable
44
Pin
270500038
Unavailable
45
VALVE ASS'Y - Call your local BRP dealership
270500124
Unavailable
46
SCREW - Call your local BRP dealership
270500123
Unavailable
47
Cap
270500154
Unavailable
48
DIAPHRAGM - Call your local BRP dealership
270500369
Unavailable
49
DIAPHRAGM - Call your local BRP dealership
270500368
Unavailable
50
Body Pump Ass'y
270500439
Unavailable
51
DIAPHRAGM - Call your local BRP dealership
270500366
Unavailable
52
GASKET - Call your local BRP dealership
270500365
Unavailable
53
COVER - Call your local BRP dealership
270500133
Unavailable
54
Screw
270500303
Unavailable
55
O-Ring
270500363
Unavailable
56
Nut
270500249
Unavailable
57
Adjuster Screw
270500288
Unavailable
58
Cable Support
270500440
Unavailable
59
Plate
270500359
Unavailable
60
Screw
270500358
Unavailable
61
Washer
270500402
Unavailable
62
Diaphragm Cover
270500433
Unavailable
63
SCREW - Call your local BRP dealership
270500238
Unavailable
64
Bracket
270500403
Unavailable
65
Hose
270500342
Unavailable
66
GASKET - Call your local BRP dealership
270500384
Unavailable
67
H ose Ass'y
270500441
Unavailable
68
Carburator Linkage
270500319
Unavailable
69
Nut
270500351
Unavailable
Nut
270500352
Unavailable
70
Hose
270500442
Unavailable
71
Oetiker Gear Clamp
293650043
$3.39
72
Jet
270500443
Unavailable
73
Clip
293850018
Unavailable
74
Stainless, Flat Washer 8 mm
234081600
$0.55
75
GASKET - Call your local BRP dealership
293250135
Unavailable
76
Was 275500549 Hose 1/4"
219704357
$194.99
77
Oetiker Gear Clamp
293650025
$3.09
78
OETIKER CLAMP - Call your local BRP dealership
293650071
Unavailable
79
HOSE 5/16 - Call your local BRP dealership
275500548
Unavailable
80
Tridon Gear Clamp
293650170
$1.99
81
SOCKET HEAD SCREW M8 X 120, SCOTCHGRIP - Call your local BRP dealership
231182060
Unavailable
82
Synthetic Grease, 400 G
293550010
Unavailable
83
Tridon Gear Clamp
293650171
$3.09
