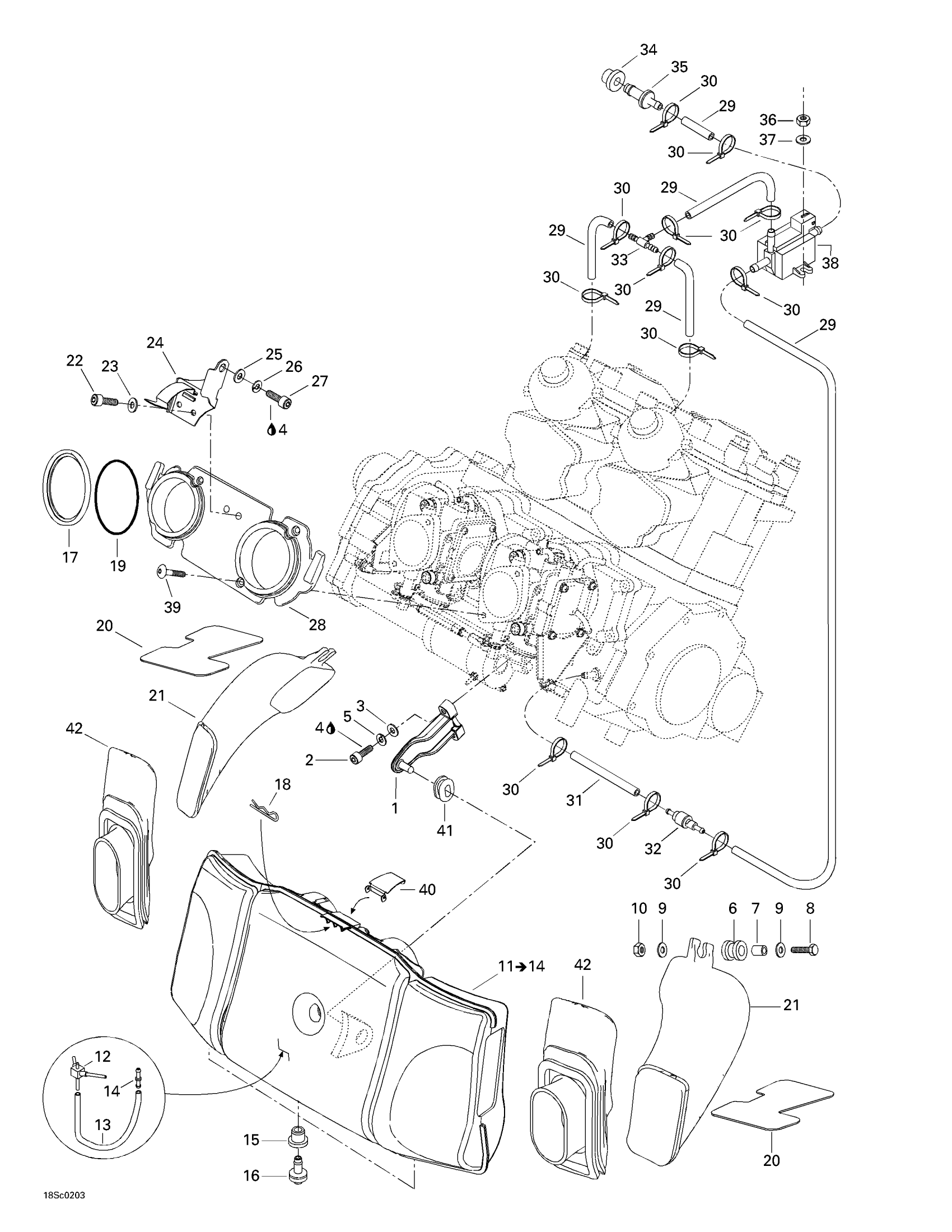

Sea-doo RX, 5579/5580/5581/5582, 2002 Air Intake System Diagram

#

Description
Price

1

Silencer Support

273000123

Unavailable

2

Socket Head Screw M6 X 35

205063560

$1.85

3

Stainless Flat Washer M6

234061600

$0.25

4

Loctite 243, 10 ml

293800060

$20.77

5

Lock Washer Helical M6

234161601

$0.92

6

UPPER INSULATOR - Call your local BRP dealership

278001260

Unavailable

7

SPACER - Call your local BRP dealership

272000074

Unavailable

8

Hex. Screw M6 X 35

207063560

$1.85

9

Flat Washer M6, Stainless

234062600

$0.64

10

Hex. Elastic Stop Nut M6

232561600

$0.92

11

Air Silencer

273000213

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Was 415080100 Fuel Line Primer 3,2mm

219704409

$9.15

14

CONNECTOR - Call your local BRP dealership

293710107

$0.93

15

GROMMET - Call your local BRP dealership

293720064

Unavailable

16

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

17

Gasket

293250122

$60.42

18

HAIR PIN - Call your local BRP dealership

250400015

Unavailable

19

O-Ring

293250065

Unavailable

20

PROTECTOR PAD - Call your local BRP dealership

273000165

Unavailable

21

HIGH AIR DUCT, PTO - Call your local BRP dealership

273000151

Unavailable

High Air Duct, Mag

273000150

Unavailable

22

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.49

23

Stainless Flat Washer M6

234061600

$0.25

24

HOLDER - Call your local BRP dealership

270000455

Unavailable

25

Flat Washer 8 mm, Stainless

234082600

$1.98

26

Lock Washer 8 mm, Stainless

234181601

$0.46

27

Socket Head Screw M8 X 16

205081660

Unavailable

28

Air Silencer Adaptor

270500383

Unavailable

29

Was 420660574 Pressure Hose 280 mm

219704352

$202.21

30

Tie Wrap 94 mm | 4X4

293750001

$0.83

31

Hose 6 Mm 15000Mm Long

219704360

$104.62

32

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

33

T-Fitting

293710068

$6.59

34

Grommet

293720029

$1.13

35

Fitting

293700031

Unavailable

36

Hex. Elastic Nut M5 | X

232551600

$0.91

37

Flat Washer M5, Stainless

234051600

$0.64

38

Solenoid Valve

270600005

$45.49

39

Screw

270500357

Unavailable

40

SUPPORT PLATE - Call your local BRP dealership

273000204

Unavailable

41

Cable Grommet

293720052

Unavailable

42

INTAKE ADAPTOR, PTO - Call your local BRP dealership

273000163

Unavailable

INTAKE ADAPTOR, MAG - Call your local BRP dealership

273000164

Unavailable
