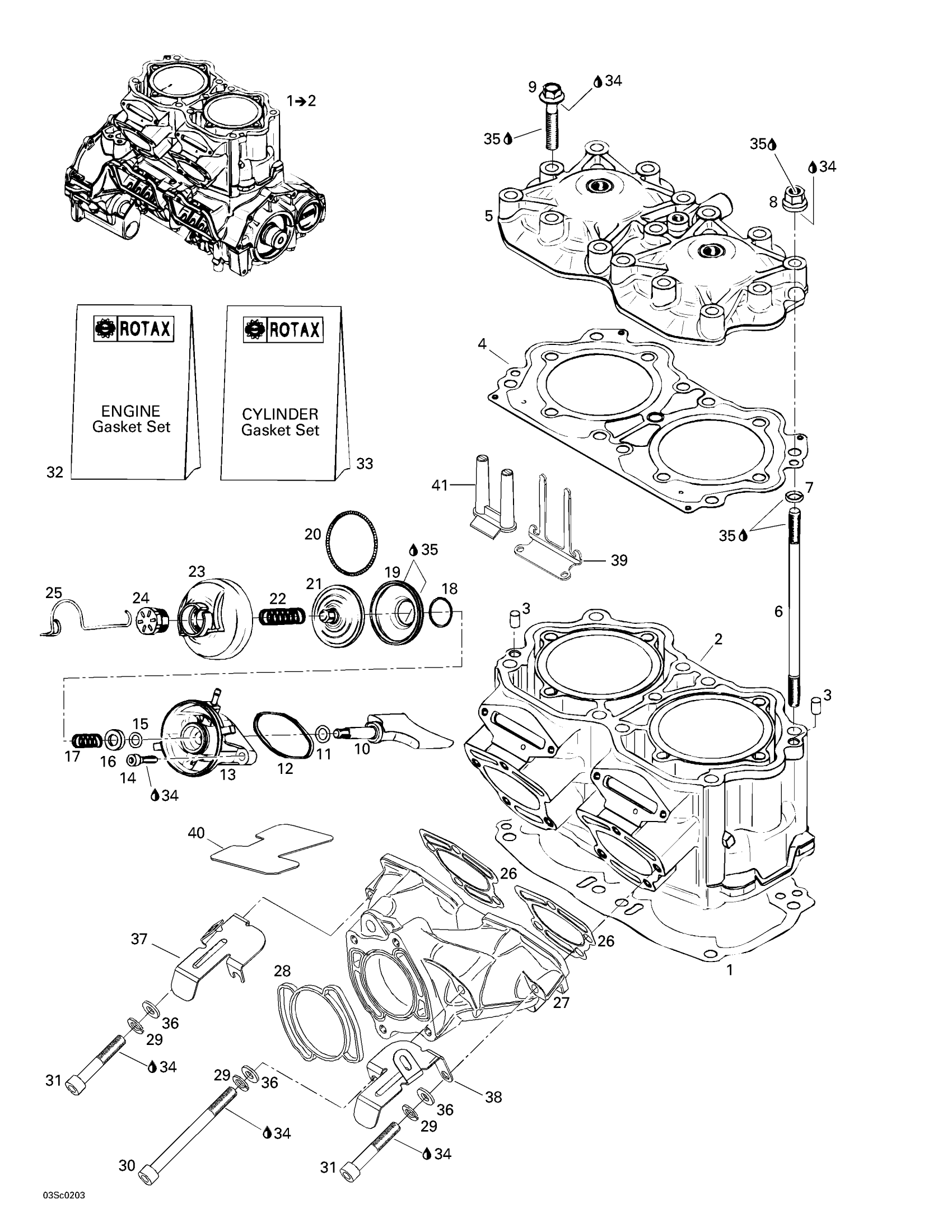

Sea-doo RX, 5579/5580/5581/5582, 2002 Cylinder, Exhaust Manifold Diagram

#

Description
Price

1

Short Block Ass'y | Includes 1 - 9.

290094703

Unavailable

1

REBUILD-CRANKCASE-CYLINDER PACKAGE 947 - Call your local BRP dealership

421000562

Unavailable

1

GASKET CYLINDER 0.8 MM - Call your local BRP dealership

420931907

Unavailable

Gasket Cylinder 0.6 mm

290931901

Unavailable

Gasket Cylinder 0.5 mm

290931900

Unavailable

2

Cylinder with Sleeve (Silver)

290613561

Unavailable

2

REBUILD-CYLINDER-947 2000 - Call your local BRP dealership

421000561

Unavailable

3

Center Pin 8 X 12

420632010

$4.01

4

CYLINDER HEAD GASKET 947 - Call your local BRP dealership

420931702

Unavailable

5

Head Cylinder (Silver)

290923921

Unavailable

6

STUD M10 X 200 - Call your local BRP dealership

290640232

Unavailable

7

O-RING - Call your local BRP dealership

290850460

Unavailable

8

Stud Nut M10

290842863

Unavailable

9

Screw Hex. Flange M10 x 60

290841708

Unavailable

10

Exhaust Valve

290854410

Unavailable

11

O-Ring

420931765

$0.98

12

Rubber Gasket

290931670

Unavailable

13

Valve Housing

290854435

Unavailable

14

Socket Head Screw M6 X 25

205062560

$1.69

15

O-Ring

420931765

$0.98

16

Support Ring

290926220

Unavailable

17

COMPRESSION SPRING - Call your local BRP dealership

420838260

Unavailable

18

Hose Spring This part replaces 420838253.

420838255

$7.41

19

Exhaust Bellows

420260723

$42.49

20

Hose Spring This part replaces 420239048.

420939281

$7.41

21

Exhaust Valve

290854446

Unavailable

22

Compression Spring

290939137

Unavailable

23

Valve Cover This part replaces 420911558.

420911559

$29.49

24

Adjuster Screw

420241221

$14.22

25

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

26

Gasket

290931653

Unavailable

27

Exhaust Manifold

420979607

$399.99

28

Exhaust Gasket

290931990

Unavailable

29

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

30

Socket Head Screw M10 x 110

290941483

Unavailable

31

SOCKET HEAD SCREW M10 X 60 - Call your local BRP dealership

205006060

Unavailable

32

Engine Gasket Set (Not Shown)

290889150

Unavailable

33

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290889155

Unavailable

34

Loctite 243, 10 ml

293800060

$21.49

35

Dow Corning 111, 150 g

413707000

$59.99

36

Flat Washer 10 mm, Stainless

234000600

$1.46

37

DUCT SUPPORT, MAG - Call your local BRP dealership

273000170

Unavailable

38

Duct Support, PTO

273000169

Unavailable

39

GROUND PLATE - Call your local BRP dealership

278001662

Unavailable

40

PROTECTOR PAD - Call your local BRP dealership

273000165

Unavailable

41

INSULATOR - Call your local BRP dealership

278001512

Unavailable
