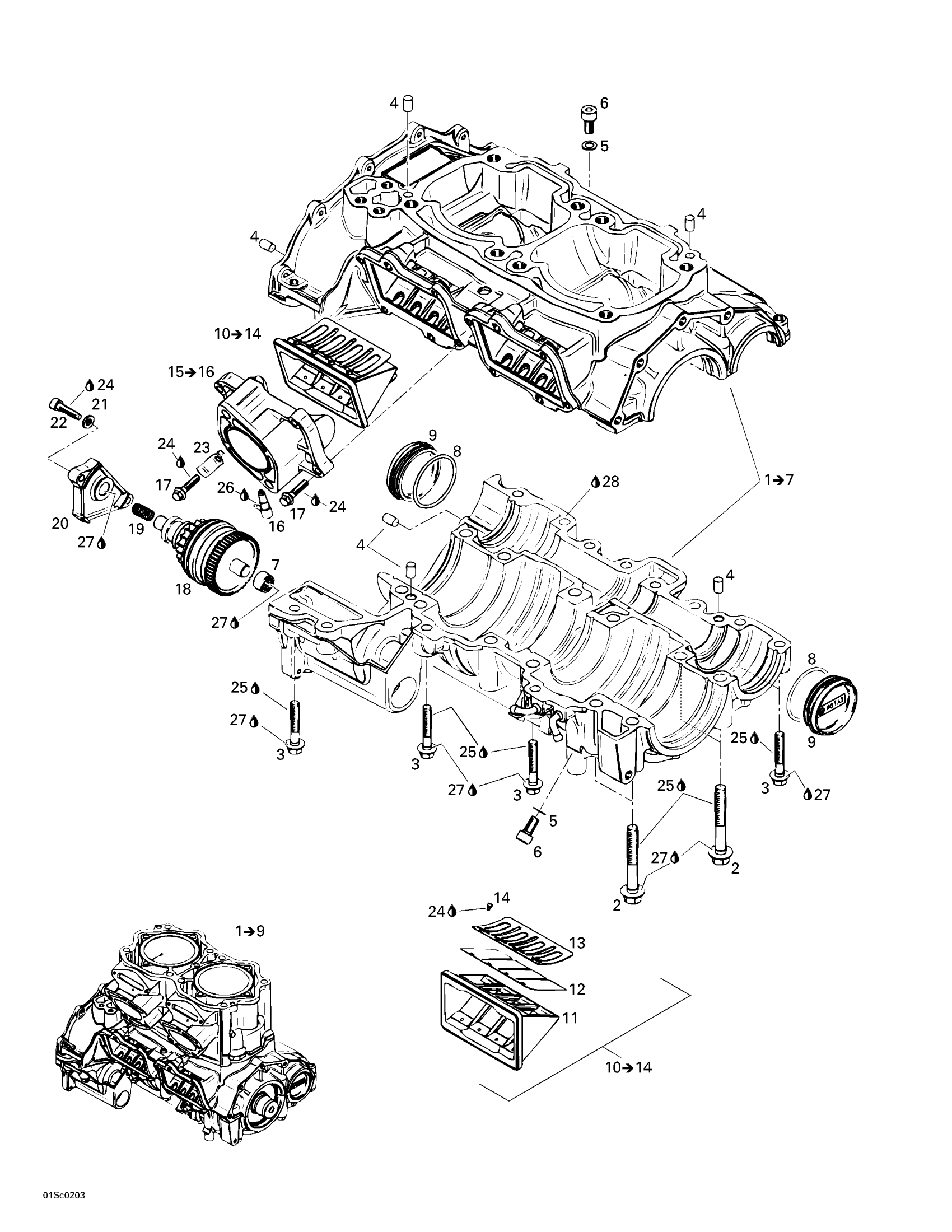

Sea-doo RX, 5579/5580/5581/5582, 2002 Crankcase Diagram

#

Description
Price

1

Short Block Ass'y | Includes 1 - 9.

290094703

Unavailable

1

REBUILD-CRANKCASE-CYLINDER PACKAGE 947 - Call your local BRP dealership

421000562

Unavailable

1

Crankcase Ass'y <<947>> (Silver) | Includes 1 - 7.

290887754

Unavailable

2

Flange Screw M10 x 73,5

290941333

Unavailable

3

FLANGE SCREW M8 X 45 - Call your local BRP dealership

290940638

Unavailable

4

Center Pin 8 X 12

420632010

$4.01

5

Sealing Ring

420950141

$2.00

6

Socket Head Screw M8 X 16

205081660

Unavailable

7

Needle Bushing

420232482

$20.99

8

O-Ring

290230300

Unavailable

9

Bearing Cover

290811200

Unavailable

10

REED VALVE ASS'Y - Call your local BRP dealership | Includes 23 to 27

420924602

$189.99

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Reed Pedal

290924612

Unavailable

13

Reed Pedal Stop

290924617

Unavailable

14

Phillips Screw M3 X 5

420941215

$1.69

15

Carburator Adapter Ass'y | Includes 14 - 15.

290867833

Unavailable

16

Check Valve

420956511

$35.99

17

Hex. Flange Screw M6 x 25

290240033

Unavailable

18

Starter Drive Ass'y

420888042

$369.99

19

Spring

420938204

$7.65

20

Cover

290811210

Unavailable

21

SPRING WASHER - Call your local BRP dealership

420845020

Unavailable

22

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.48

23

WIRE SUPPORT - Call your local BRP dealership

290953330

Unavailable

24

Loctite 243, 10 ml

293800060

$21.49

25

Was 413702700 Loctite 515, 50 ml

219704462

$33.99

26

Sealant Loctite 648

219703000

$45.99

27

Dow Corning 111, 150 g

413707000

$59.99

28

Loctite 5910, 300 ml

293800081

$57.99

29

Engine Gasket Set (Not Shown)

290889150

Unavailable

30

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290889155

Unavailable
