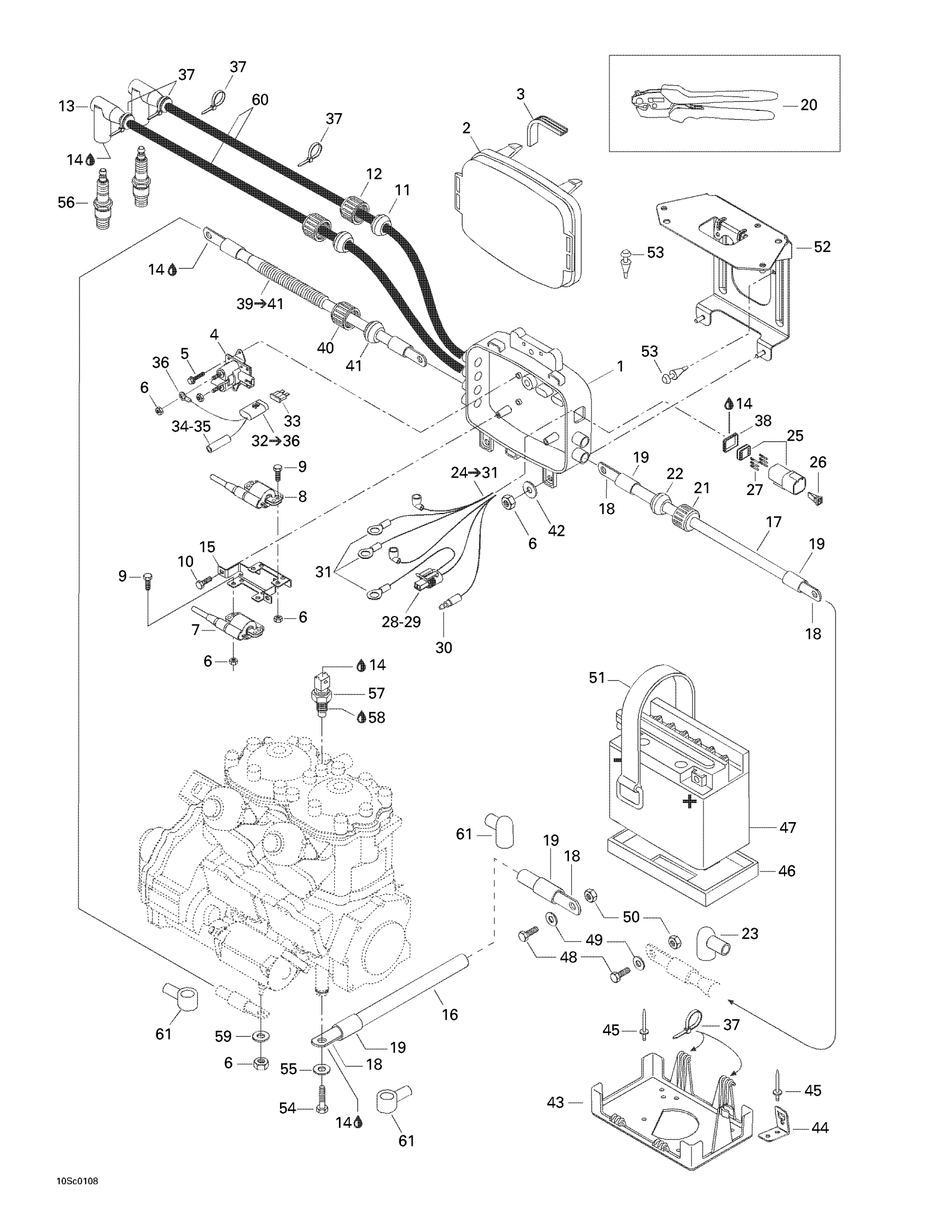

Sea-doo RX, 5532/5533/5542/5543, 2001 Rear Electrical Box Diagram

#

Description
Price

1

Electrical Box Base

278001712

Unavailable

2

ELECTRIC BOX COVER - Call your local BRP dealership

278001433

Unavailable

3

GASKET - Call your local BRP dealership

278001173

Unavailable

4

Starter Relay

278003012

$40.27

5

Hex. Flange Screw M6 X 10

210261040

$1.43

6

Hex. Elastic Stop Nut M6

232561600

$1.06

7

Ignition Coil (MAG)

278001415

Unavailable

8

IGNITION COIL (PTO) - Call your local BRP dealership

278001573

Unavailable

9

Hex. Forming Screw M6 X 20

207162060

$1.18

10

Hex. Screw M6 X 16

209561640

Unavailable

11

Grommet

278000682

Unavailable

12

Electric Wire Cap

278000100

Unavailable

13

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

14

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

15

Ignition Coil Support

278001421

Unavailable

16

Ground Cable, Black | Includes 18,19,41

278001489

Unavailable

17

Starter Positive Cable, Red | Includes 18,19,21,22,40

278001438

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Electric Wire Cap

278000100

Unavailable

22

GROMMET - Call your local BRP dealership

278000098

Unavailable

23

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

24

Electric Box Harness | Includes 24 - 31.

278001422

Unavailable

25

Male Terminal Housing, 6 Circuits

710001539

$17.88

26

Female Lock, 6 Circuits

278000735

$2.93

27

Male Terminal

278000631

$4.00

28

Male Connector, 2 Circuits

278001113

$14.52

29

Female Terminal

278001114

$2.93

30

Male Terminal

278000230

$4.00

31

Ring Terminal

278000300

Unavailable

32

Fuse Harness (15 Amperes) | Includes 59 - 63.

278001212

Unavailable

33

Fuse, 15 Amperes

278000343

$3.12

34

Female Terminal | DS 650 X

278001009

$2.93

35

Insulated Sheath

278001007

$3.12

36

Ring Terminal

278000300

Unavailable

37

Tie Wrap 142 mm

293750002

$1.01

38

Gasket

293200030

Unavailable

39

Starter Positive Cable, Red | Includes 34,35,75,89,90

278001091

Unavailable

40

Electric Wire Cap

278000100

Unavailable

41

GROMMET - Call your local BRP dealership

278000098

Unavailable

42

Flat Washer M6, Stainless

234062600

$0.73

43

Battery Support

278001430

Unavailable

44

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

45

Avdel Rivet 3/16"

293150037

$0.54

46

Battery Lower Pad

278001234

Unavailable

47

Battery 19A | Includes 5 to 8

278001756

$144.75

48

Hex. Screw M6 X 16

207161644

$0.70

49

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

50

Hex. Nut M6

232061414

$0.51

51

Retainer Strap

293850097

$10.63

52

BOX SUPPORT - Call your local BRP dealership

278001615

Unavailable

53

Rubber Bumper

293830005

$6.12

54

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.78

55

Flat Washer 10 mm, Stainless

234001600

$1.04

56

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.63

57

Temperature Sensor

278002895

$36.54

58

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

59

Stainless Flat Washer M6

234061600

$0.28

60

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

61

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable
