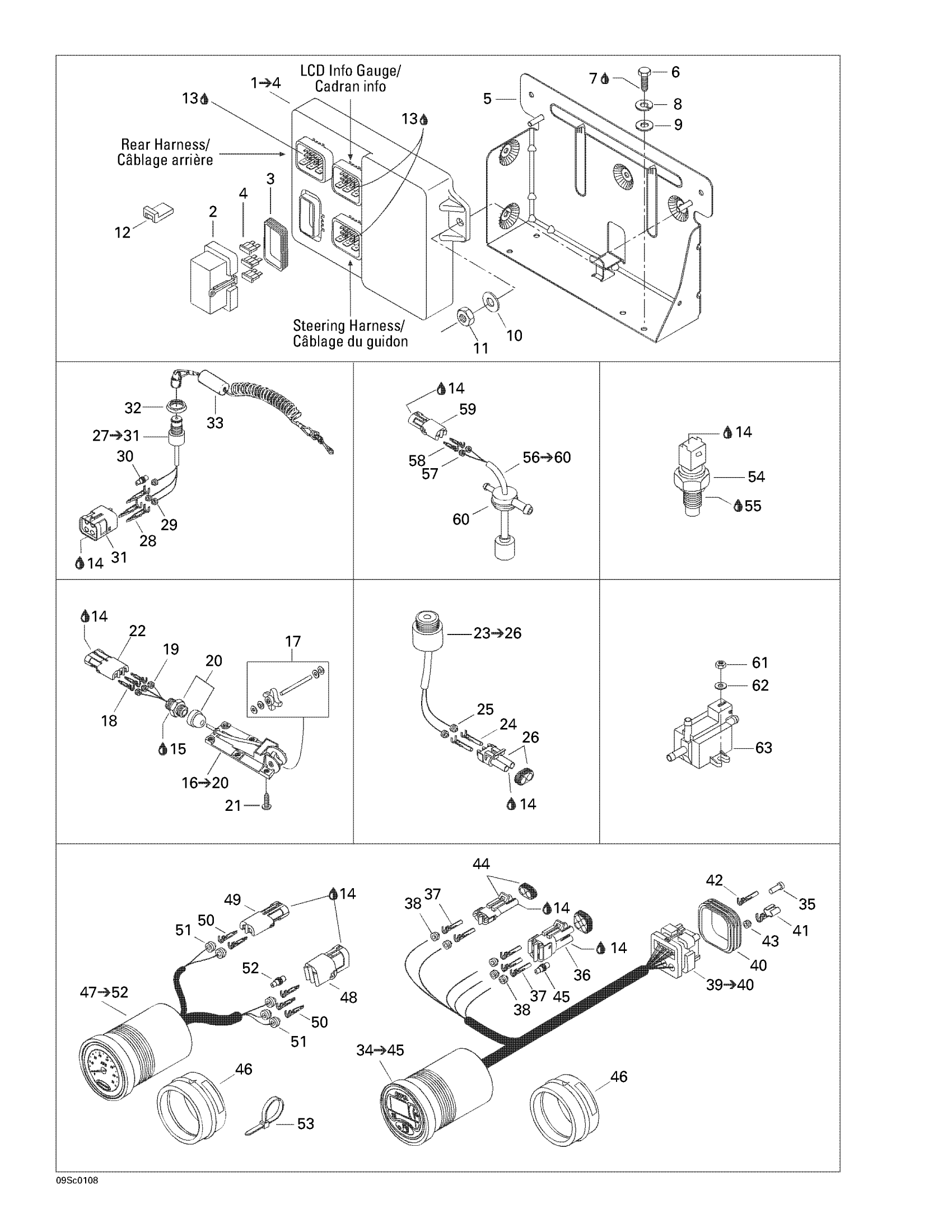

Sea-doo RX, 5532/5533/5542/5543, 2001 Electronic Module And Electrical Accessories Diagram

#

Description
Price

1

Electronic Module Ass'y | Includes 1 - 4.

278001718

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

3

Cover Seal

278001070

Unavailable

4

Fuse, 15 Amperes

278000343

$3.12

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

Fuse, 5 Amperes | CE

278000344

$3.12

5

Module Support

278001563

Unavailable

6

Hex. Plastite Screw M4, 8 X 20

243042060

Unavailable

7

Loctite 271, 10 ml

293800005

$23.85

8

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

9

Flat Washer 5 mm, Stainless

234052600

$0.73

10

Flat Washer M6, Stainless

234062600

$0.73

11

Hex. Elastic Stop Nut M6

232561600

$1.06

12

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

13

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

14

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

15

Was 293800013 Loctite 56765

219704454

$63.40

16

Speed Sensor | Includes 26 to 30 / LE

278001595

Unavailable

17

Paddle Wheel Kit

295500108

Unavailable

18

Male Terminal | XT Models

278000222

$2.93

19

Wire Seal

278000218

$4.00

20

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

21

Phillips Screw M5 x 12

250000319

$1.18

22

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

23

Buzzer Ass'y | Includes 11 - 14.

278000978

Unavailable

24

Female Terminal

278000223

$2.93

25

Wire Seal

278000218

$4.00

26

Male Connector, 2 Circuits

278000220

$12.66

27

Safety Switch | Includes 15 - 19.

278000977

Unavailable

28

Male Terminal | XT Models

278000222

$2.93

29

Wire Seal

278000218

$4.00

30

Wire Seal

278000216

$2.93

31

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

32

Safety Nut (DESS Switch)

278002963

$3.12

33

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

Unavailable

34

LCD Info Gauge | Includes 34 - 45.

278001471

Unavailable

35

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

36

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

37

Female Terminal

278000223

$2.93

38

Wire Seal

278001065

$5.85

39

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

40

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

41

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

42

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

43

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

44

Male Connector, 2 Circuits

278000220

$12.66

45

Wire Seal

278000216

$2.93

46

Gauge Support

293720047

Unavailable

47

Speedometer | Includes 22 - 27.

278001359

Unavailable

48

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

49

Female Housing, 2 Circuits

278000217

$8.72

50

Male Terminal | XT Models

278000222

$2.93

51

Wire Seal

278001065

$5.85

52

Wire Seal

278000216

$2.93

53

Tie-Rap 180 mm

414115200

$0.10

54

Temperature Sensor

278002895

$36.54

55

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

56

Oil Sensor | Includes 44 to 48

278001402

Unavailable

57

Wire Seal

278000218

$4.00

58

Male Terminal | XT Models

278000222

$2.93

59

Female Housing, 2 Circuits

278000217

$8.72

60

Grommet

293720008

$12.52

61

Hex. Elastic Nut M5 | X

232551600

$1.04

62

Flat Washer M5, Stainless

234051600

$0.73

63

Solenoid Valve

270600005

$45.49
