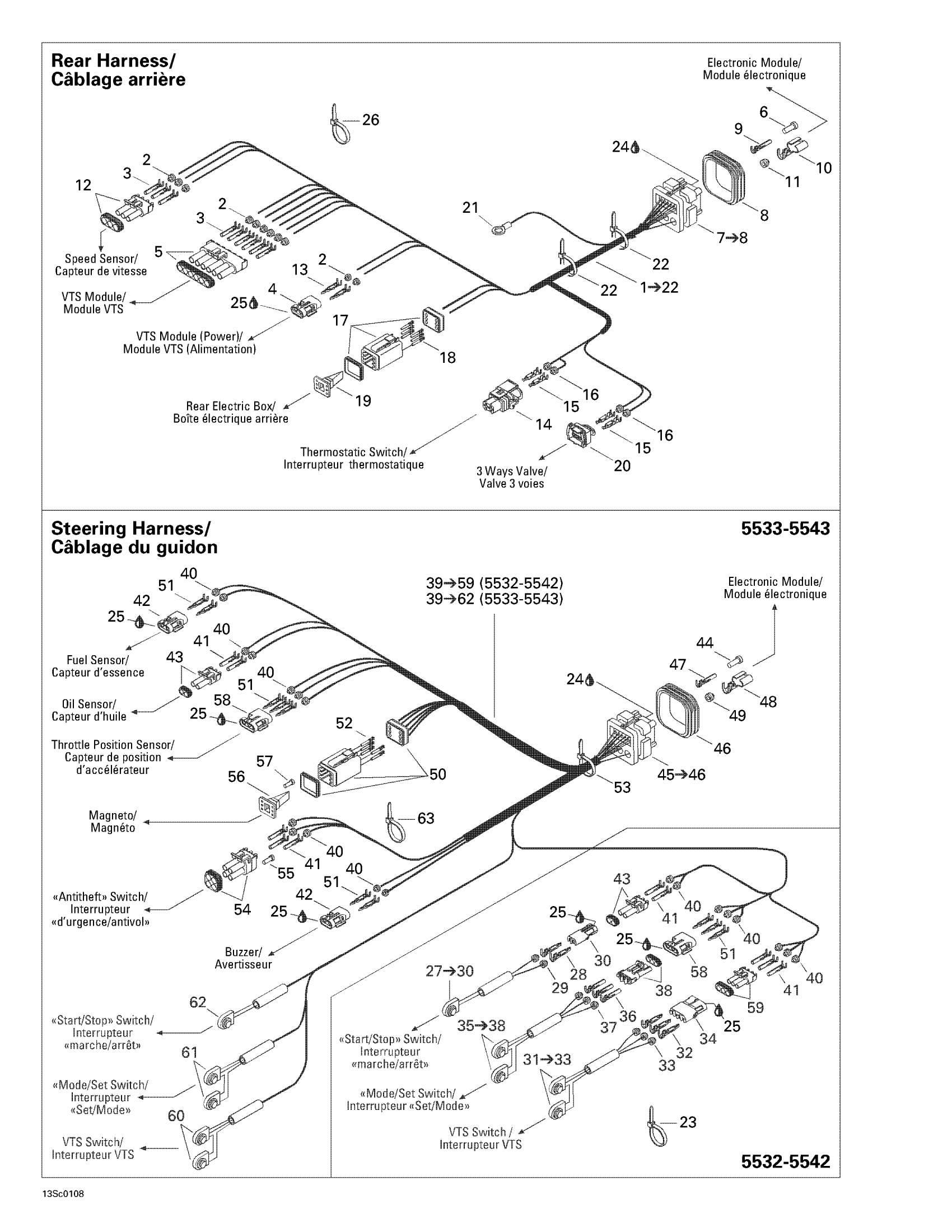

Sea-doo RX, 5532/5533/5542/5543, 2001 Electrical Harness Diagram

#

Description
Price

1

Rear Harness | Includes 1 - 22.

278001555

Unavailable

2

Wire Seal

278000218

$4.00

3

Female Terminal

278000223

$2.93

4

Female Housing, 2 Circuits

278000217

$8.72

5

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

6

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

7

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

8

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

9

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

10

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

11

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

12

Male Housing, 3 Circuits

278000273

$8.72

13

Male Terminal

409004300

$5.30

14

Male Housing, 2 Circuits

278001005

$17.88

15

Female Terminal

278000998

$4.00

16

Wire Seal

278000999

$2.93

17

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

18

Female Terminal

278000632

$1.94

19

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

20

Male Connector, 2 Circuits

278001003

$43.25

21

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

22

Tie Wrap 142 mm

293750002

$1.01

23

Tie Wrap 142 mm

293750002

$1.01

24

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

25

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

26

Tie Wrap 368 mm

293750008

$0.97

27

Ignition Switch Ass'y (Stop / Start) | Includes 27 - 30.

278001358

Unavailable

28

Male Terminal | XT Models

278000222

$2.93

29

Wire Seal

278000218

$4.00

30

Female Housing, 2 Circuits

278000217

$8.72

31

VTS Switch | Includes 53 - 55.

278001533

Unavailable

32

Male Terminal | XT Models

278000222

$2.93

33

Wire Seal

278000218

$4.00

34

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

35

Mode/Set Switch | Includes 1 - 3.

278001534

Unavailable

36

Female Terminal

278000223

$2.93

37

Wire Seal

278000218

$4.00

38

Male Housing, 3 Circuits

278000273

$8.72

39

Steering Harness (5579-5581) | Includes 39 - 59.

278001575

Unavailable

39

Steering Harness (5580-5582) | Includes 39 - 62.

278001557

Unavailable

40

Wire Seal

278000218

$4.00

Wire Seal

278000218

$4.00

41

Female Terminal

278000223

$2.93

Female Terminal

278000223

$2.93

42

Female Housing, 2 Circuits

278000217

$8.72

43

Male Connector, 2 Circuits

278000220

$12.66

Male Connector, 2 Circuits

278000220

$12.66

44

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

45

Male Terminal Housing, 26 Circuits

278001062

Unavailable

46

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

47

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

48

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

49

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

50

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

51

Male Terminal | XT Models

278000222

$2.93

Male Terminal | XT Models

278000222

$2.93

52

Female Terminal

278000632

$1.94

53

Tie Wrap 142 mm

293750002

$1.01

54

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

55

Wire Seal

278000216

$2.93

56

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

57

Sealing Cap

293000052

$2.93

58

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

59

Male Housing, 3 Circuits

278000273

$8.72

60

VTS Switch (5580-5582)

278001404

Unavailable

61

<> Switch

278001375

Unavailable

62

Stop/Start Switch Ass'y

278001403

Unavailable

63

Tie-Rap 180 mm

414115200

$0.10
