Partiron

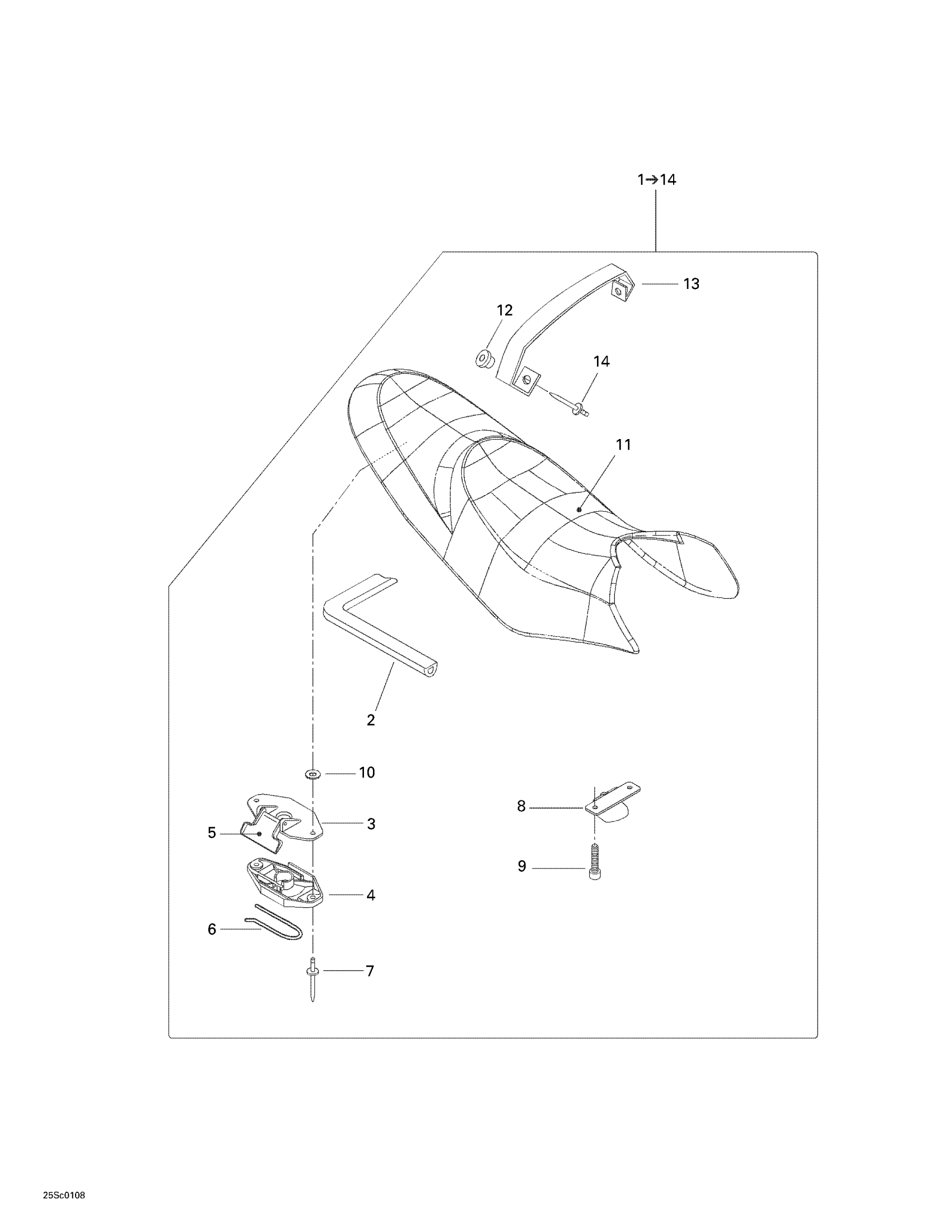

Sea-doo RX, 5532/5533/5542/5543, 2001 Seat Diagram

#

Description
Price

1

Seat Ass'y | Includes 1 - 14. RX DI BLUE/BLEU.

269000703

Unavailable

Seat Ass'y | RX DI 5536/5537.

269000578

Unavailable

2

Was 293200062 Seal

219704366

$70.87

3

Latch Ass'y

269700109

$23.10

4

Latch Ass'y

269700109

$23.10

5

Latch Ass'y

269700109

$23.10

6

Latch Spring

269700017

$8.34

7

RIVET 1/4 X 5/8 - Call your local BRP dealership

293150074

Unavailable

8

Seat Hook

291001485

Unavailable

9

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.43

10

Stainless Flat Washer M6

234061600

$0.28

11

Cover and Foam | RX DI BLUE/BLEU.

269000704

Unavailable

Cover and Foam | RX DI 5536/5537.

269000621

Unavailable

12

Grommet

293720067

$10.55

13

Seat Strap | RX DI BLUE/BLEU.

269000705

Unavailable

Seat Strap, Metallic Pewter

269000622

Unavailable

14

RIVET_POP 1/4 X ,725 - Call your local BRP dealership

293150078

Unavailable
