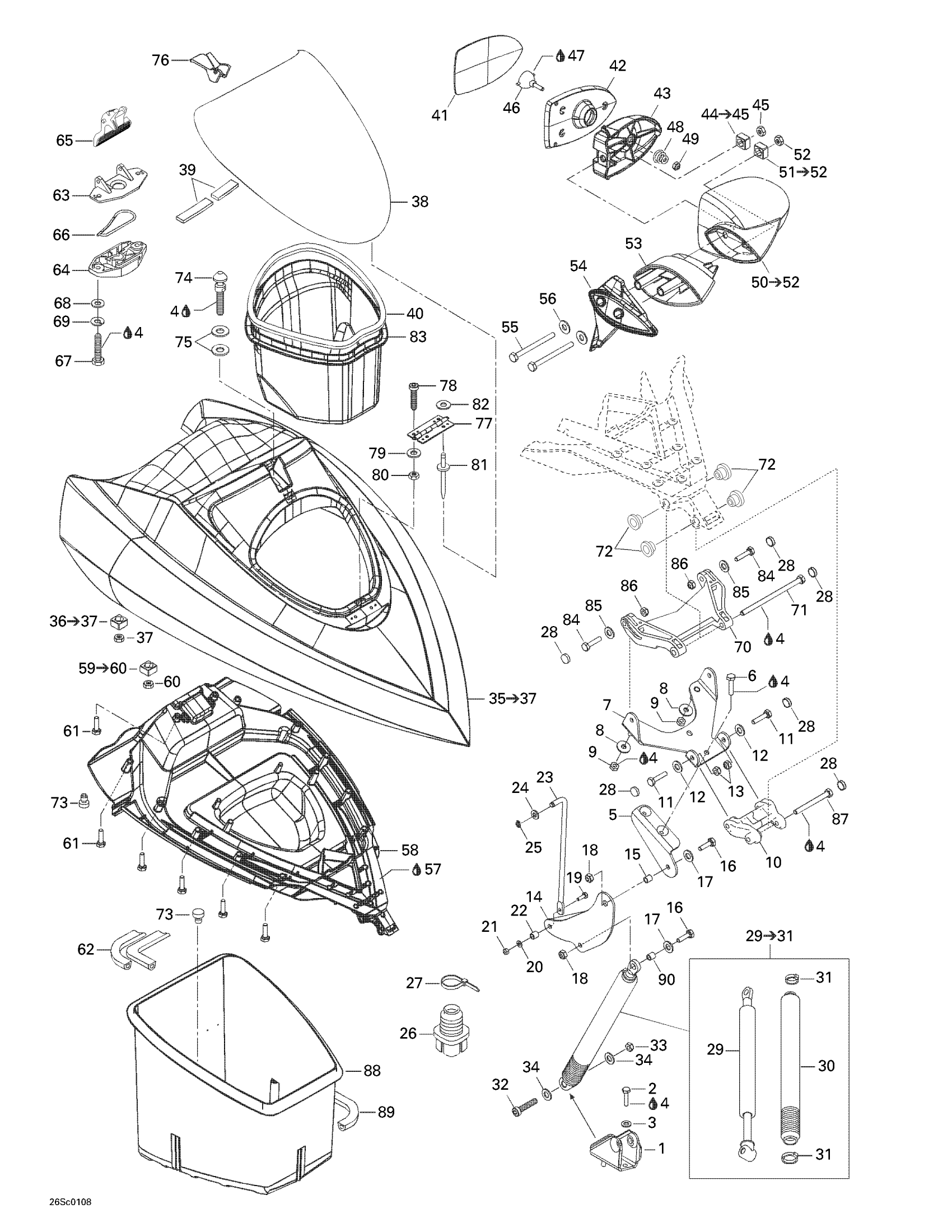

Sea-doo RX, 5532/5533/5542/5543, 2001 Front Storage Compartment Diagram

#

Description
Price

1

Shock Support

291001013

Unavailable

2

Hex. Screw M6 X 25

207162560

$1.40

3

Lock Washer Helical M6

234161601

$1.06

4

Loctite 243, 10 ml

293800060

$21.49

5

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

6

Hex. Forming Screw M6 X 20

207162060

$1.18

7

Pivot Support

269500708

Unavailable

8

Flat Washer M6, Stainless

234062600

$0.73

9

Hex. Elastic Stop Nut M6

232561600

$1.06

10

FRONT ARM - Call your local BRP dealership

269500704

Unavailable

11

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

12

Stainless Flat Washer M6

234061600

$0.28

13

Hex. Elastic Stop Nut M6

232561600

$1.06

14

Lever

269500840

Unavailable

15

Spacer

291000536

Unavailable

16

Hex. Forming Screw M6 X 20

207162060

$1.18

17

Flat Washer M6, Stainless

234062600

$0.73

18

Hex. Elastic Stop Nut M6

232561600

$1.06

19

Hex. Screw M4 X 16 | Europe

207141660

$1.40

20

Flat Washer 4 mm, Stainless

234041600

$1.04

21

Elastic Stop Nut M4

232541600

$1.06

22

Spacer

269500841

Unavailable

23

ROD - Call your local BRP dealership

269500842

Unavailable

24

Stainless Flat Washer M6

234061600

$0.28

25

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

26

Cable Grommet

293720063

Unavailable

27

Tie-Rap 180 mm

414115200

$0.10

28

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

29

GAZ SHOCK ASS'Y - Call your local BRP dealership | Includes 26 - 28.

269500843

Unavailable

30

Bellow

269500845

Unavailable

31

Tie Wrap 94 mm | 4X4

293750001

$0.96

32

Socket Head Screw M6 x 45 (Scotch Grip)

205564560

Unavailable

33

Nut M6 | Model-Australie, Brezil, Europe

232361600

$4.13

34

Flat Washer M6, Stainless

234062600

$0.73

35

Cover (Mazatlan Blue) | Includes 32 - 34. RX DI BLUE/BLEU.

269500891

Unavailable

Cover (Metallic Pewter) | RX DI 5536/5537.

269500903

Unavailable

36

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

37

Hex. Nut M6

232061600

$1.04

38

Access Cover (Mazatlan Blue) | RX DI 5534/5535.

269500902

Unavailable

Access Cover (Metallic Pewter) | RX DI 5536/5537.

269500700

Unavailable

39

Neoprene Seal (1PAC=3M)

219704364

$26.09

40

Was 293200017 Neoprene Seal

219704365

$135.79

41

RH Mirror

269500687

Unavailable

LH MIRROR - Call your local BRP dealership

269500788

Unavailable

42

Frame Mirror

269500697

Unavailable

43

Housing Support | WAKE

269500807

Unavailable

44

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

45

Hex. Elastic Nut M8

232581600

$1.43

46

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

47

Synthetic Grease, 400 G

293550010

Unavailable

48

Mirror Spring

269500453

$9.15

49

Hex. Elastic Stop Nut M6

232561600

$1.06

50

RH Mirror Shell (Mazatlan Blue) | Includes 50 - 52. RX (BLUE/BLEU).

269501893

Unavailable

RH Mirror Shell (Metallic Pewter) | RX DI 5536/5537.

269501023

Unavailable

LH mirror shell | BLUE (B-544)

269500895

Unavailable

LH Mirror Shell (Metallic Pewter) | RX DI 5536/5537.

269501026

Unavailable

51

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

52

Hex. Elastic Nut M8

232581600

$1.43

53

RH Mirror Support | BLUE (B-544) GTX 4-TEC 6125/6126.

269500897

Unavailable

RH Mirror Support (Metallic Pewter) | RX DI 5536/5537.

269500818

Unavailable

LH Mirror Support | BLUE (B-544)

269500899

Unavailable

LH Mirror Support (Metallic Pewter) | RX DI 5536/5537.

269500819

Unavailable

54

RH Spacer | LE

269500792

Unavailable

LH Spacer | LE

269500793

Unavailable

55

HEX. SCREW M8 X 120 - Call your local BRP dealership

230082060

Unavailable

56

Flat Washer 8 mm, Stainless

234082600

$2.27

57

Glue Tube, Loctite 454, 20 G

413708300

$58.18

58

Lower Strorage Cover

269500702

Unavailable

59

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

60

Hex. Nut M6

232061600

$1.04

61

Hex. Flange Screw K40 X 13

241141360

$0.64

62

Was 293200017 Neoprene Seal

219704365

$135.79

63

Latch Ass'y

269700109

$23.10

64

Latch Ass'y

269700109

$23.10

65

Latch Ass'y

269700109

$23.10

66

Latch Spring

269700017

$8.34

67

Hex. Screw M6 X 30

207063060

$1.73

68

Stainless Flat Washer M6

234061600

$0.28

69

Lock Washer Helical M6

234161601

$1.06

70

REAR ARM - Call your local BRP dealership

269500705

Unavailable

71

Hex. Screw M6 X 100

230060060

$6.99

72

Sleeve

269500706

$4.30

73

Rubber Bumper

293830005

$6.12

74

ANCHORING STUD - Call your local BRP dealership

291001242

Unavailable

75

Flat Washer M6, Stainless

234062600

$0.73

76

Latch

269501487

$14.90

77

HINGE - Call your local BRP dealership

269500338

Unavailable

78

Socket Head Screw M5 X 16

205451660

$1.04

79

Flat Washer 5 mm, Stainless

234052600

$0.73

80

Hex. Elastic Nut M5 | X

232551600

$1.04

81

Pop Rivet 3/16"

204000081

$1.31

82

Flat Washer 5 mm, Stainless

234052600

$0.73

83

GLOVES BOX - Call your local BRP dealership

269500339

Unavailable

84

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

85

Stainless Flat Washer M6

234061600

$0.28

86

Hex. Elastic Stop Nut M6

232561600

$1.06

87

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

Unavailable

88

STORAGE TRAY - Call your local BRP dealership

269500691

Unavailable

89

Seal Tray 1000Mm Long

219704368

$12.30

90

Not Available As Spare Part - Friction Washer

Unavailable
