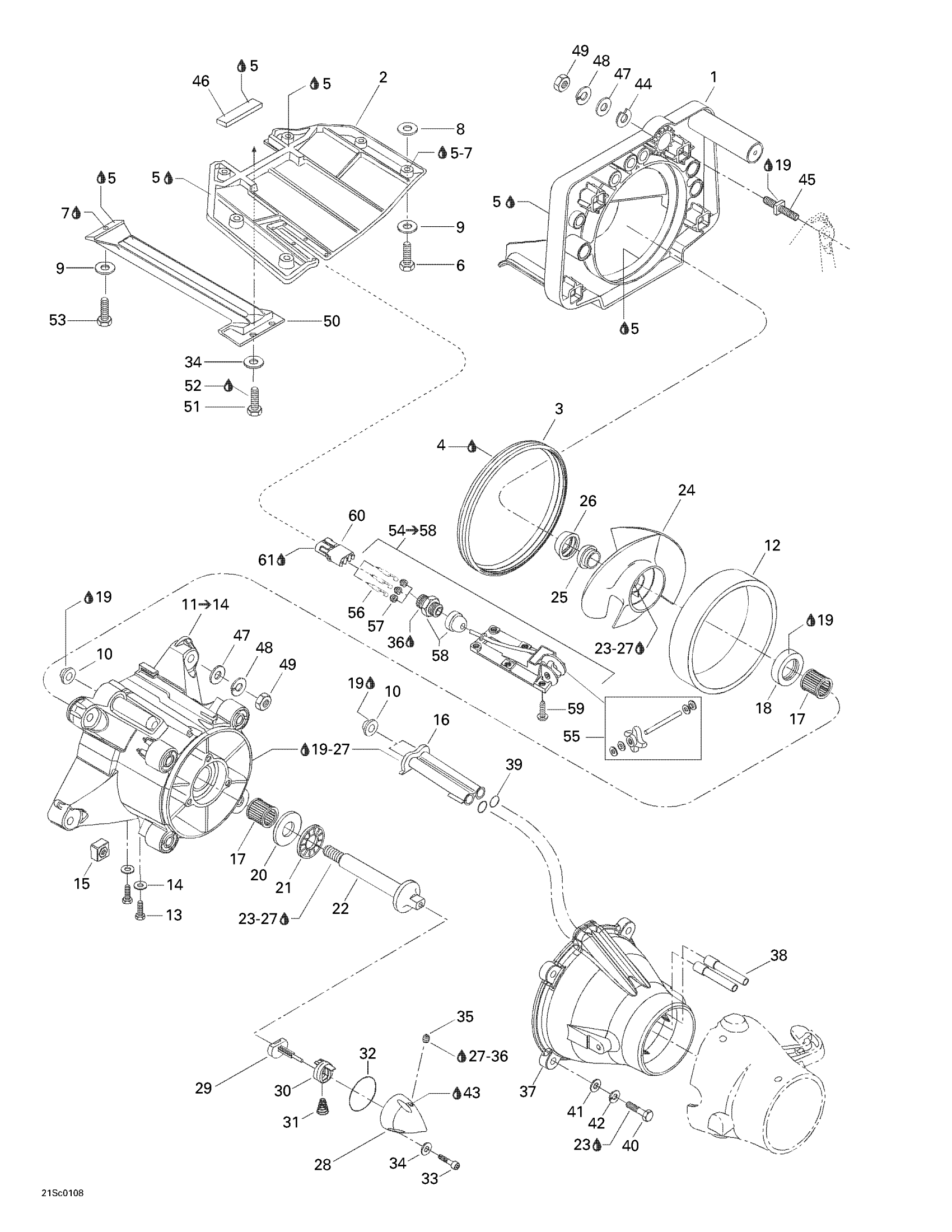

Sea-doo RX, 5532/5533/5542/5543, 2001 Drive And Propulsion System Diagram

#

Description
Price

1

Pump Support

271001132

Unavailable

2

Riding Plate

271001229

Unavailable

3

Neoprene Seal

293200051

$17.74

4

Glue Tube, Loctite 454, 20 G

413708300

$60.99

5

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

6

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

7

Silicone Sealant 51388, 300 ml

296000309

$36.99

8

Flat Washer 10 mm, Stainless

234002600

$2.22

9

Stainless, Flat Washer 8 mm

234081600

$0.55

10

Watertight Seal

293250084

$7.49

11

IMPELLER HOUSING ASS'Y - Call your local BRP dealership | Includes 7 - 10.

271001143

Unavailable

12

Wear Ring

271000653

$58.49

13

Hex. Plastite Screw #10 X 3/8"

250000040

$1.05

14

Flat Washer M5, Stainless

234051600

$0.77

15

Square Nut M8

211100033

$17.99

16

Water Outlet

271000785

$3.80

17

Needle Bearing

293350017

$27.99

18

Oil Seal

267000094

$22.49

19

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

20

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

21

Thrust-Bearing

293350022

$45.99

22

Impeller Shaft

271000965

$116.49

23

Loctite 243, 10 ml

293800060

$21.49

24

Impeller Ass’Y

271000920

$391.99

25

Impeller Boot

271000516

$9.59

26

Impeller Ring

271000517

$9.59

27

Was 293800041 Loctite Primer 7649

219704458

$39.99

28

IMPELLER COVER - Call your local BRP dealership

271001250

Unavailable

29

PUSHER ASS?Y - Call your local BRP dealership

271001124

Unavailable

30

SLIDER - Call your local BRP dealership

271001107

Unavailable

31

SPRING - Call your local BRP dealership

271001108

Unavailable

32

O-Ring

293300011

$8.64

33

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

34

Stainless Flat Washer M6

234061600

$0.33

35

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

36

Was 293800013 Loctite 56765

219704454

$65.99

37

Venturi (Black)

271001079

Unavailable

38

Siphon Tube

271001133

$10.99

39

O-Ring

293300013

$8.18

40

Hex. Screw M8 X 45

207084560

$3.38

41

Stainless, Flat Washer 8 mm

234081600

$0.55

42

Lock Washer 8 mm, Stainless

234181601

$0.55

43

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

44

Shim 0.3 mm

272000053

$11.49

45

Square Stud

250300022

$20.99

46

Neoprene Seal (1PAC=3M)

219704364

$27.49

47

Flat Washer 10 mm, Stainless

234002600

$2.22

48

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

49

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

50

Pump Grate

271000763

Unavailable

51

Hex. Screw M6 X 16

207161660

$1.59

52

Loctite 271, 10 ml

293800005

$26.99

53

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

54

Speed Sensor | Includes 26 to 30 / LE

278001595

Unavailable

55

Paddle Wheel Kit

295500108

Unavailable

56

Male Terminal | XT Models

278000222

$3.19

57

Wire Seal

278000218

$4.39

58

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

59

Phillips Screw M5 x 12

250000319

$1.39

60

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

61

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
