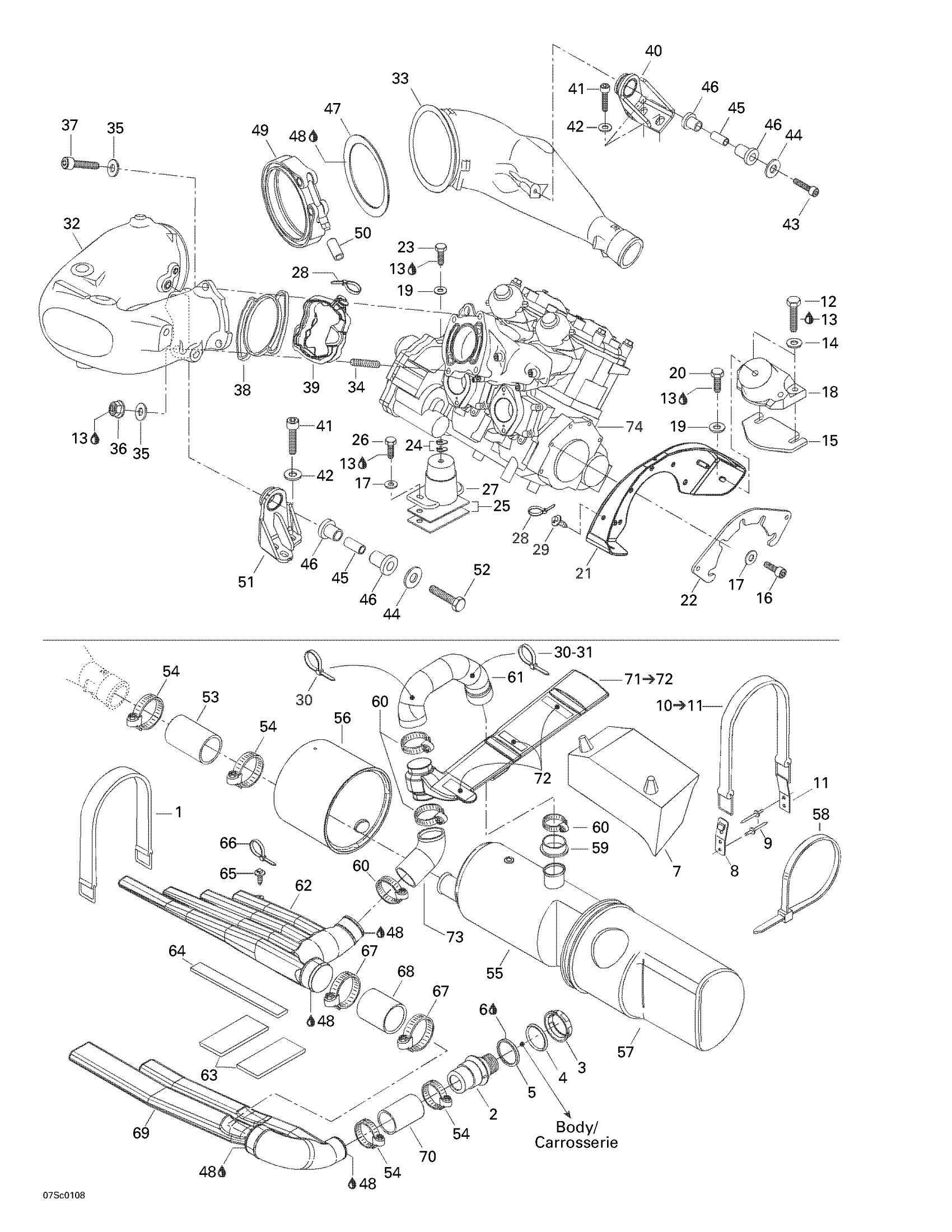

Sea-doo RX, 5532/5533/5542/5543, 2001 Engine Support And Muffler Diagram

#

Description
Price

1

Retainer Strap

293850097

$11.64

2

Exhaust Hose, Outlet

274001391

$29.49

3

Nut 72 mm

274000224

$16.34

4

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

5

GASKET - Call your local BRP dealership

293250041

Unavailable

6

Silicone Sealant 51388, 300 ml

296000309

$36.99

7

Resonator Support

292000782

Unavailable

8

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

9

Avdel Rivet 3/16"

293150037

$0.56

10

Fuel Tank Strap | Includes 48 - 49.

293850026

Unavailable

11

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

12

Hex. Screw M8 X 40

207184060

$2.22

13

Loctite 243, 10 ml

293800060

$21.49

14

Stainless, Flat Washer 8 mm

234081600

$0.55

15

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

16

Socket Head Screw M8 X 25, Scotch Grip

205582560

$2.19

17

Stainless, Flat Washer 8 mm

234081600

$0.55

18

Rubber Mount, Black

270000421

Unavailable

19

Flat Washer 8 mm, Stainless

234082600

$2.43

20

Hex. Screw M8 X 16

207181660

Unavailable

21

Engine Support

270000359

Unavailable

22

Gasket

293250110

Unavailable

23

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

24

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

25

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

26

Hex. Screw M8 X 40

207184060

$2.22

27

Rubber Mount, Black

270000422

Unavailable

28

Tie Wrap 142 mm

293750002

$1.25

29

Mount Dart

293730040

$1.04

30

Tie Wrap 368 mm

293750008

$1.04

31

Tie-Rap 180 mm

414115200

$0.11

32

Head Pipe Ass'y | Includes 34 - 38.

274000928

Unavailable

33

EXHAUST CONE, BLACK - Call your local BRP dealership

274000871

Unavailable

34

STUD M10 X 5.1 X 55, SCOTCH GRIP - Call your local BRP dealership

250300008

Unavailable

35

Flat Washer

211200051

$1.68

36

Hex. Flange Nut M10

233101600

$5.29

37

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

38

Exhaust Gasket

290931990

Unavailable

39

PICK UP ENVELOPE - Call your local BRP dealership

274000862

Unavailable

40

Pipe Support

274000878

Unavailable

41

SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

244083060

Unavailable

42

FLAT WASHER M8.4 - Call your local BRP dealership

250200012

Unavailable

43

Hex. Screw M10 X 40, Scotch Grip

244004060

$4.86

44

Flat Washer 10 mm, Stainless

234002600

$2.22

45

BUSHING - Call your local BRP dealership

274000861

Unavailable

46

RUBBER BUSHING - Call your local BRP dealership

293830065

Unavailable

47

SEALING RING - Call your local BRP dealership

274000511

Unavailable

48

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

49

EXHAUST CLAMP - Call your local BRP dealership

274000510

Unavailable

50

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

51

Pipe Support

274000890

Unavailable

52

HEX. SCREW M10 X 40, SCOTCH GRIP - Call your local BRP dealership

245004060

Unavailable

53

EXHAUST HOSE - Call your local BRP dealership

274000530

Unavailable

54

Tridon Clamp

293650064

$8.29

55

Muffler (Black)

274000749

Unavailable

56

MUFFLER COVER, FRONT - Call your local BRP dealership

274000796

Unavailable

57

Muffler Cover, Rear

274000799

Unavailable

58

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

59

Hose Adaptor

274000766

Unavailable

60

Tridon Clamp

293650179

$11.49

61

Exhaust Hose

274000893

Unavailable

62

LH UPPER RESONATOR - Call your local BRP dealership

274000700

Unavailable

63

RUBBER PAD - Call your local BRP dealership

274000752

Unavailable

64

Rubber Pad

274000785

Unavailable

65

Mount Dart

293730040

$1.04

66

Tie-Rap 180 mm

414115200

$0.11

67

Tridon Clamp

204000079

$9.99

68

EXHAUST HOSE - Call your local BRP dealership

274000726

Unavailable

69

RESONATOR EXTENSION - Call your local BRP dealership

274000701

Unavailable

70

Exhaust Hose

274000616

Unavailable

71

Resonator Ass'y | Includes 71 - 72.

274000902

Unavailable

72

RUBBER PAD - Call your local BRP dealership

274000752

Unavailable

73

Resonator Hose

274000894

Unavailable

74

Rotax Engine 947 (Silver)

270000522

Unavailable
