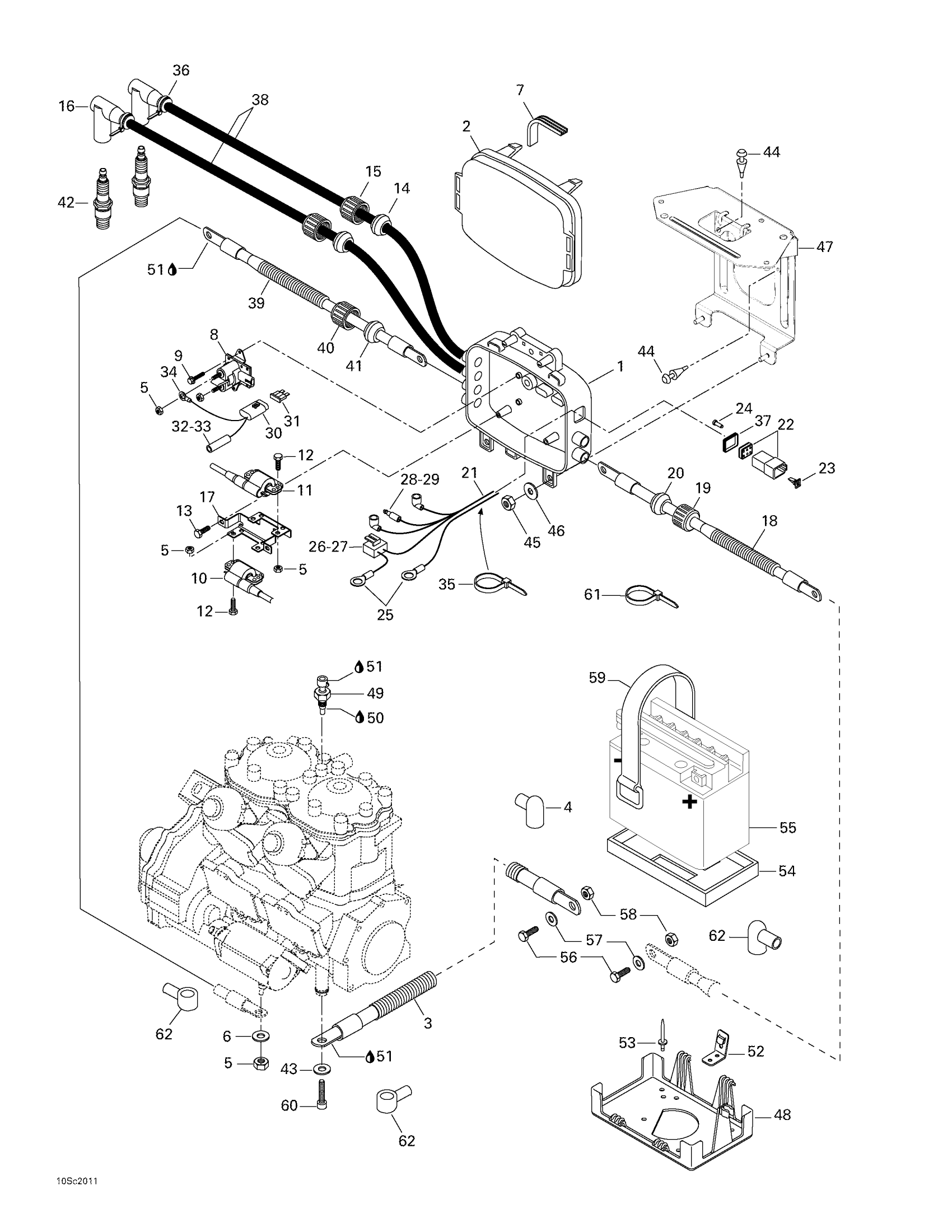

Sea-doo RX, 5513/5514, 2000 Rear Electrical Box Diagram

#

Description
Price

1

Electric Box Base

278001568

Unavailable

2

ELECTRIC BOX COVER - Call your local BRP dealership

278001433

Unavailable

3

Ground Cable, Black | Includes 18,19,41

278001489

Unavailable

4

Wire Cap (Black)

278001491

Unavailable

5

Hex. Elastic Stop Nut M6

232561600

$0.92

6

Stainless Flat Washer M6

234061600

$0.25

7

GASKET - Call your local BRP dealership

278001173

Unavailable

8

Starter Relay

278003012

$35.07

9

Hex. Flange Screw M6 X 10

210261040

$1.25

10

IGNITION COIL (PTO) - Call your local BRP dealership

278001573

Unavailable

11

Ignition Coil (MAG)

278001415

Unavailable

12

Hex. Forming Screw M6 X 20

207162060

$1.03

13

Hex. Screw M6 X 16

209561640

Unavailable

14

Grommet

278000682

Unavailable

15

Electric Wire Cap

278000100

Unavailable

16

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

17

Ignition Coil Support

278001421

Unavailable

18

Starter Positive Cable, Red | Includes 18,19,21,22,40

278001438

Unavailable

19

Electric Wire Cap

278000100

Unavailable

20

GROMMET - Call your local BRP dealership

278000098

Unavailable

21

Electric Box Harness | Includes 24 - 31.

278001422

Unavailable

22

Male Terminal Housing, 6 Circuits

710001539

$15.57

23

Female Lock, 6 Circuits

278000735

$3.02

24

Male Terminal

278000631

$4.12

25

Ring Terminal

278000300

Unavailable

26

Male Connector, 2 Circuits

278001113

$12.65

27

Female Terminal

278001114

$2.55

28

Male Terminal

278000230

$3.48

29

Insulated Sheath

278001007

$3.22

30

Fuse Harness (15 Amperes) | Includes 59 - 63.

278001212

Unavailable

31

Fuse, 15 Amperes

278000343

$2.72

32

Female Terminal | DS 650 X

278001009

$2.55

33

Insulated Sheath

278001007

$3.22

34

Ring Terminal

278000300

Unavailable

35

Tie Wrap 94 mm | 4X4

293750001

$0.83

36

Tie Wrap 142 mm

293750002

$0.88

37

Gasket

293200030

Unavailable

38

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

39

Starter Positive Cable, Red | Includes 34,35,75,89,90

278001091

Unavailable

40

Electric Wire Cap

278000100

Unavailable

41

GROMMET - Call your local BRP dealership

278000098

Unavailable

42

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.03

43

Flat Washer 10 mm, Stainless

234001600

$0.91

44

Rubber Bumper

293830005

$5.33

45

Hex. Elastic Stop Nut M6

232561600

$0.92

46

Flat Washer M6, Stainless

234062600

$0.64

47

Box Support

278001503

Unavailable

48

Battery Support

278001430

Unavailable

49

Temperature Sensor

278002895

$31.82

50

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

51

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

52

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

53

Avdel Rivet 3/16"

293150037

$0.47

54

Battery Lower Pad

278001234

Unavailable

55

Battery 19A | Includes 5 to 8

278001756

$162.45

56

Hex. Screw M6 X 16

207161644

$0.61

57

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

58

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

59

Retainer Strap

293850097

$9.26

60

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.29

61

Tie Wrap 142 mm

293750002

$0.88

62

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable
