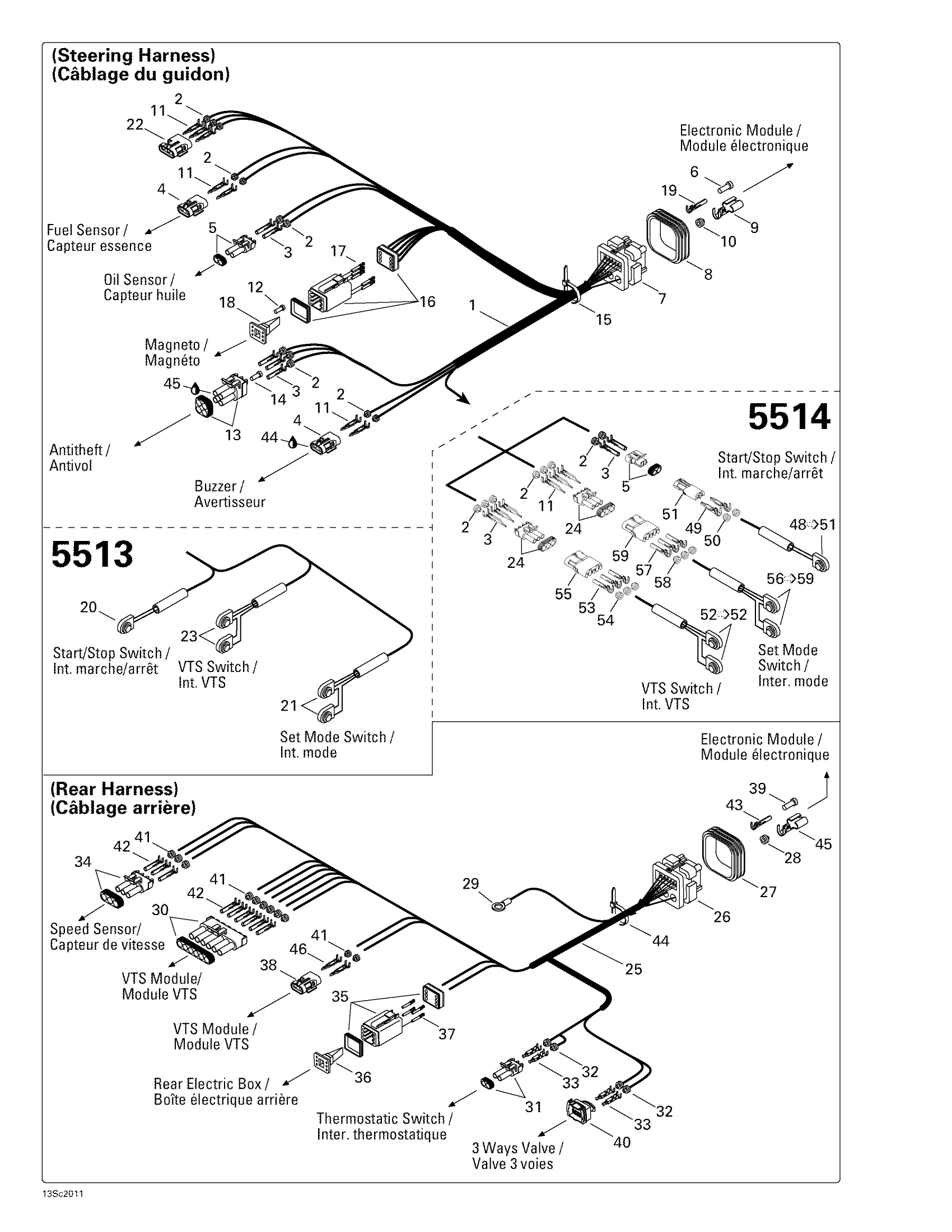

Sea-doo RX, 5513/5514, 2000 Electrical Harness Diagram

#

Description
Price

1

Steering Harness (5579-5581) | Includes 39 - 59.

278001575

Unavailable

Steering Harness (5580-5582) | Includes 39 - 62.

278001557

Unavailable

2

Wire Seal

278000218

$4.00

3

Female Terminal

278000223

$2.93

4

Female Housing, 2 Circuits

278000217

$8.72

5

Male Connector, 2 Circuits

278000220

$12.66

6

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

7

Male Terminal Housing, 26 Circuits

278001062

Unavailable

8

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

9

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

10

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

11

Male Terminal | XT Models

278000222

$2.93

12

Sealing Cap

293000052

$2.93

13

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

14

Wire Seal

278000216

$2.93

15

Tie Wrap 142 mm

293750002

$1.01

16

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

17

Female Terminal

278000632

$1.94

18

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

19

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

20

Stop/Start Switch Ass'y

278001403

Unavailable

21

<> Switch

278001375

Unavailable

22

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

23

VTS Switch (5580-5582)

278001404

Unavailable

24

Male Housing, 3 Circuits

278000273

$8.72

25

Rear Harness | Includes 1 - 22.

278001555

Unavailable

26

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

27

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

28

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

29

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

30

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

31

Male Housing, 2 Circuits

278001005

$17.88

32

Wire Seal

278000999

$2.93

33

Female Terminal

278000998

$4.00

34

Male Housing, 3 Circuits

278000273

$8.72

35

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

36

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

37

Female Terminal

278000632

$1.94

38

Female Housing, 2 Circuits

278000217

$8.72

39

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

40

Male Connector, 2 Circuits

278001003

$43.25

41

Wire Seal

278000218

$4.00

42

Female Terminal

278000223

$2.93

43

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

44

Tie Wrap 142 mm

293750002

$1.01

45

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

46

Male Terminal

409004300

$5.30

47

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

48

Ignition Switch Ass'y (Stop / Start) | Includes 27 - 30.

278001358

Unavailable

49

Male Terminal | XT Models

278000222

$2.93

50

Wire Seal

278000218

$4.00

51

Female Housing, 2 Circuits

278000217

$8.72

52

VTS Switch | Includes 53 - 55.

278001533

Unavailable

53

Male Terminal | XT Models

278000222

$2.93

54

Wire Seal

278000218

$4.00

55

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

56

Mode/Set Switch | Includes 1 - 3.

278001534

Unavailable

57

Female Terminal

278000223

$2.93

58

Wire Seal

278000218

$4.00

59

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31
