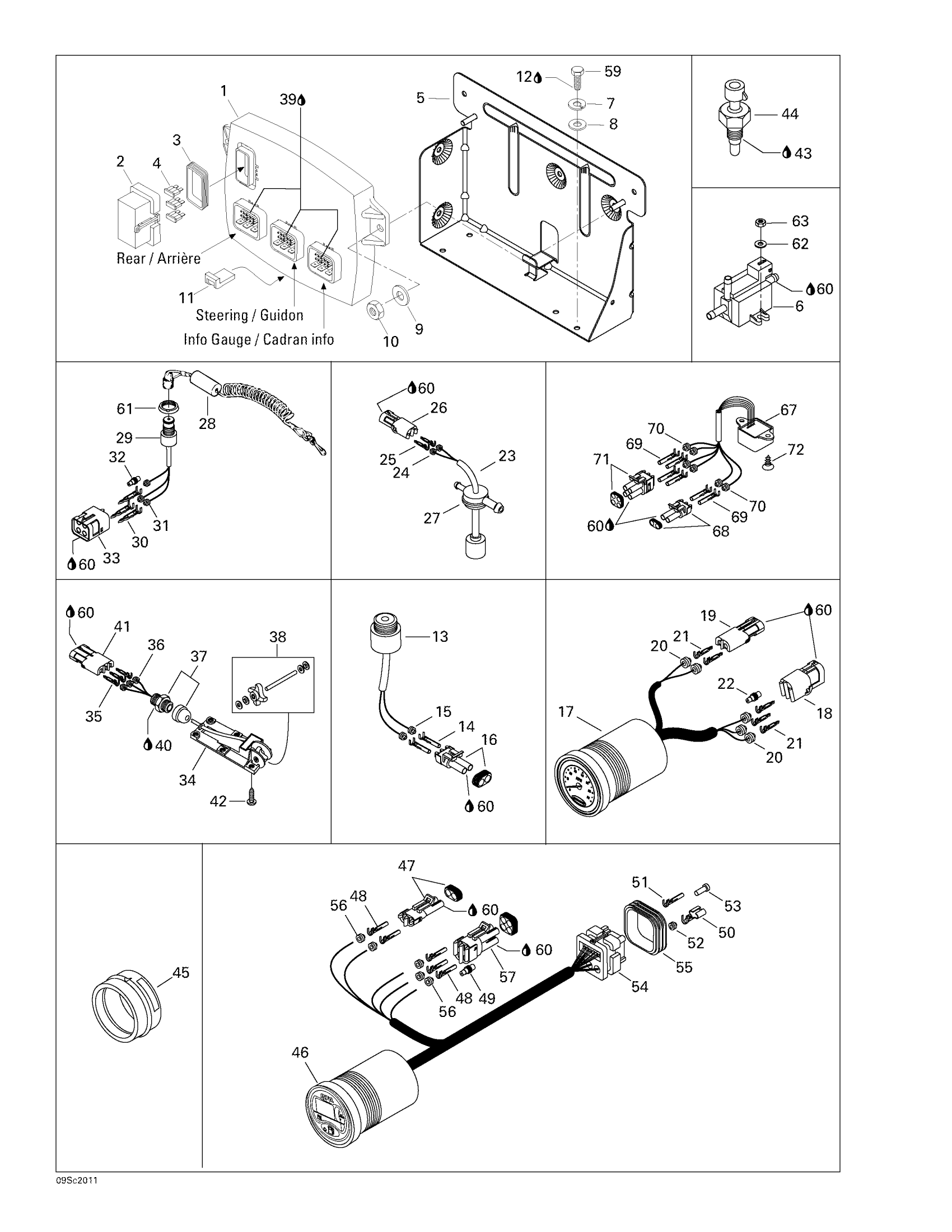

Sea-doo RX, 5513/5514, 2000 Electronic Module And Electrical Accessories Diagram

#

Description
Price

1

ELECTRONIC MODULE - Call your local BRP dealership | Includes 1 - 4.

278001526

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

3

Cover Seal

278001070

Unavailable

4

Fuse, 15 Amperes

278000343

$3.28

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

Fuse, 5 Amperes | CE

278000344

$3.28

5

Module Support Ass'y

291001194

Unavailable

6

Solenoid Valve

270600005

$116.49

7

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

8

Flat Washer 5 mm, Stainless

234052600

$0.77

9

Flat Washer M6, Stainless

234062600

$0.77

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

12

Loctite 271, 10 ml

293800005

$26.99

13

Buzzer Ass'y | Includes 11 - 14.

278000978

Unavailable

14

Female Terminal

278000223

$3.19

15

Wire Seal

278000218

$4.39

16

Male Connector, 2 Circuits

278000220

$15.49

17

Speedometer | Includes 22 - 27.

278001359

Unavailable

18

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

19

Female Housing, 2 Circuits

278000217

$9.59

20

Wire Seal

278001065

$7.69

21

Male Terminal | XT Models

278000222

$3.19

22

Wire Seal

278000216

$3.19

23

Oil Sensor | Includes 44 to 48

278001402

Unavailable

24

Wire Seal

278000218

$4.39

25

Male Terminal | XT Models

278000222

$3.19

26

Female Housing, 2 Circuits

278000217

$9.59

27

Grommet

293720008

$14.75

28

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

29

Safety Switch | Includes 15 - 19.

278000977

Unavailable

30

Male Terminal | XT Models

278000222

$3.19

31

Wire Seal

278000218

$4.39

32

Wire Seal

278000216

$3.19

33

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

34

Speed Sensor | Includes 26 to 30 / LE

278001595

Unavailable

35

Male Terminal | XT Models

278000222

$3.19

36

Wire Seal

278000218

$4.39

37

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

38

Paddle Wheel Kit

295500108

Unavailable

39

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

40

Was 293800013 Loctite 56765

219704454

$65.99

41

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

42

Phillips Screw M5 x 12

250000319

$1.39

43

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

44

Temperature Sensor

278002895

$39.99

45

Gauge Support

293720047

Unavailable

46

LCD Info Gauge | Includes 34 - 45.

278001471

Unavailable

47

Male Connector, 2 Circuits

278000220

$15.49

48

Female Terminal

278000223

$3.19

49

Wire Seal

278000216

$3.19

50

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

51

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

52

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

53

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

54

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

55

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

56

Wire Seal

278001065

$7.69

57

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

58

Hex. Elastic Nut M5 | X

232551600

$1.15

59

Hex. Plastite Screw M4, 8 X 20

243042060

Unavailable

60

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

61

Safety Nut (DESS Switch)

278002963

$3.28

62

Flat Washer M5, Stainless

234051600

$0.77
