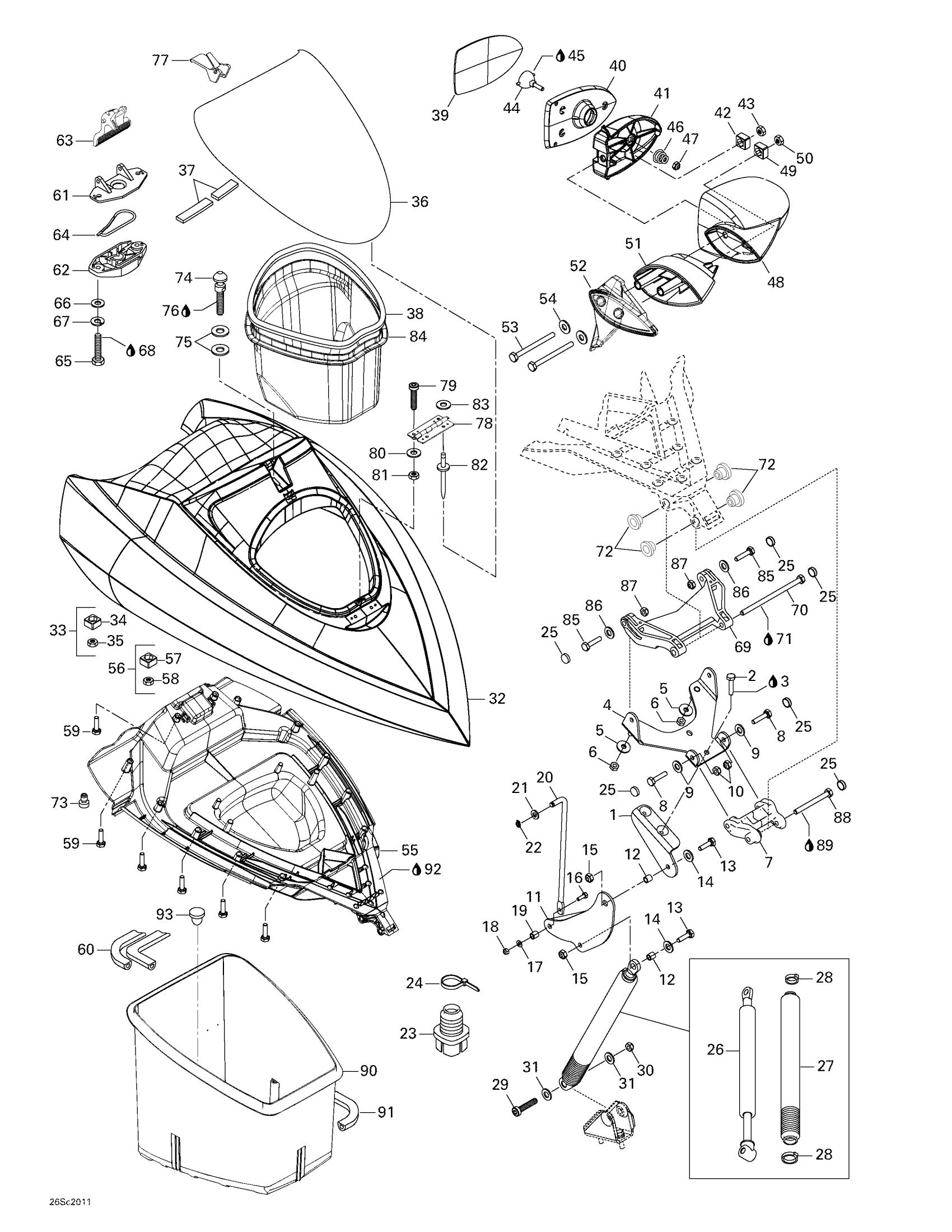

Sea-doo RX, 5513/5514, 2000 Front Storage Compartment Diagram

#

Description
Price

1

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

2

Hex. Forming Screw M6 X 20

207162060

$1.29

3

Loctite 243, 10 ml

293800060

$21.49

4

Pivot Support

269500708

Unavailable

5

Flat Washer M6, Stainless

234062600

$0.77

6

Hex. Elastic Stop Nut M6

232561600

$1.15

7

FRONT ARM - Call your local BRP dealership

269500704

Unavailable

8

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

9

Stainless Flat Washer M6

234061600

$0.33

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

Lever

269500840

Unavailable

12

Spacer

291000536

Unavailable

13

Hex. Forming Screw M6 X 20

207162060

$1.29

14

Flat Washer M6, Stainless

234062600

$0.77

15

Hex. Elastic Stop Nut M6

232561600

$1.15

16

Hex. Screw M4 X 16 | Europe

207141660

$1.47

17

Flat Washer 4 mm, Stainless

234041600

$1.15

18

Elastic Stop Nut M4

232541600

$1.15

19

Spacer

269500841

Unavailable

20

ROD - Call your local BRP dealership

269500842

Unavailable

21

Stainless Flat Washer M6

234061600

$0.33

22

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

23

Cable Grommet

293720063

Unavailable

24

Tie-Rap 180 mm

414115200

$0.11

25

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

26

GAZ SHOCK ASS'Y - Call your local BRP dealership | Includes 26 - 28.

269500843

Unavailable

27

Bellow

269500845

Unavailable

28

Tie Wrap 94 mm | 4X4

293750001

$1.03

29

Socket Head Screw M6 x 45 (Scotch Grip)

205564560

Unavailable

30

Nut M6 | Model-Australie, Brezil, Europe

232361600

$4.34

31

Flat Washer M6, Stainless

234062600

$0.77

32

Cover (Metallic Pewter) | RX DI 5536/5537.

269500903

Unavailable

33

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

34

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

35

Hex. Nut M6

232061600

$1.15

36

Access Cover (Metallic Pewter) | RX DI 5536/5537.

269500700

Unavailable

37

Neoprene Seal (1PAC=3M)

219704364

$27.49

38

Was 293200017 Neoprene Seal

219704365

$149.99

39

RH Mirror

269500687

Unavailable

LH MIRROR - Call your local BRP dealership

269500788

Unavailable

40

Frame Mirror

269500697

Unavailable

41

Housing Support | WAKE

269500807

Unavailable

42

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

43

Hex. Elastic Nut M8

232581600

$1.48

44

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

45

Synthetic Grease, 400 G

293550010

Unavailable

46

Mirror Spring

269500453

$10.49

47

Hex. Elastic Stop Nut M6

232561600

$1.15

48

Mirror Shell RH

269500816

Unavailable

Mirror Shell LH

269500831

Unavailable

49

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

50

Hex. Elastic Nut M8

232581600

$1.48

51

RH Mirror Support (Metallic Pewter) | RX DI 5536/5537.

269500818

Unavailable

LH Mirror Support (Metallic Pewter) | RX DI 5536/5537.

269500819

Unavailable

52

RH Spacer | LE

269500792

Unavailable

LH Spacer | LE

269500793

Unavailable

53

HEX. SCREW M8 X 120 - Call your local BRP dealership

230082060

Unavailable

54

Flat Washer 8 mm, Stainless

234082600

$2.43

55

Lower Strorage Cover

269500702

Unavailable

56

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

57

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

58

Hex. Nut M6

232061600

$1.15

59

Hex. Flange Screw K40 X 13

241141360

$0.67

60

Was 293200017 Neoprene Seal

219704365

$149.99

61

Latch Ass'y

269700109

$24.99

62

Latch Ass'y

269700109

$24.99

63

Latch Ass'y

269700109

$24.99

64

Latch Spring

269700017

$9.19

65

Hex. Screw M6 X 30

207063060

$1.89

66

Stainless Flat Washer M6

234061600

$0.33

67

Lock Washer Helical M6

234161601

$1.15

68

Loctite 243, 10 ml

293800060

$21.49

69

REAR ARM - Call your local BRP dealership

269500705

Unavailable

70

Hex. Screw M6 X 100

230060060

$7.41

71

Loctite 243, 10 ml

293800060

$21.49

72

Sleeve

269500706

$4.65

73

Rubber Bumper

293830005

$8.09

74

ANCHORING STUD - Call your local BRP dealership

291001242

Unavailable

75

Flat Washer M6, Stainless

234062600

$0.77

76

Loctite 243, 10 ml

293800060

$21.49

77

Latch

269501487

$16.99

78

HINGE - Call your local BRP dealership

269500338

Unavailable

79

Socket Head Screw M5 X 16

205451660

$1.15

80

Flat Washer 5 mm, Stainless

234052600

$0.77

81

Hex. Elastic Nut M5 | X

232551600

$1.15

82

Pop Rivet 3/16"

204000081

$1.49

83

Flat Washer 5 mm, Stainless

234052600

$0.77

84

GLOVES BOX - Call your local BRP dealership

269500339

Unavailable

85

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

86

Stainless Flat Washer M6

234061600

$0.33

87

Hex. Elastic Stop Nut M6

232561600

$1.15

88

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

Unavailable

89

Loctite 243, 10 ml

293800060

$21.49

90

STORAGE TRAY - Call your local BRP dealership

269500691

Unavailable

91

Seal Tray 1000Mm Long

219704368

$13.99

92

Glue Tube, Loctite 454, 20 G

413708300

$60.99

93

Rubber Bumper

293830005

$8.09
