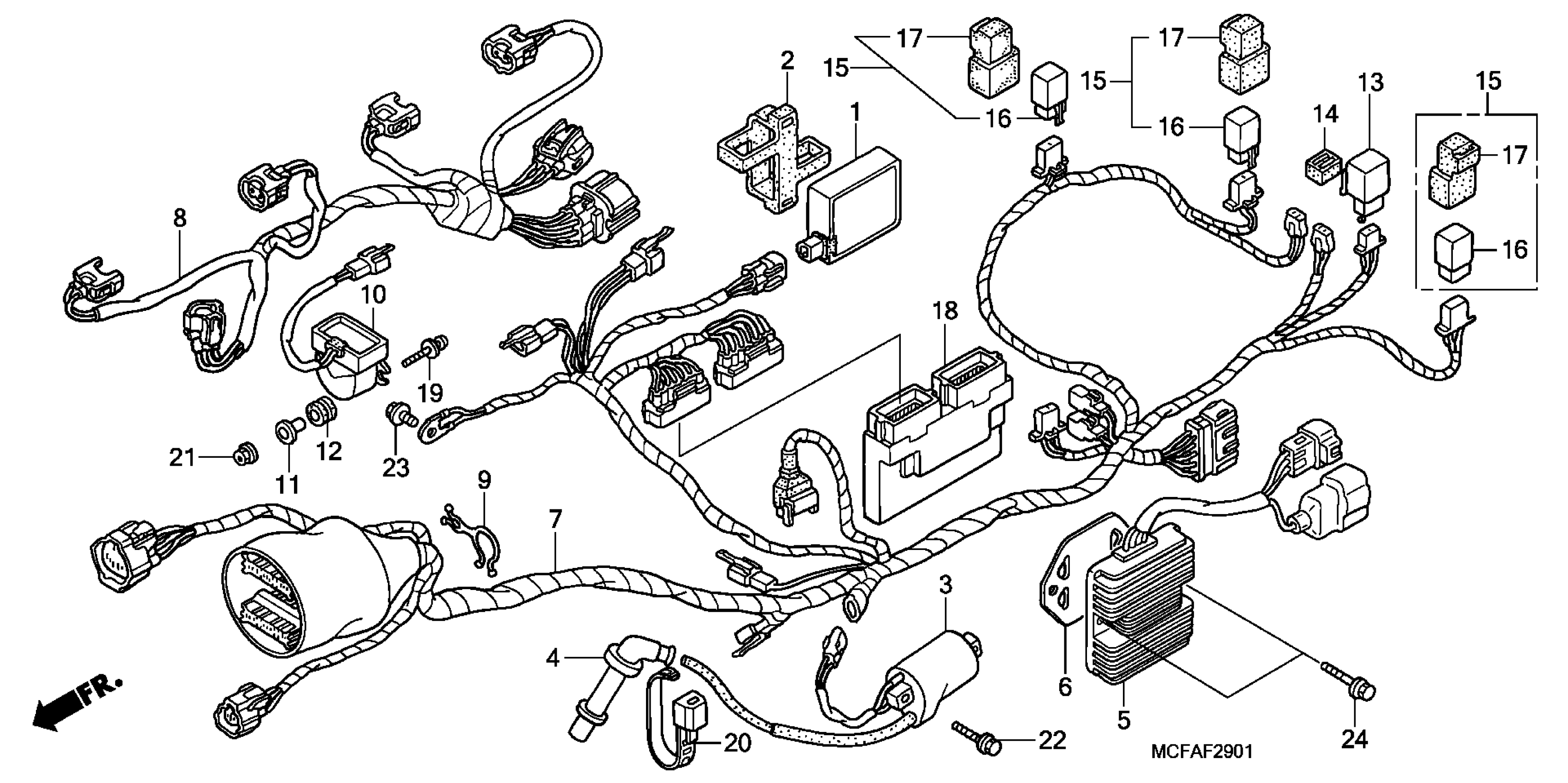

Honda RVT1000RAC (06) RC51, JPN, VIN# JH2SC451-6M600001 WIRE HARNESS (RR.) Diagram

CONVERTER UNIT, C.D.I.

30450-MCF-003

$837.77

SUSPENSION, C.D.I. CONVERTER

30455-MCF-000

Unavailable

COIL, RR. IGNITION

30502-MCF-D61

Unavailable

CAP ASSY., RR. NOISE SUPPRESSOR

30750-MCF-003

Unavailable

RECTIFIER ASSY., REGULATOR

31600-MCF-D30

Unavailable

SPACER, REGULATOR RECTIFIER

31605-MCF-D30

Unavailable

WIRE HARNESS, RR.

32101-MCF-L40

Unavailable

SUB-HARNESS, INJECTOR

32106-MCF-D30

Unavailable

CLIP, PURSE LOCK

32109-MCF-000

$3.46

SENSOR, STOP This part replaces 35161-MCF-E00.

35161-MCF-E01

Unavailable

COLLAR

35162-MCF-D30

Unavailable

GROMMET

35163-MN5-003

$3.15

RELAY, TURN SIGNAL

38301-MBW-D21

$46.44

SUSPENSION, TURN SIGNAL RELAY (DENSO)

38306-GE8-008

$4.52

RELAY ASSY., STARTER

38500-GC7-612

$50.16

RELAY, STARTER (MITSUBA)

38501-GN2-014

$49.65

SUSPENSION, STARTER RELAY (MITSUBA)

38506-GC7-611

$4.49

PGM-FI UNIT

38770-MCF-L21

Unavailable

SCREW-WASHER, LOCK (4X25)

90109-MCF-000

$2.15

BAND, WIRE

90650-KV6-003

$3.12

NUT, FLANGE (4MM)

94050-04070

$1.49

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

BOLT, FLANGE (6X32)

96001-06032-07

$1.54
