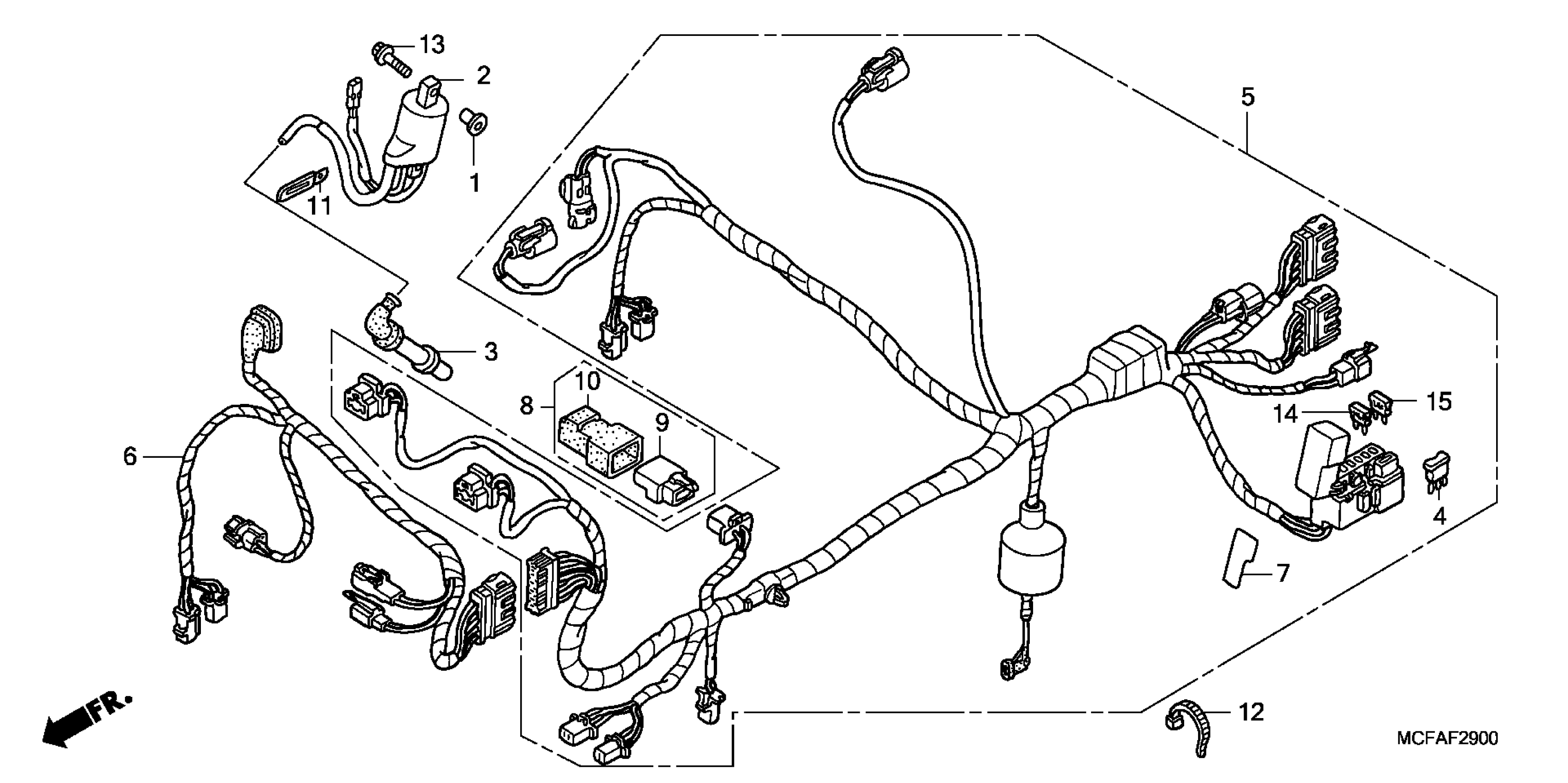

Honda RVT1000RAC (06) RC51, JPN, VIN# JH2SC451-6M600001 WIRE HARNESS (FR.) Diagram

COLLAR, AIR CLEANER SETTING

17216-HA7-670

$6.16

COIL, FR. IGNITION

30501-MCF-D31

Unavailable

CAP ASSY., FR. NOISE SUPPRESSOR

30700-MCF-003

$37.13

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-MCF-L20

Unavailable

SUB-WIRE HARNESS, FR.

32102-MCF-670

Unavailable

LABEL, MINI FUSE

38215-MCF-D30

Unavailable

RELAY ASSY., STARTER

38500-GC7-612

$50.16

RELAY, STARTER (MITSUBA)

38501-GN2-014

$49.65

SUSPENSION, STARTER RELAY (MITSUBA)

38506-GC7-611

$4.49

CLIP (4X50)

90601-KJ9-000

$3.08

BAND, WIRE

90651-KV6-003

$2.92

BOLT, FLANGE (6X45)

96001-06045-07

$2.16

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (20A)

98200-42000

$1.49
