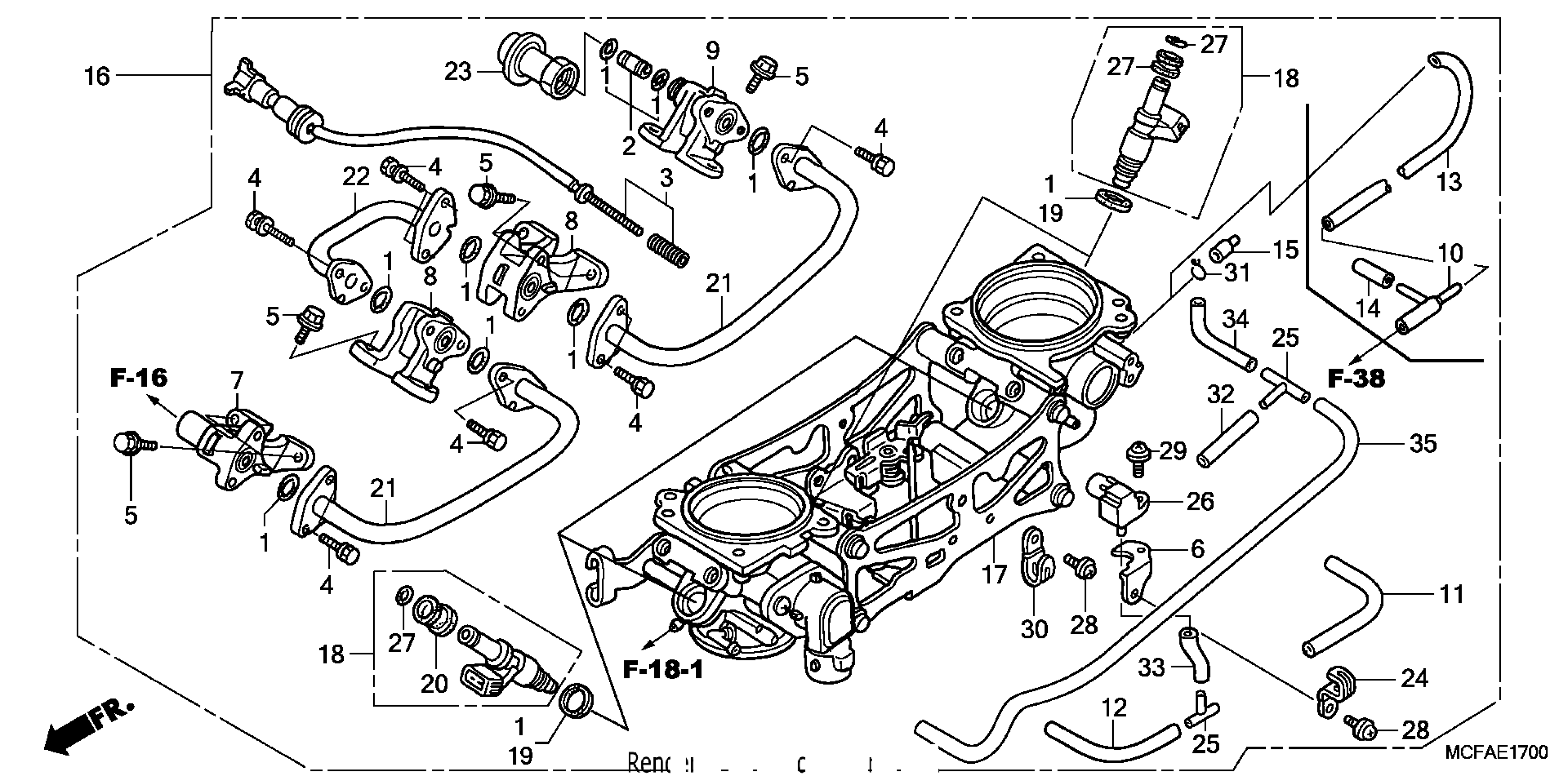

Honda RVT1000RAC (06) RC51, JPN, VIN# JH2SC451-6M600001 THROTTLE BODY (ASSY.) Diagram

#

Description
Price

1

GASKET SET

16010-MCF-D31

Unavailable

2

JOINT SET

16024-MAT-E01

$25.28

3

SCREW SET, STOP

16029-MCF-003

Unavailable

4

BOLT-WASHER (5X14)

16080-MCF-003

Unavailable

5

BOLT-WASHER (5X20)

16081-MCF-D31

Unavailable

6

STAY, PB SENSOR

16118-MCF-D31

$5.67

7

STAY, FUEL

16120-MCF-023

$34.61

8

STAY A, FUEL PIPE

16129-MCF-023

$19.64

9

STAY C, FUEL PIPE

16130-MCF-023

Unavailable

10

T-JOINT

16179-MB2-881

Unavailable

11

TUBE This part replaces 16195-MCF-D31.

16195-MCF-505

$4.39

12

TUBE This part replaces 16196-MCF-D31.

16195-MCF-505

$4.39

13

TUBE This part replaces 16198-MCF-771.

16198-MCF-505

Unavailable

14

TUBE

16199-MCF-771

Unavailable

16

BODY ASSY., THROTTLE (GQ76C A)

16400-MCF-L21

Unavailable

17

BODY ASSY., THROTTLE

16401-MCF-L21

Unavailable

18

INJECTOR ASSY., FUEL

16450-MCJ-752

$203.33

19

SEAL RING, INJECTOR

16472-MCW-000

$2.39

20

CUSHION RING, INJECTOR

16473-P7A-004

$6.90

21

PIPE A, FUEL

16610-MCF-D31

Unavailable

22

PIPE B, FUEL

16620-MCF-D31

$24.69

23

REGULATOR ASSY., PRESSURE

16740-MCF-013

$64.29

24

CLIP, BIND

17179-MCF-003

Unavailable

25

JOINT A, VACUUM TUBE

17201-MG9-000

$15.94

26

SENSOR, MAP

37830-MCF-003

$206.58

27

O-RING

91301-P7A-004

$3.35

28

SCREW-WASHER (4X8)

93892-04008-00

$1.49

29

SCREW-WASHER (4X12)

93892-04012-00

$1.49

29

SCREW-WASHER (4X12) This part replaces 93892-04012-10.

93892-04012-00

$1.49

30

CLIP (2X50)

94591-25000

$2.31

32

BULK HOSE, VACUUM (3.5X1000) (3.5X30)

95005-35001-20M

$9.67

33

BULK HOSE, VACUUM (3.5X1000) (3.5X40)

95005-35001-20M

$9.67

34

BULK HOSE, VACUUM (3.5X1000) (3.5X95)

95005-35001-20M

$9.67

35

BULK HOSE, VACUUM (3.5X1000) (3.5X410)

95005-35001-20M

$9.67
