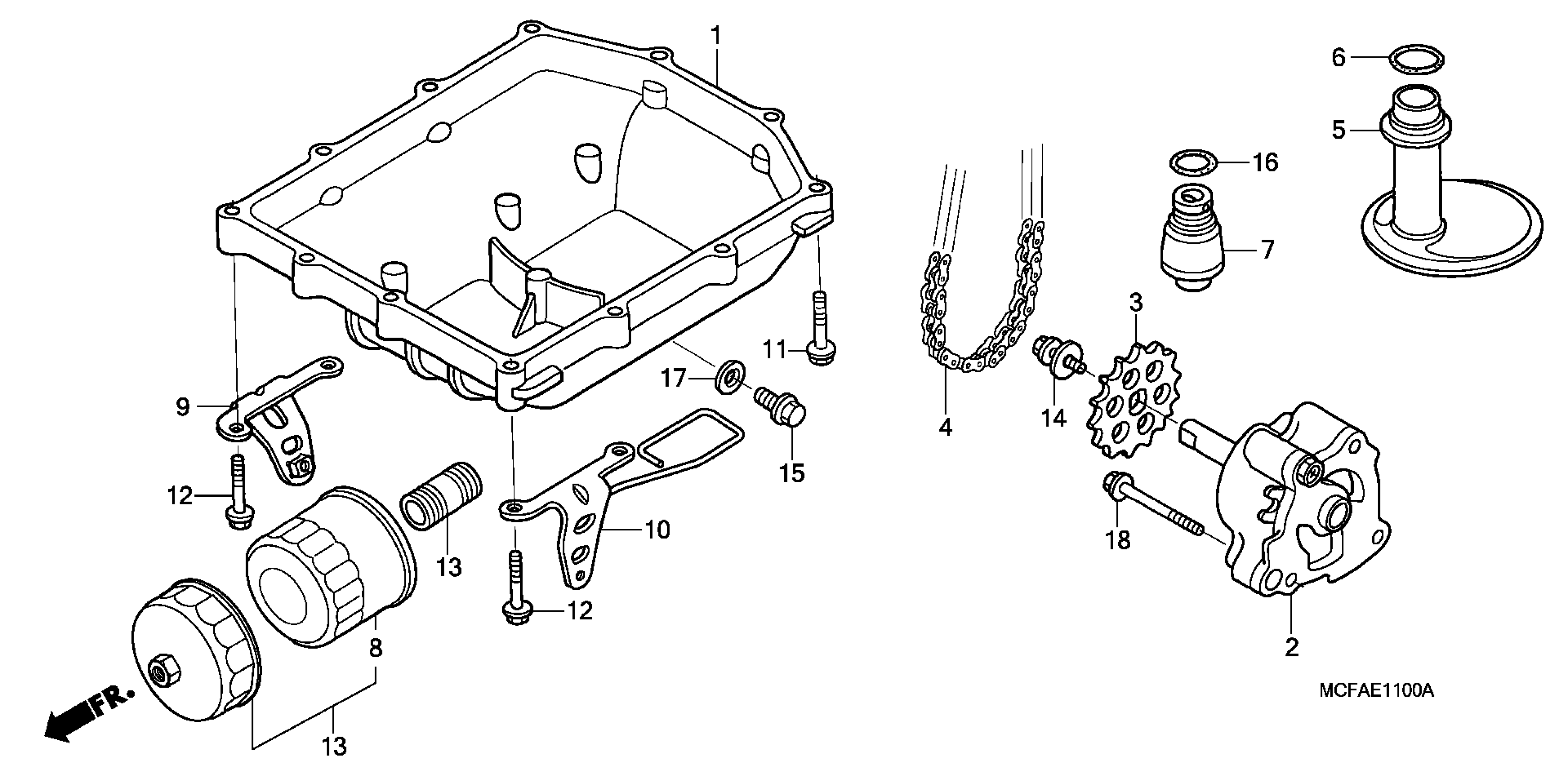

Honda RVT1000RAC (06) RC51, JPN, VIN# JH2SC451-6M600001 OIL PUMP Diagram

#

Description
Price

1

PAN, OIL

11210-MCF-000

Unavailable

2

PUMP ASSY., OIL

15100-MCF-000

Unavailable

3

SPROCKET, OIL PUMP DRIVEN (21T)

15134-KE8-010

$32.23

4

CHAIN, OIL PUMP

15140-415-003

$46.66

5

STRAINER, OIL

15150-MCF-000

Unavailable

6

GASKET, OIL STRAINER

15154-MM5-000

$6.15

7

VALVE ASSY., RELIEF

15220-MCF-000

Unavailable

8

FILTER, OIL (WAKO FILTER) | Use up to Engine SN 2600594 This part replaces 15410-MCJ-003.

15410-MFJ-D02

$13.80

8

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$13.80

9

STAY, R. COWL (LOWER)

64513-MCF-D50

Unavailable

11

BOLT, FLANGE (6X32) (NSHF)

90006-GHB-690

$1.75

12

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.75

13

BOSS, OIL FILTER

90019-MB0-000

$7.73

14

BOLT-WASHER (6X12)

90021-MM5-000

$4.76

15

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$2.00

15

BOLT, DRAIN PLUG

90131-896-650

$2.00

16

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.42

16

O-RING (14.8X2.2)

91313-MG7-004

$3.42

17

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

18

BOLT, FLANGE (6X40)

95701-06040-00

$1.71

19

FILTER SET, OIL | (Optional). Use up to Engine SN 2600594 This part replaces 15010-MCE-H50.

15010-MKR-305

$17.70

19

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$17.70
