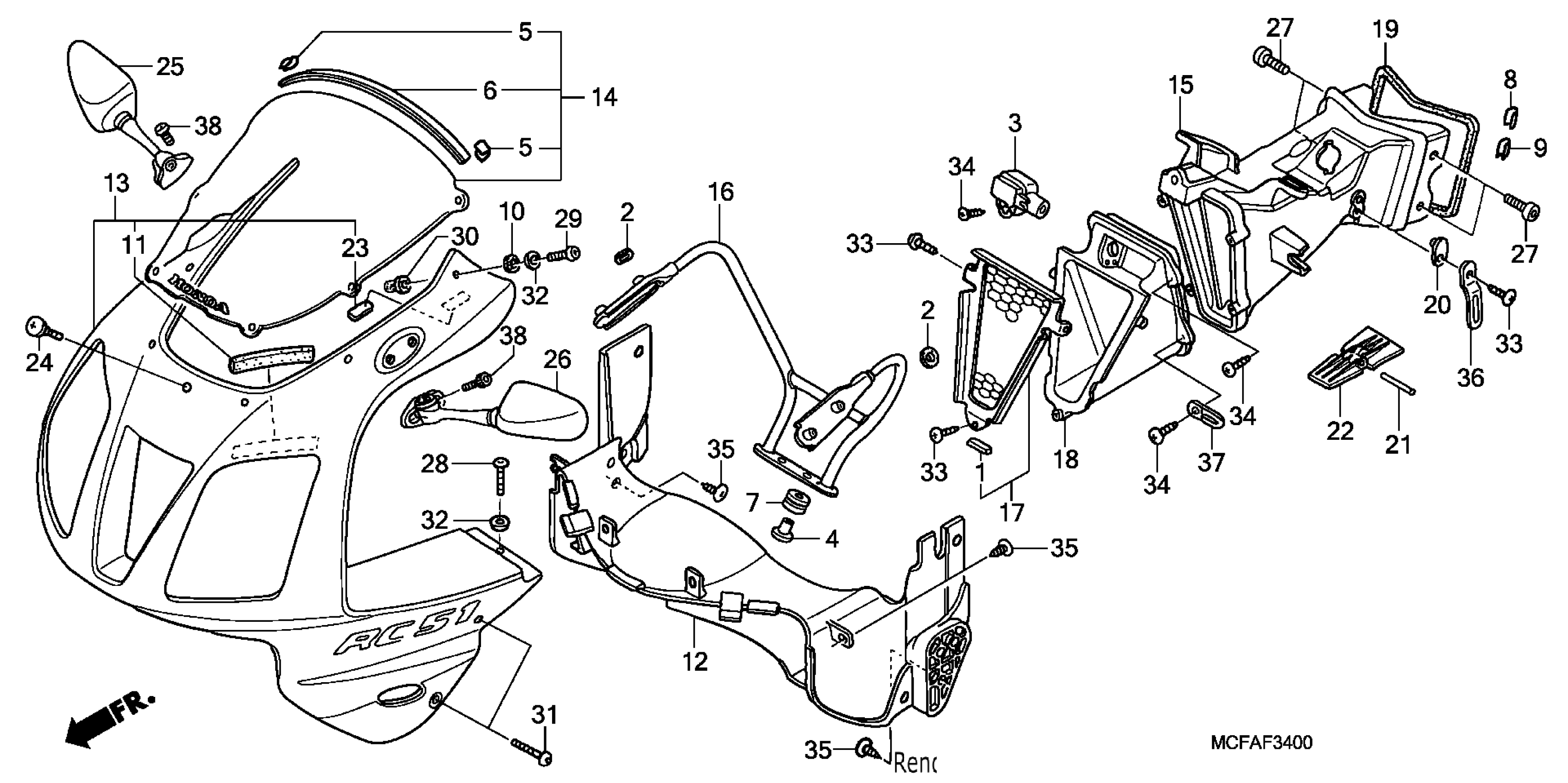

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 UPPER COWL Diagram

#

Description
Price

1

RUBBER, FUEL TANK PROTECTOR

17511-MR1-300

$3.38

2

RUBBER, FR. FUEL TANK

17627-467-000

$2.17

3

SENSOR, MAP

37830-MCF-003

$185.50

4

COLLAR, SETTING

61104-422-000

$6.44

5

CLIP, SCREEN MOLDING

64102-MCF-000

$3.03

6

MOLDING, WINDSCREEN

64105-MCF-D30

$6.47

7

RUBBER B, SIDE SHELTER

64122-KV0-000

$4.20

8

RUBBER A, PROTECTOR

64122-MCF-300

Unavailable

9

RUBBER B, PROTECTOR

64123-MCF-300

$2.70

10

WASHER, SCREEN SETTING

64205-166-610

$2.01

11

SEAL, COWL (UPPER)

64219-MCF-300

Unavailable

12

COWL (INNER) *NH1* (BLACK)

64220-MCF-000ZB

$77.13

13

COWL SET (UPPER) (TYPE1) (WL) This part replaces 64230-MCF-A60ZA.

64230-MCF-A50ZA

Unavailable

14

WINDSCREEN SET (TYPE2) (WL)

64250-MCF-D30ZB

Unavailable

15

DUCT A, AIR IN.

64501-MCF-000

$163.65

16

STAY B, COWL (UPPER)

64502-MCF-D30

$145.01

17

FILTER, AIR IN. DUCT

64505-MCF-000

$29.17

18

DUCT B, AIR IN.

64506-MCF-000

$41.62

19

GASKET, AIR IN. DUCT

64521-MCF-000

Unavailable

20

CAP, AIR IN. VALVE SHAFT

64524-MCF-000

Unavailable

21

SHAFT, AIR IN. DUCT VALVE

64525-MCF-D30

$3.01

22

VALVE, AIR IN. DUCT

64526-MCF-D30

Unavailable

23

TAPE B, SINGLE SEAT COWL

77227-MBG-300

$1.24

24

BOLT A, COWL SETTING

83641-MR7-000

$4.90

25

MIRROR ASSY., R. BACK

88110-MBW-023

$141.96

26

MIRROR ASSY., L. BACK

88120-MBW-023

$141.96

27

BOLT, SOCKET FLANGE (6X14)

90071-MCF-000

$2.19

28

SCREW, PAN (5X20)

90103-MBG-000

$1.84

29

SCREW, TRUSS (5X15)

90109-MCJ-750

$1.87

30

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.20

31

SCREW, PAN (5X15)

90113-MCJ-000

$2.03

32

WASHER, THRUST (5MM)

90504-964-000

$1.72

33

SCREW, TAPPING (4X10)

93903-24280

$1.23

34

SCREW, TAPPING (4X12)

93903-24380

Unavailable

35

SCREW, TAPPING (5X12)

93903-25280

$1.23

36

CLIP, WIRE (2X40)

94591-24000

$1.97

37

CLIP (2X50)

94591-25000

$2.10

38

BOLT, SOCKET (6X16)

96600-06016-07

$1.58
