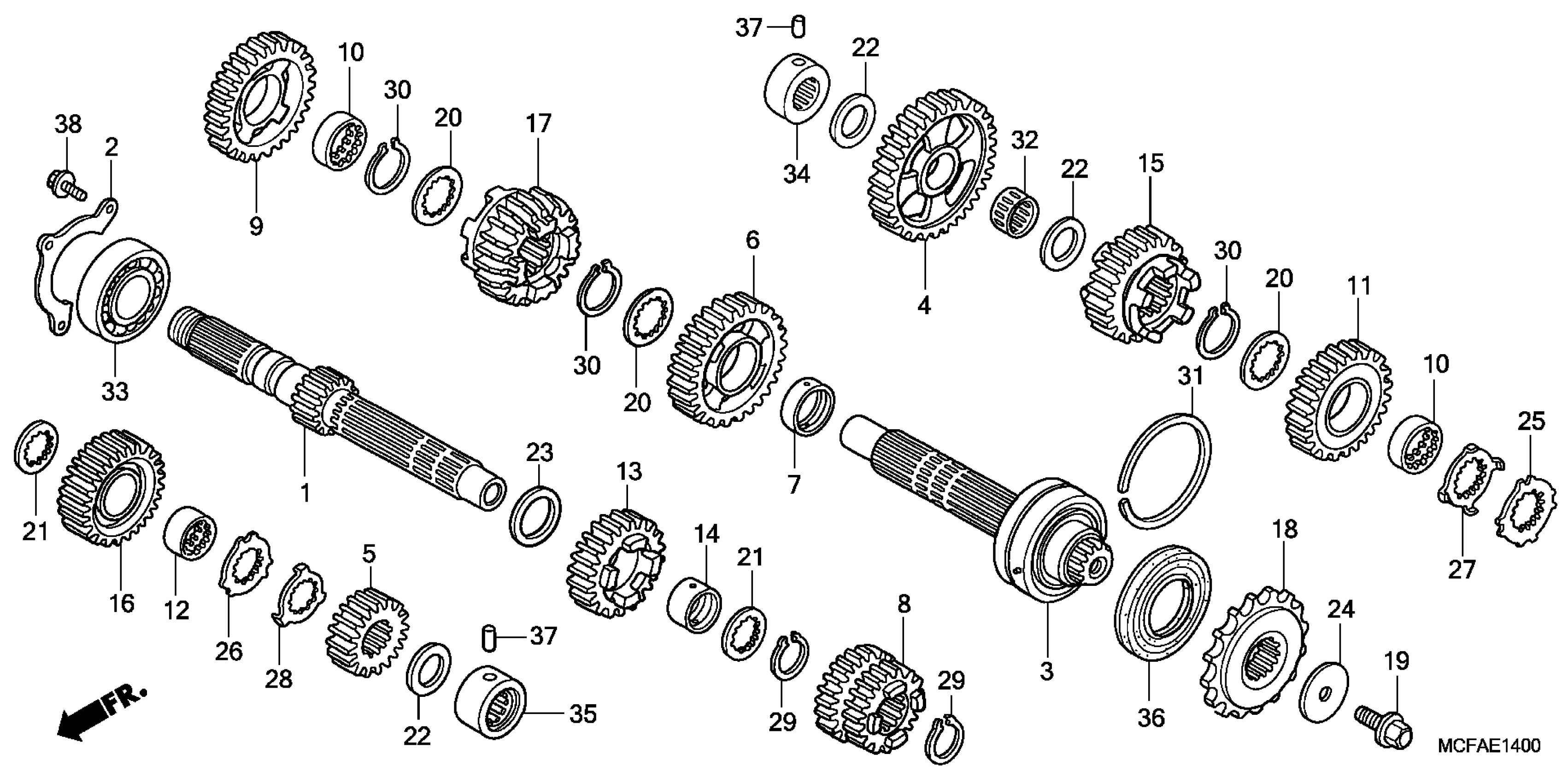

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (13T)

23211-MCF-000

Unavailable

2

PLATE, BEARING SETTING

23212-MCF-000

$8.34

3

COUNTERSHAFT

23220-MBB-000

$287.51

4

GEAR, COUNTERSHAFT FIRST (32T)

23421-MCF-000

Unavailable

5

GEAR, MAINSHAFT SECOND (16T)

23431-MBB-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (29T)

23441-MCF-000

Unavailable

7

COLLAR (30X11.2)

23442-MS2-610

$23.74

8

GEAR, MAINSHAFT THIRD & FOURTH (21T/25T)

23451-MCF-000

Unavailable

9

GEAR, COUNTERSHAFT THIRD (30T)

23461-MCF-000

Unavailable

10

COLLAR, SPLINE (30X11)

23462-MAT-000

$23.00

11

GEAR, COUNTERSHAFT FOURTH (31T)

23481-MCF-000

Unavailable

12

COLLAR, SPLINE (28X13.5)

23482-MR7-000

$30.92

13

GEAR, MAINSHAFT FIFTH (25T)

23491-MCF-000

Unavailable

14

COLLAR (28X13)

23495-MM5-000

$23.00

15

GEAR, COUNTERSHAFT FIFTH (27T)

23501-MCF-000

Unavailable

16

GEAR, MAINSHAFT SIXTH (26T)

23511-MCF-000

Unavailable

17

GEAR, COUNTERSHAFT SIXTH (25T)

23521-MCF-000

Unavailable

18

SPROCKET, DRIVE (16T) This part replaces 23801-ML7-920.

23801-MCJ-000

Unavailable

19

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

20

WASHER, SPLINE (30X36X1.5)

90452-MAT-000

$3.30

21

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$6.33

22

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.85

23

WASHER, THRUST (28MM)

90458-729-920

$5.34

24

WASHER (10.2MM)

90459-438-000

$5.83

25

WASHER, SPLINE (30MM)

90463-MAT-000

$4.57

26

WASHER, SPLINE (28MM)

90463-MR7-000

$10.57

27

WASHER, LOCK (30MM)

90464-MAT-000

$6.12

28

WASHER, LOCK (28MM)

90464-MR7-000

$10.57

29

CIRCLIP (28MM) This part replaces 90602-MM5-000.

90603-MN4-000

$4.11

29

CIRCLIP (28MM)

90603-MN4-000

$4.11

30

CIRCLIP (30MM)

90604-MM5-000

$4.48

31

RING, SNAP (72MM)

90605-MM5-000

$9.05

32

BEARING, NEEDLE (22X26X13)

91001-MB6-680

$34.56

33

BEARING, RADIAL BALL (28X62X16)

91004-MBT-003

$19.95

34

BEARING, NEEDLE (22X38X16)

91022-MCF-003

$25.43

35

BEARING, NEEDLE (22X38X19.3)

91025-MCF-003

Unavailable

36

OIL SEAL (39X72X8) This part replaces 91207-MBB-003.

91207-MBB-013

$12.82

37

PIN B, DOWEL (8X10)

94302-08100

$2.14

38

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
