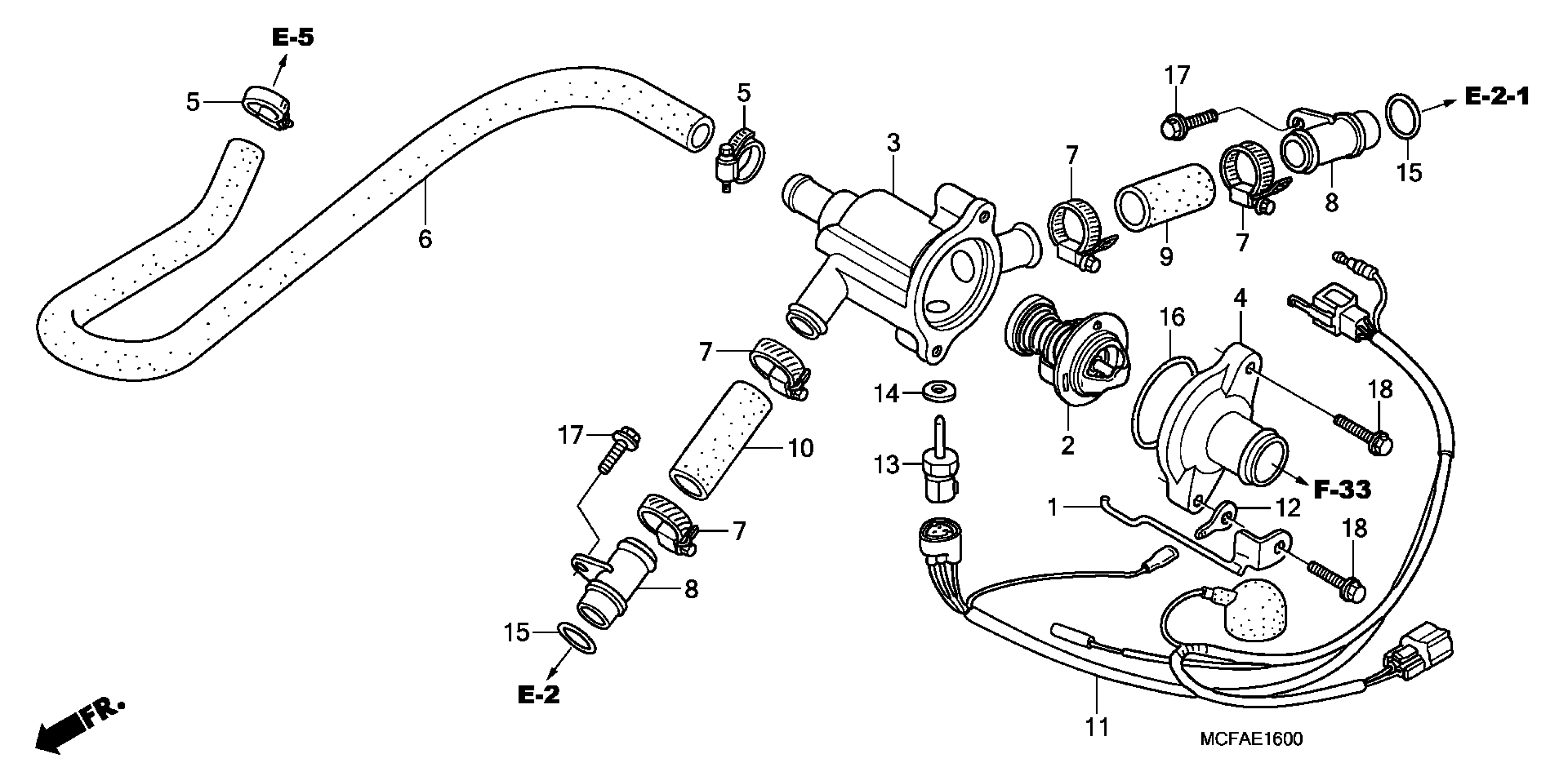

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 THERMOSTAT Diagram

STAY, AIR INJECTION CONTROL VALVE

18654-MCF-000

Unavailable

THERMOSTAT

19300-MBT-003

$49.22

CASE, THERMOSTAT

19310-MCF-000

Unavailable

COVER, THERMOSTAT

19313-MAS-E00

$39.62

CLAMP, WATER HOSE (25MM)

19504-KY1-003

$10.29

HOSE G, RADIATOR

19509-MCF-000

$28.67

CLAMP, HOSE (22-29MM)

19517-ML7-691

$11.62

PIPE A, WATER

19523-MCF-000

$22.02

HOSE B, RR. WATER

19526-MCF-000

Unavailable

HOSE B, FR. WATER

19528-MCF-000

Unavailable

SUB-WIRE, ENGINE

32111-MCF-D00

Unavailable

CONNECTOR, GROUND

32152-MB3-000

$1.93

SENSOR ASSY., WATER TEMPERATURE

37870-MBG-003

$83.34

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.61

O-RING (19X3) (NOK)

91312-KE7-003

$2.61

O-RING (43.5X2.0)

91351-MAE-003

$2.97

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
