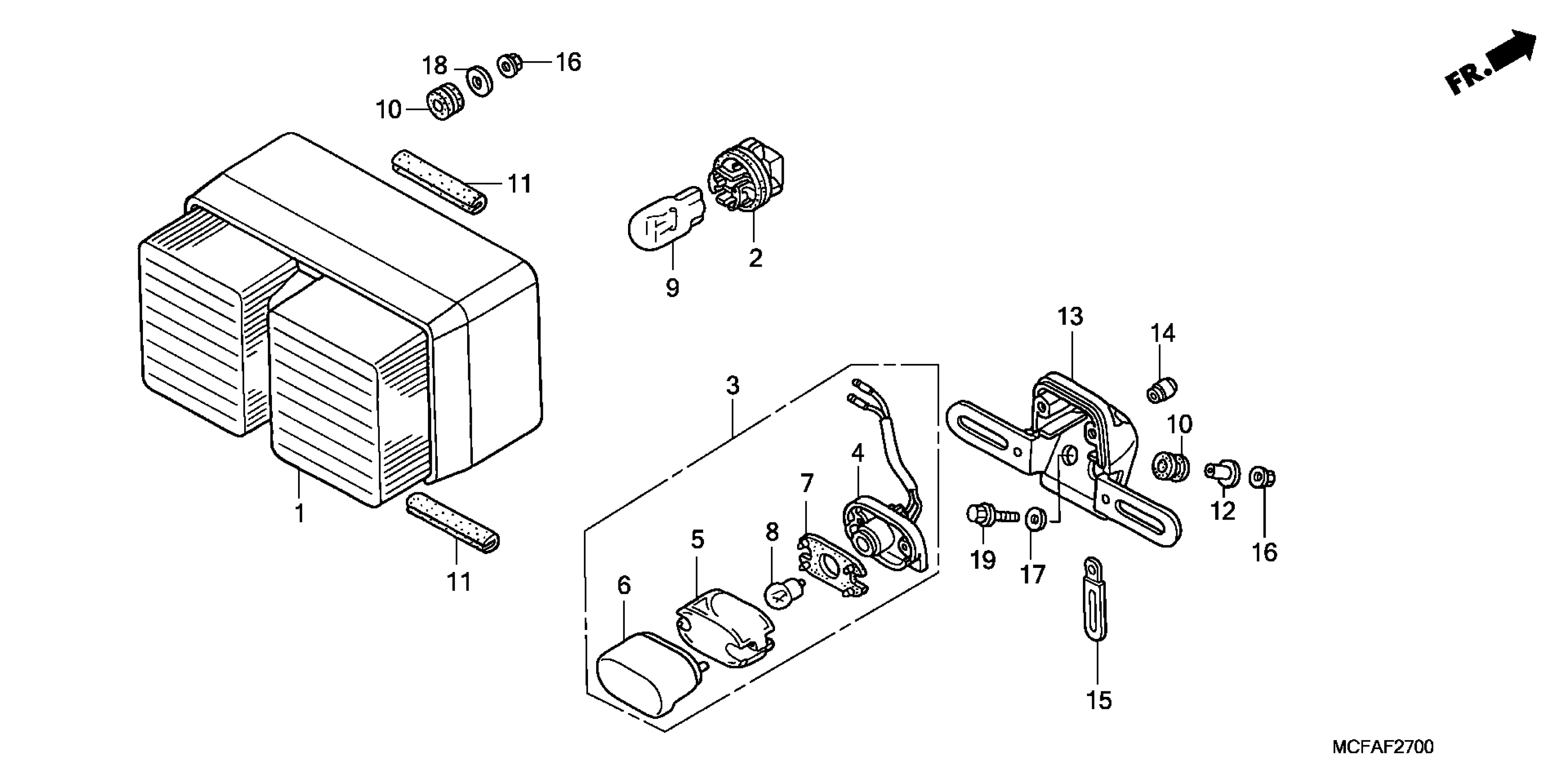

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 TAILLIGHT Diagram

#

Description
Price

1

LENS, TAILLIGHT

33710-MCF-671

Unavailable

2

SOCKET

33720-GZ9-003

$12.97

3

LIGHT ASSY., LICENSE

33720-MCF-A20

Unavailable

4

BASE, LICENSE

33721-MCF-A20

Unavailable

5

LENS, LICENSE LIGHT

33722-MZ0-710

Unavailable

6

COVER, LICENSE LIGHT

33727-ME4-671

$27.26

7

GASKET, LENS

33729-MB1-003

$6.30

8

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

8

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

8

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

8

BULB (12V8W4CP) (67) (STANLEY)

34909-505-003

$2.92

8

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

9

BULB, WEDGE BASE (12V 21/5W ECE) (STANLEY)

34906-MBB-611

$4.01

10

RUBBER, FR. FENDER MOUNTING

61103-357-000

$3.37

11

RUBBER, PROTECTOR

64121-MCF-000

$3.51

12

COLLAR, RR. FENDER

80114-KE2-940

$3.90

13

BRACKET, NUMBER PLATE

84701-ML7-670

$41.31

14

NUT, SPECIAL (4MM)

90302-MB2-000

$4.92

15

CLIP (2X60)

91410-679-000

$10.06

16

NUT, FLANGE (6MM)

94050-06000

$1.49

17

WASHER, PLAIN (6MM)

94103-06000

$1.49

18

WASHER, PLAIN (6MM)

94103-06800

$1.49

19

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
