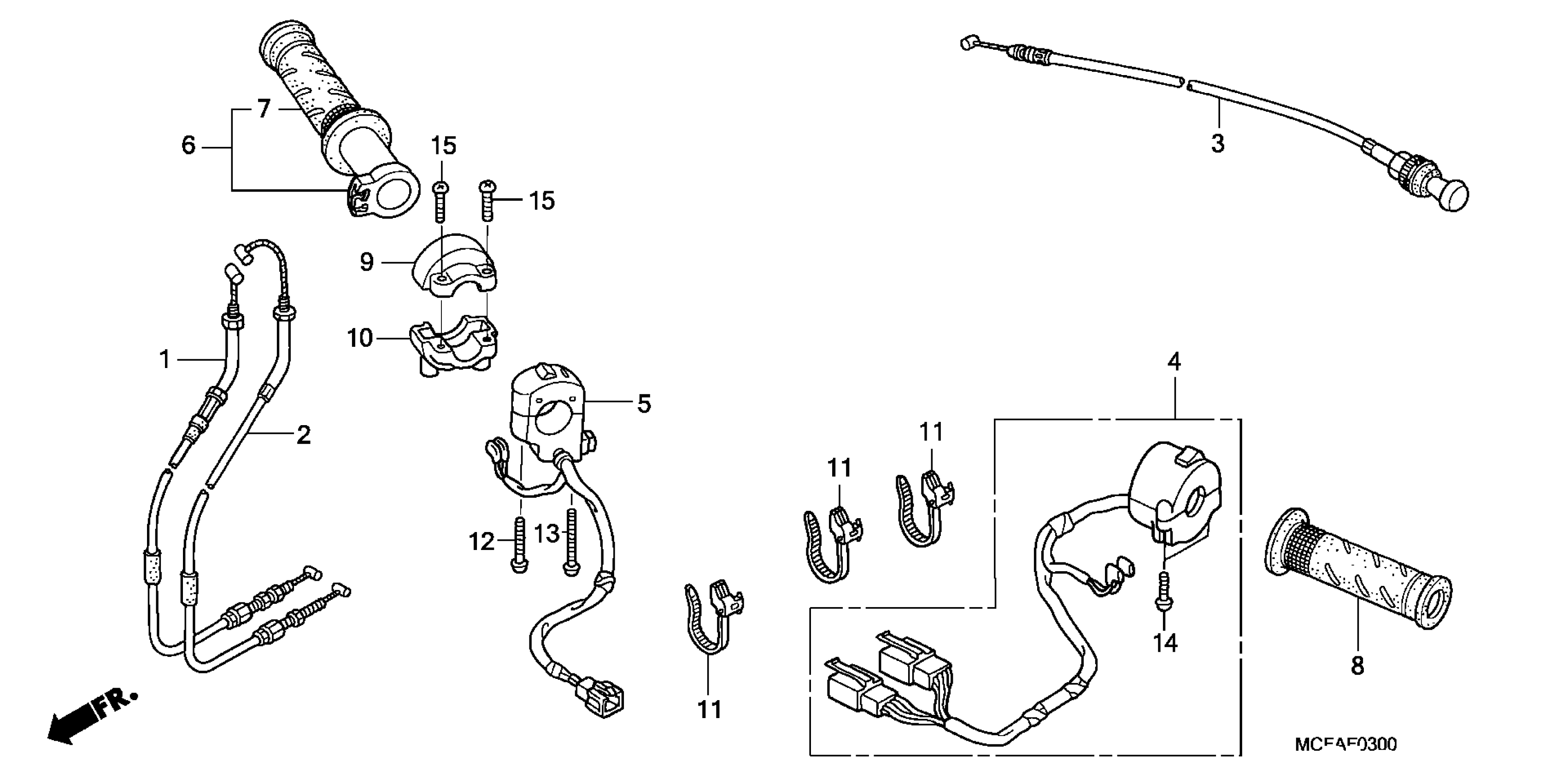

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 SWITCH + CABLE Diagram

CABLE A, THROTTLE

17910-MCF-D31

$39.46

CABLE B, THROTTLE

17920-MCF-D31

$39.46

CABLE, CHOKE

17950-MCF-000

Unavailable

SWITCH SET, TURN SIGNAL

35020-MCF-670

Unavailable

SWITCH ASSY., STARTER STOP

35130-MCF-A60

$53.88

GRIP ASSY., THROTTLE

53140-MCF-000

$34.59

GRIP, R. HANDLE

53165-MY9-890

Unavailable

GRIP, L. HANDLE

53166-MY9-890

$18.20

HOUSING, THROTTLE (UPPER)

53167-KY1-003

Unavailable

HOUSING, THROTTLE (LOWER)

53168-KY1-003

Unavailable

BAND, WIRE

90650-KV6-003

$3.12

SCREW, PAN (4X32)

93500-04032-0G

$1.49

SCREW, PAN (4X45)

93500-04045-0G

$1.49

SCREW, PAN (5X20)

93500-05020-0G

$1.49

SCREW, PAN (5X22)

93500-05022-0G

$1.49
