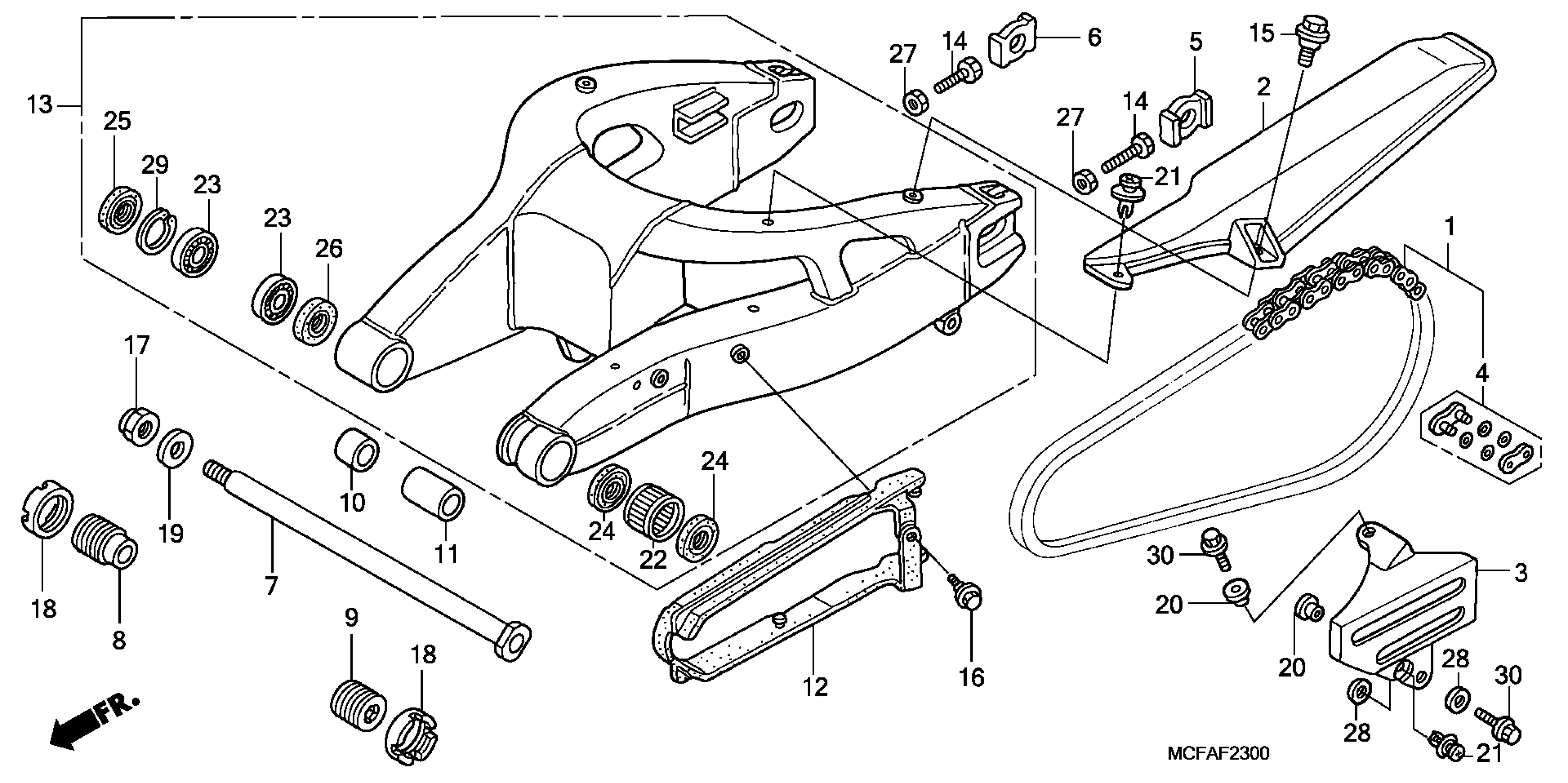

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 SWINGARM Diagram

#

Description
Price

1

CHAIN SET, DRIVE (DID50 102-120L) (DAIDO)

06405-MCF-P00

Unavailable

1

CHAIN SET, DRIVE (RK50-102-120L) (RK EXCEL)

06405-MCJ-000

Unavailable

2

CASE A, DRIVE CHAIN

40510-MCJ-000

$68.41

3

CASE B, DRIVE CHAIN

40520-MCF-D30

Unavailable

4

MASTER LINK (DID)

40545-MCF-003

Unavailable

4

MASTER LINK (RK EXCEL)

40545-MCJ-005

$7.84

5

COLLAR, L. RR. WHEEL AXLE

42305-MCF-000

Unavailable

6

COLLAR, R. RR. WHEEL AXLE

42306-MCF-000

Unavailable

7

BOLT, SWINGARM PIVOT

52101-MCF-D30

Unavailable

8

BOLT, R. SWINGARM PIVOT ADJUSTING

52108-MCF-D30

Unavailable

9

BOLT, L. SWINGARM PIVOT ADJUSTING

52109-MCF-D30

$16.61

10

COLLAR, R. SWINGARM PIVOT DISTANCE

52142-MCF-D30

Unavailable

11

COLLAR, L. PIVOT DISTANCE

52143-MCF-D30

Unavailable

12

SLIDER, CHAIN

52170-MCF-D30

$68.55

13

SWINGARM SUB-ASSY. This part replaces 52200-MCF-A20.

52200-MCF-D30

Unavailable

14

BOLT, HEX. (8X50)

90106-MCF-D00

$2.43

15

BOLT, FLANGE (6MM)

90113-MAS-E00

$2.48

16

BOLT, CHAIN SLIDER

90130-MCJ-750

$3.06

17

NUT, U (18MM) This part replaces 90305-MBB-D40.

90306-MCS-G00

$7.13

18

NUT, LOCK (36MM)

90354-MCF-D00

$13.59

19

WASHER (18X32X2)

90401-KZ4-890

$4.48

20

WASHER, NUMBER BRACKET SETTING

90402-GB0-900

$3.52

21

CLIP, BODY COVER

90683-GR1-003

$2.92

22

BEARING, NEEDLE

91071-MR7-003

$25.68

23

BEARING, RADIAL BALL (20X37X9)

91072-MR7-003

$18.01

24

DUST SEAL (28X37X4)

91202-MR7-003

$6.36

25

DUST SEAL (26X37X5)

91214-MR7-003

$6.99

26

DUST SEAL (27X34X4)

91261-KZ3-861

$7.79

27

NUT, HEX. (8MM)

94001-08000-0S

$1.49

28

WASHER, PLAIN (6MM)

94101-06700

$1.49

29

CIRCLIP (INNER) (37MM)

94520-37000

$2.18

30

BOLT, FLANGE (6X18)

96001-06018-07

$1.49
