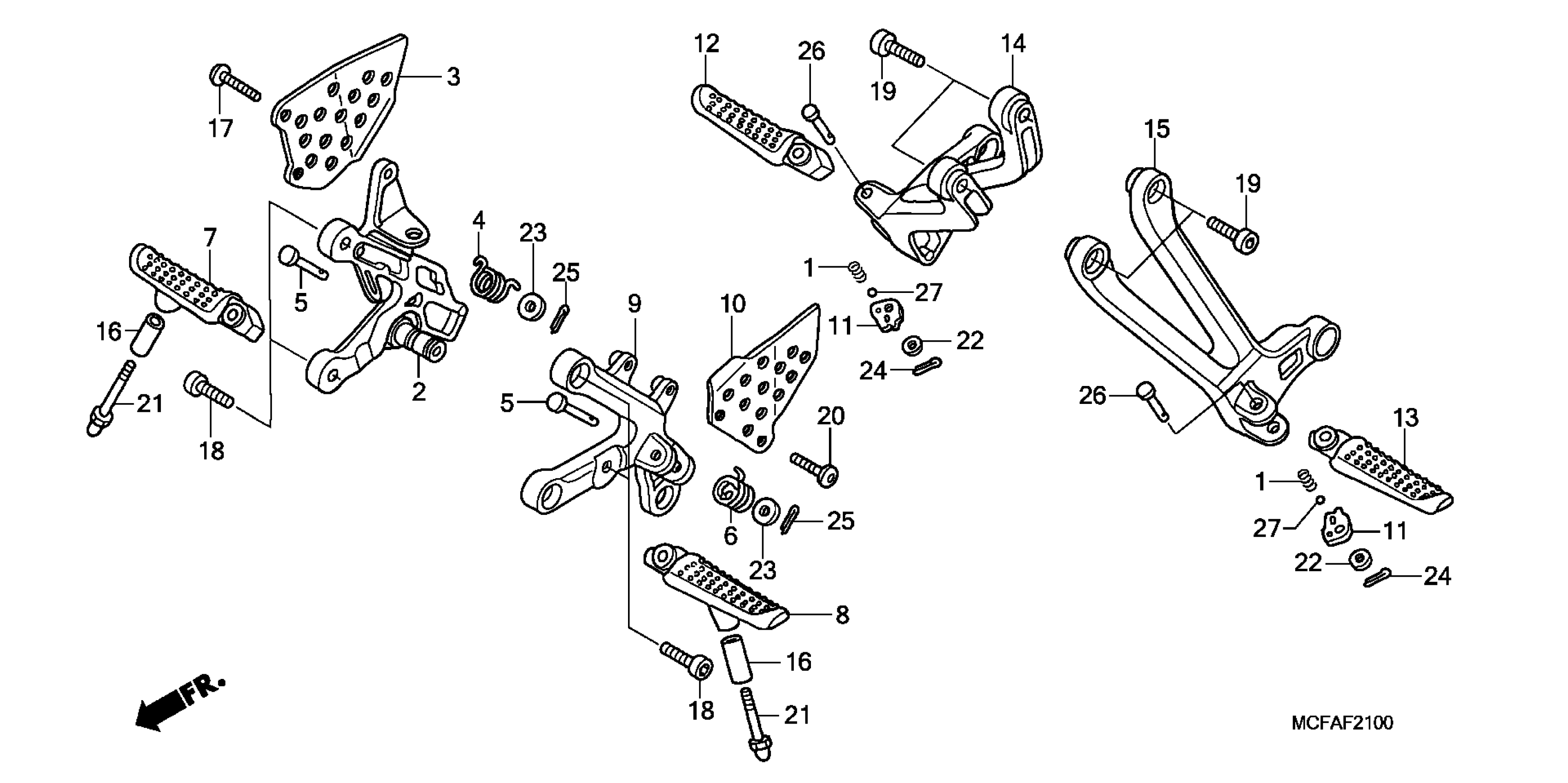

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

2

HOLDER, R. MAIN STEP

50600-MCF-010

Unavailable

3

GUARD, R. STEP

50607-MCF-D30

Unavailable

4

SPRING, R. STEP RETURN

50617-445-840

$5.44

5

PIN, STEP BAR

50639-ML0-010

$5.22

6

SPRING, L. STEP RETURN

50644-445-840

$5.44

7

ARM, R. MAIN STEP

50660-MCF-000

Unavailable

8

ARM, L. MAIN STEP

50665-MCF-000

Unavailable

9

HOLDER, L. MAIN STEP

50700-MCF-010

Unavailable

10

GUARD, L. STEP

50707-MCF-D30

Unavailable

11

PLATE, PILLION STEP CLICK

50718-KT7-761

$4.01

12

BAR, R. PILLION STEP (COO) This part replaces 50720-KT7-761.

50720-K26-305

$46.30

13

BAR, L. PILLION STEP (COO) This part replaces 50730-KT7-761.

50730-K26-305

$46.30

14

HOLDER, R. PILLION STEP

50750-MCF-010

Unavailable

15

HOLDER, L. PILLION STEP

50760-MCF-010

Unavailable

16

COLLAR, STEP (LOWER)

51486-MCF-000

$10.07

17

BOLT, SPECIAL (6X25)

90085-MBW-000

$3.67

18

BOLT, SOCKET (8X25)

90105-MBW-000

$3.36

19

BOLT, SOCKET (8X21)

90107-MCF-000

$2.51

20

SCREW, PAN (6X14)

90118-MR1-000

$3.10

21

BOLT, SPECIAL CAP (6MM)

90176-MCF-000

$8.74

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

WASHER, PLAIN (8MM)

94102-08000

$1.49

24

PIN, SPLIT (1.6X12)

94201-16120

$1.49

25

PIN, SPLIT (2.0X15)

94201-20150

$1.49

26

PIN C, PILLION FOOTPEG

95015-83000

$2.41

27

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
